VLANs on Bridge interface

Hello,

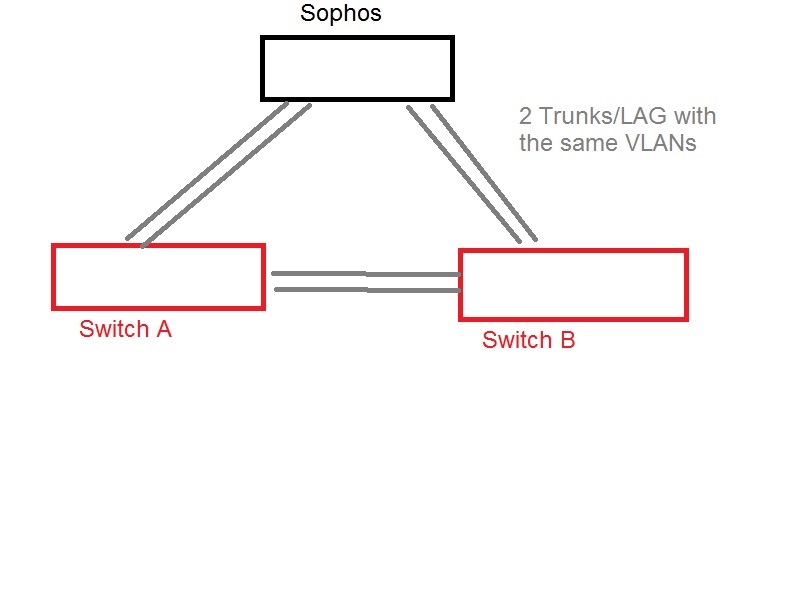

i want to build the following scenario. I have one Sophos XG Firewall and have 2 Switch which are my core switches for the company. The Sophos should hold the gateway function of all vlans. So i guess i build two trunks with 2 links in it and put this 2 trunks in a bridge. After that i want to create my vlans on the sophos and link it to the bridge. But that didnt work. I only can assign one address to the bridge. on the cli i can change the VLAN but i find not an option to add some other vlans.

with an UTM this scenario is not a problem. Can anyone help me??

This thread was automatically locked due to age.

0 Aditya Patel over 8 years ago

HI MichaelWalter,

Could you answer a few questions before I could post an answer.

Switch A and Switch B , do they have different sets VLANs or used a Redundancy ?

Why would you want to Bridge the two interfaces , any configuration you want to achieve ?

Thanks and Regards

Aditya Patel | Network and Security engineer.
Cancel
Vote Up 0 Vote Down

Cancel
0 MichaelWalter over 8 years ago

this scenario is a HA solution - so both switch have the same vlans.

i try to explain why i want to bridge:

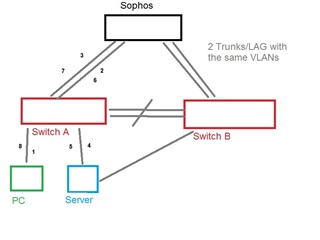

e.g. i have a vlan 10 for server and a vlan 100 for clients. the trunk link between the 2 switches are blocked by STP. The condition is, that every traffic between the vlans must go through the firewall. Now if a client access the server the traffic have to pass the Firewall. in this behaviour i have a maximum of 8 "hops" - see below

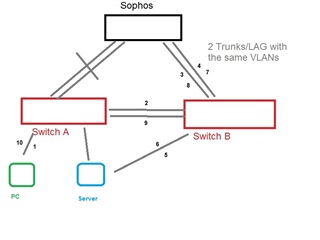

if the trunk between the sohpos and a switch exist i have a maximum of 10 "hops".

i hope this is recommended solution.

thx michael
Cancel
Vote Up 0 Vote Down

Cancel
0 lferrara over 8 years ago in reply to MichaelWalter

Michael,

have a look at this thread first to know how XG works in transparent Bridge. https://community.sophos.com/products/xg-firewall/v16beta/f/sfos-v16-beta-feedback/79102/xg-and-vlans-on-bridges---feedback-needed Also even inside the KB there is another article on XG Bridge Limitations.
Cancel
Vote Up 0 Vote Down

Cancel
0 Aditya Patel over 8 years ago in reply to MichaelWalter

HI MichaelWalter,

I see, this scenario would work on UTM 9 , I have tested on XG and found that this implementation does not work and there is an existing BUG for the same NC-2133 and may consider in the future release. My suggestion is that you raise a Service request and so your issue would be linked with this BUG ID so it would indicate the requirement for the next release.

Thanks and Regards

Aditya Patel| Network and Security Engineer.
Cancel
Vote Up 0 Vote Down

Cancel
0 MichaelWalter over 8 years ago in reply to Aditya Patel

thanks for your answers. I hope too that this limitation works as soon as possible in the XG release.
