IPSec connection not used

Question

Hi all,
 i have a ipsec-connectin, but packets didn't use these:
 XGS2100_RL01_SFOS 19.0.1 MR-1-Build365# ip route show table 220 192.168.192.1 dev ipsec0 scope link src 192.168.179.254
 XGS2100_RL01_SFOS 19.0.1 MR-1-Build365# ip route show table all default via 192.168.178.1 dev Port2 table wanlink1 proto static src 192.168.178.2 prohibit default table wanlink1 proto static metric 1 default via 192.168.178.1 dev Port2 table gw1 proto static prohibit default table gw1 proto static metric 1 default dev ipsec0 table routeipsec0 scope link default via 192.168.178.1 dev Port2 table multilink proto static 192.168.192.1 dev ipsec0 table 220 scope link src 192.168.179.254 10.0.0.0/8 via 192.168.92.114 dev Port1 proto zebra 10.0.1.0/24 dev PortMGMT proto kernel scope link src 10.0.1.1 linkdown 172.16.0.0/12 via 192.168.92.114 dev Port1 proto zebra 192.168.0.0/16 via 192.168.92.114 dev Port1 proto zebra 192.168.92.112/28 dev Port1 proto kernel scope link src 192.168.92.113 192.168.178.0/24 dev Port2 proto kernel scope link src 192.168.178.2

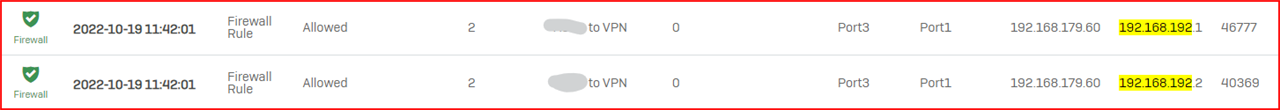

 but packets use the other LAN-Port (Port1) but not the IPSec connection:

console> system route_precedence show Routing Precedence: 1. VPN routes 2. SD-WAN policy routes 3. Static routes console>

dirkkotte · Accepted Answer

a Workaround is helping ... i removed the 192.168.0.0/16 route to the LAN devices ... and create some more specific routes for currently needed connections
 ... now the IPSec destination is being reached .... but this is not really a solution i think.
 PS: i have a distance of "0" within the routing entries. ... is this ok?

dirkkotte · Answer

Found the following:
 https://support.sophos.com/support/s/article/KB-000038775?language=en_US
 ".... If for example, a particular subnet is accessible over an IPSEC VPN and is also covered by a static route directed to a router in the LAN zone, then the route_precedence command cannot be used to control which route is used."
 Really great ...

 A known issue:

LuCar Toni · Answer

Route Based is not a Workaround. It is a better technology.
 And yes, this is not needed in Route Based as well.
 Policy Based is an old, flunky technology, which has plenty of downsides.
