Site to Site Connection Slow on XGS116 and XGS2300 with big Files

Question

Hi there,
 I have a site to site Connection from a Site A XGS116 1GB/300MBit to a Site B XGS2300 1GB/1GB.
 First i use encryption IKEv2. With this Configuration it was not possible to work with the Shares.
 Click on a File with about 300 MB, a blue Circle appears and nothing happens. (IPS deactivated)
 After hours of research, i found out, that if i lower the encryption to unsecure MD5, working is possible.
 When i download a File, its downloading constantly with 15MB/s. Before a Download was not possible, Speed began with 15MB/s and lower down to 0.
 Now MD5 is unsecure.
 Going back to IKEv2 and turning off the IPSec Accelaration and i have 15MB/s back. So far so good. How can i speed up this site to site?
 The MTU is now 1500. If i make a ping to Site A from the Server, i get a Packet fragmented. If i ping with Ping 192.168.40.254 -f -l 1378 i get an answer.
 Do you think it will speed up the Connection if i lower the MTU on both Sites to 1378 or has anyone another clue?
 Sophos Support says my Hardware is to low, but it is only 1 Site to Site in both firewalls, i cannot believe this.

 Thanks for your help
 Markus

MayurMakvana · Accepted Answer

Hello,
 Do you have any tunnel with the remote gateway set as any (*)? If so, in that case you have to use the same preshared key to make it work.

Markus Straubinger · Answer

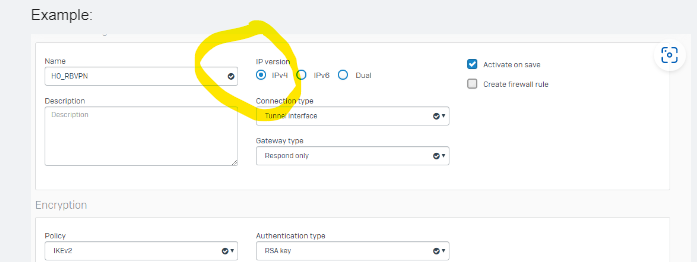

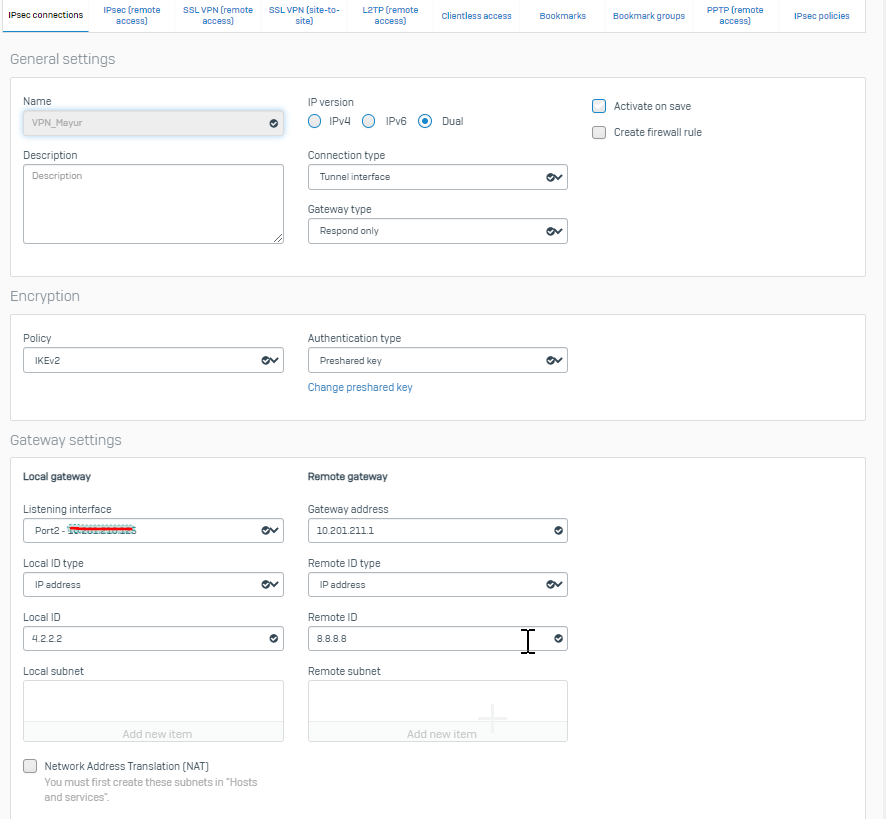

Ha now it works great! Thank you again. You have to choose Dual not IP4 like as in the Sophos Docu :-)

MayurMakvana · Answer

Hello Markus,
 Greetings!
 If you have captured the tcpdump on destination IP address, while file transfer and if you have observed that server replied with the lower MSS. Certainly, lowering down the MTU/MSS of the LAN interface would help! You will need to lower down the MTU and MSS of the interface for which the network used in IPSec!

kranthi yadlapudi · Answer

What firmware version are you running on the firewall, Some other things to note down here, Please see if IPsec acceleration is enabled on both the appliances :
 console> system ipsec-acceleration show IPsec acceleration status: turned on
 Also AES 128 GCM ciphers are less CPU intensive than that off the AES 250 CBC they should yeild much better performance. Also is there a NAT involved in either side WAN interface having a private IP ? or are you terminating your tunnel on an alias interface ? if yes try it on the parent interface You can also change to IKEv1
 is there a LAG in the picture on the WAN interface on either sides ?
 -Cheers,
 Kranthi
