Lan - lan source nat

nedal tomeh

how can i forward traffic from lan 1 to lan 2 with nat ?

i want all traffic (many networks ) forwarded from interface 1 (lan 1) to interface 4 (lan 2) to translate from the source network address to interface ip (interface 4)and pass to the internal network (lan 2) with translated ip

already i configured fw rules between 2 lans source any and destination any

just i want to translate all traffic to interface ip (one ip)

thanks you



This thread was automatically locked due to age.
Parents
  • 0

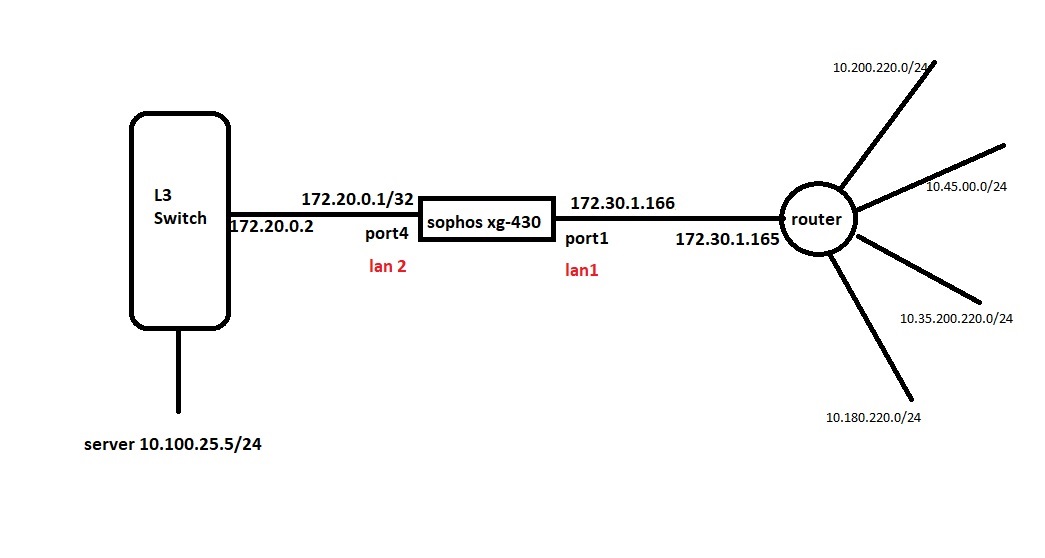

    Thanks for inserting the diagram!

    If the Router in LAN 1 forwards all the traffic from behind it to port 1 on the Sophos Firewall with a source IP of 172.30.1.165, then you only need an SNAT that changes the source in packets from 172.30.1.165 to 172.20.0.1.

    Cheers - Bob
    PS If your question is about XG instead of UTM on an SG, one of us will move this thread to that community.

  • 0 in reply to BAlfson

    There is no nat between the router and sophos xg 430 . Traffic forwarded to sophos in origenal ip .

    I want to translate all networks to 172.20.0.1 when forwarded from sophos to l3 switch

    And 2 lans reach each other (10.100.25.5 and all networks)

    Thank you

  • 0 in reply to nedal tomeh

    Since this is a question about XG, I'll move this thread over there.

    Is all of the traffic from LAN 1 going through the XG going only to LAN IPs or does that also include traffic outbound to the internet?

    Cheers - Bob

  • 0 in reply to BAlfson

    Yes all traffic going only to lan

    To server 10.100.25.5 (zone lan) not dmz zone

    No internet or public ip in my cae

    Thanks

  • 0 in reply to nedal tomeh

    Any suggestions to solve my case ?

  • 0 in reply to nedal tomeh

    Hello,
    1. SG or XG?
    2. what exactly is the problem? ...you didn't reach a network?
    Because L3 Switch and router do routing ... do you configured these devices as gateway to the networks behind them?
    Would be good to see your rules.

  • 0 in reply to dirkkotte

    hello,

    xg 430

    simply i want to translate all coming network traffic from the router to Sophos interface IP 172.20.1

    then forwarded to L3 switch then server 10.100.25.5

    source network 10.200.220.0, 10.35.220.0 , 10.45.220.0 ........

    destination network 10.100.25.5

    translated source network to 172.20.0.1 while source network access destination server

    thanks

  • 0 in reply to nedal tomeh

    NAT Looks good so far.
    You need a Firewall rule allowing this traffic.
    (try Any to 10.100.25.5 first)

    PS: Your interface ip isn't 172.20.0.1/32 (like in your picture) but 172.20.0.1/24 ...!?

    Enable logging within firewall-rules and Check logviewer. Set free-text-search-filter to 10.100.25.5

    please show us your "source network 10.200.220.0, 10.35.220.0 , 10.45.220.0" - definitions ... or try "any" for a short time instead

    L3-Switch and Router use Firewall as default gateway?

  • 0 in reply to dirkkotte

    dear ,

    (try Any to 10.100.25.5 first) ... done

    PS: Your interface IP isn't 172.20.0.1/32 (like in your picture) but 172.20.0.1/24 ...!? you're right my interface port 1

    and IP 172.30.1.66

    L3-Switch and Router use Firewall as the default gateway? the default gateway for network  10.100.25.0/24 on different firewall connected between the L3 switch and server.

    so tomorrow I will test and inform you
    thanks alot

  • 0 in reply to nedal tomeh
    nedal tomeh said:

    PS: Your interface IP isn't 172.20.0.1/32 (like in your picture) but 172.20.0.1/24 ...!? you're right my interface port 1

    and IP 172.30.1.66

    yes ... but at Port 4 you paint a 32 Bit network-mask ... i think you have /24 here ...

  • 0 in reply to dirkkotte

    172.30.1.166/30

    sir

    just i have a question plz

    is xg 430 support translates all networks hosts (10.200.220.1,.....) to a single IP or interface IP and forwards traffic to port 1

    (10.100.25.5) ?

    which means server 10.100.25.5 accessed just by one IP from all networks

  • 0 in reply to nedal tomeh

    Yes. This is how internet access works ... mostly.

    There may be an error in your NAT definition... a screenshot would be helpful.

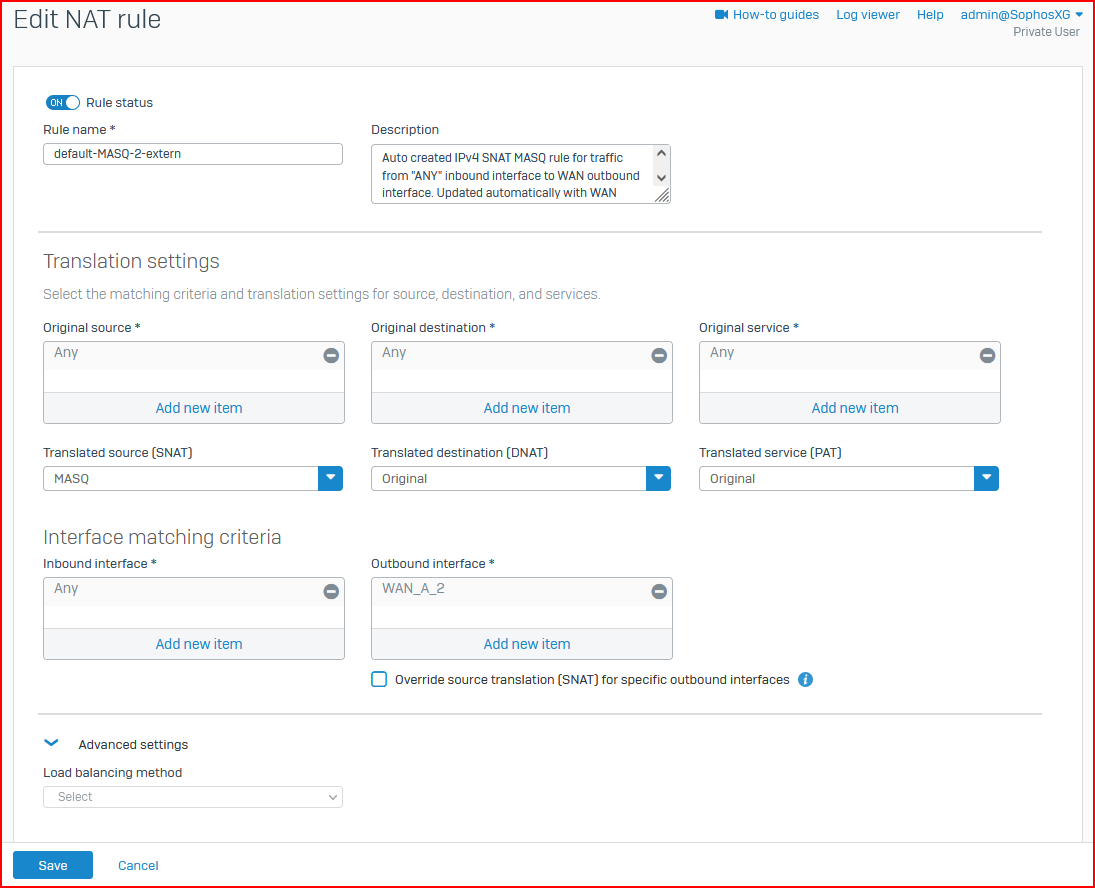

    Here you can see my "Masquerade all at one interface" rule
