Issue with VLAN between 2 XG firewalls with V19 home edition

Where did you do the packet capture? One the firewalls? Webadmin or CLI?

Maybe there is a routing issue? Try doing the packet capture on Webadmin and check for the routes, if the packet arrive but no outbound packet, check the drop packet capture on the affected firewall.

Hello,

I did the packet capture on XG1 directly through the Unix shell. Given the various tests I made I don't think it is a L3 issue but rather a L2 issue (desktop can access the Internet flawlessly for instance). drop packet capture doesn't provide any information on concerned trafic.

Best Regards

Matthieu

The issue is fixed with the latest firmware but in your case, it is not working can you reboot the firewall with fsck-on-nextboot from Sophos XG SSH CLI console and check it again? Have you contacted Sophos Support Team with the case id?

console>system fsck-on-nextboot show
console>system fsck-on-nextboot on

Regards

Hello,

The reboot with fsck on doesn't solve the issue. I made some complimentary tests and found interesting results when pinging the other way around, from server to desktop

If I run tcpdump icmp on XG1 (on server side, source of ping) : it solves the issue as long as tcpdump runs.

If I run tcpdump icmp on XG2 (on desktop side, target of ping) : it does'nt solve the issue

This behavior allowed me to take a tcpdump on XG2 for both a working scenario (tcpdump running on XG1) and a non working scenario (tcpdump not running on XG1). Here are the results

tcpdump output on XG2 while tcpdump was also running on XG1 (working scenario)

SFVH_SO01_SFOS 19.0.1 MR-1-Build365# tcpdump icmp
tcpdump: verbose output suppressed, use -v or -vv for full protocol decode
listening on any, link-type LINUX_SLL (Linux cooked v1), capture size 262144 bytes
10:23:33.711770 Port1, IN: ethertype IPv4, IP server > desktop: ICMP echo request, id 1, seq 62, length 40
10:23:33.711770 Port1.100, IN: IP server > desktop: ICMP echo request, id 1, seq 62, length 40
10:23:33.712112 Port2, OUT: IP server > desktop: ICMP echo request, id 1, seq 62, length 40
10:23:33.712444 Port2, IN: IP desktop > server: ICMP echo reply, id 1, seq 62, length 40
10:23:33.712537 Port1.100, OUT: IP desktop > server: ICMP echo reply, id 1, seq 62, length 40
10:23:33.712543 Port1, OUT: ethertype IPv4, IP desktop > server: ICMP echo reply, id 1, seq 62, length 40
10:23:34.725940 Port1, IN: ethertype IPv4, IP server > desktop: ICMP echo request, id 1, seq 63, length 40
10:23:34.725940 Port1.100, IN: IP server > desktop: ICMP echo request, id 1, seq 63, length 40
10:23:34.726117 Port2, OUT: IP server > desktop: ICMP echo request, id 1, seq 63, length 40
10:23:34.726604 Port2, IN: IP desktop > server: ICMP echo reply, id 1, seq 63, length 40
10:23:34.726669 Port1.100, OUT: IP desktop > server: ICMP echo reply, id 1, seq 63, length 40
10:23:34.726673 Port1, OUT: ethertype IPv4, IP desktop > server: ICMP echo reply, id 1, seq 63, length 40

In this trace we can see two successful ping requests going through XG2, with a sequence like PORT1 IN => Port1.100 IN=>Port2 OUT=>Port2 IN=>Port1.100 OUT=>Port1 OUT

Now the tcpdump output on XG2 while tcpdump was not running on XG1 (non-working scenario)

10:22:27.215738 Port1, IN: ethertype IPv4, IP server > desktop: ICMP echo request, id 1, seq 58, length 40
10:22:27.215738 Port1.100, IN: IP server > desktop: ICMP echo request, id 1, seq 58, length 40
10:22:27.216043 Port2, OUT: IP server > desktop: ICMP echo request, id 1, seq 58, length 40
10:22:27.216539 Port2, IN: IP desktop > server: ICMP echo reply, id 1, seq 58, length 40
10:22:27.216656 Port1.100, OUT: IP desktop > server: ICMP echo reply, id 1, seq 58, length 40
10:22:27.216667 Port1, OUT: ethertype IPv4, IP desktop > server: ICMP echo reply, id 1, seq 58, length 40
10:22:28.238536 Port1, IN: IP server > desktop: ICMP echo request, id 1, seq 59, length 40
10:22:32.943130 Port1, IN: IP server > desktop: ICMP echo request, id 1, seq 60, length 40
10:22:37.942102 Port1, IN: IP server > desktop: ICMP echo request, id 1, seq 61, length 40

We see that the first ping request works and is similar to the previous scenario. But the following requests fail and we only see the Port1 IN, and never the next steps of the sequence. It looks like XG2 never pass the Port1 IN packet to the Port1.100 interface

Moreover, when downloading the trace from XG2 and seeing it in Wireshark it seems that with the non working scenario, the "Port1 IN" request of the first PING request arrives with the appropriate 802.1Q VLAN tag from XG1, but  "Port1 IN" request of the following PING failing requests arrive untagged, which could explain that it breaks the sequence.

Hope this helps understand the issue

BTW am I allowed to open a support case with the home licence ?

Best Regards

Matthieu

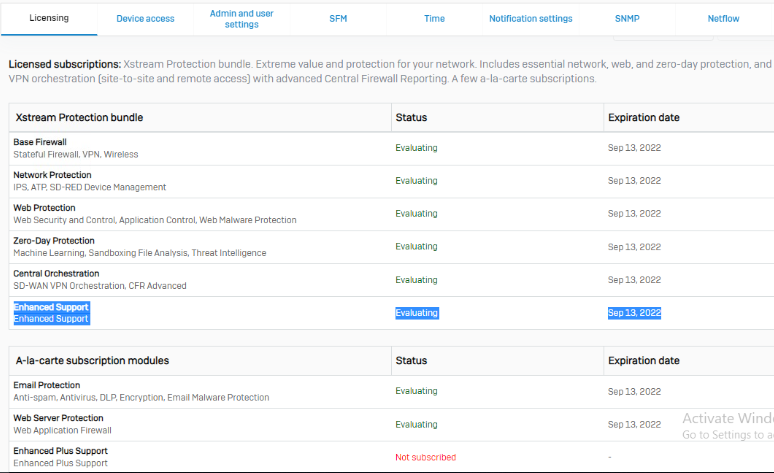

If you have Enhanced Support you can raise a case on https://support.sophos.com/support/s/?language=en_US#t=AllTab&sort=relevancy

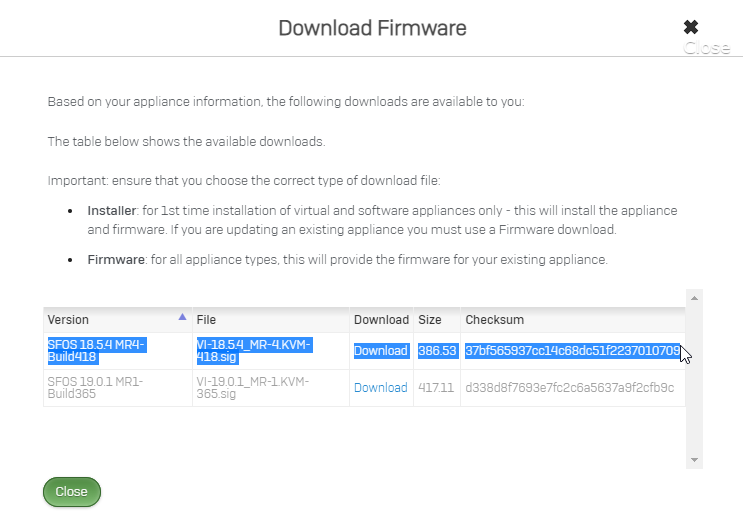

As you said earlier it was working with version 18, the same version is available on licensing portal if you have the backup from version 18 where it was working you can upgrade to v18 and restore the backup ?

https://docs.sophos.com/nsg/sophos-firewall/18.5/Help/en-us/webhelp/onlinehelp/AdministratorHelp/BackupAndFirmware/Firmware/FirmwareDownloadFirmware/index.html#download-firmware

Please make sure the backup is from version 18.5.4 MR4-Build418 not from later version

Regards

Sounds like you have a problem with your virtual firewalls.

If you start a tcpdump, essentially the NIC will start to go into the https://en.wikipedia.org/wiki/Promiscuous_mode

If this mode will resolve your issue, it could be a potential driver issue or network issue within your network.

So why is the tagging not working. Who is doing the tagging in your network. It will be hard to prove, if you dont do a dump, if the firewall actually use the tagging or not. But maybe your switch is doing something.

Hello

In my network (home network) VLANs exist only on the XG1-XG2 link. This link uses a direct Ethernet cable between XG1 and XG2. Apart from that, hosts are connected either directly on untagged XG physical ports (members of bridge), or through basic unmanageable Ethernet switches (Netgear GS608). What I see in the trace in my previous post is that after the first successful ping request, XG1 seems to "forget" to tag the next requests sent to XG2.

XG1 and XG2 are not virtual, they are installed on Jetway mini PC fitted with 10 lan ports.

Best Regards

Matthieu

matthieu said:

Jetway mini PC fitted with 10 lan ports.

May I know the current hardware such as Network interface cards, RAM, HDD or SSD, USB pen drive or maybe it is End-of-support and End-of-Life?

Sophos XG works well on tested platforms as per the link: https://docs.sophos.com/nsg/sophos-firewall/18.0/Help/en-us/webhelp/onlinehelp/VirtualAndSoftwareAppliancesHelp/vs_VirtualSoftwareApplianceIntro/index.html

Also refer: https://docs.sophos.com/nsg/sophos-firewall/18.0/Help/en-us/webhelp/onlinehelp/VirtualAndSoftwareAppliancesHelp/SoftwareAppliance/index.html

Regards

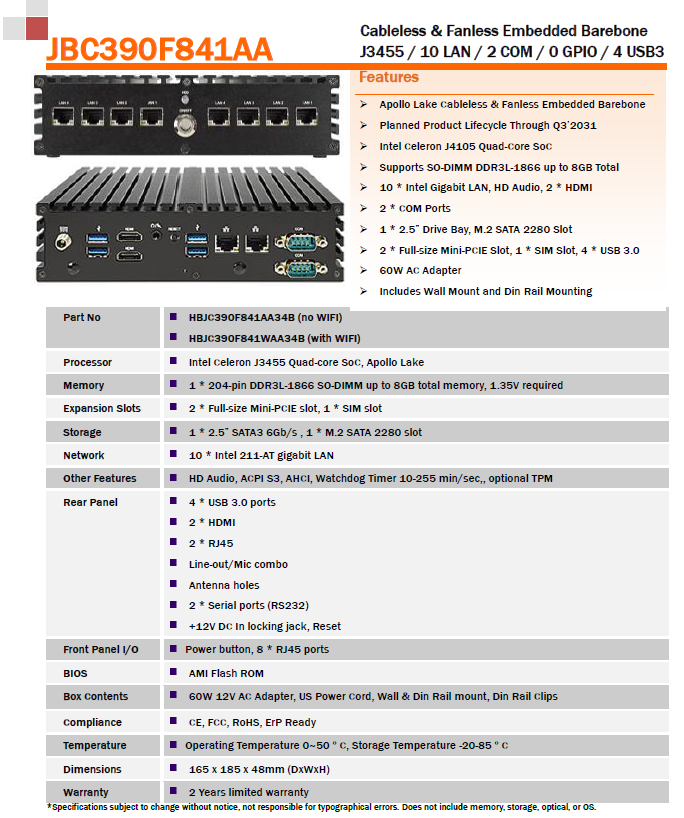

Sure, here's the product sheets below of the mini PC hosting XG1 (XG2 is similar but with Celeron J1900 CPU). XG1 has 8 GB RAM and a Samsung 860 EVO 250GB M2 SSD drive. XG2 has a 256 GB Samsung Serial ATA Samsung SSD and 8 GB RAM too

Hope this helps

In this case, can you check with system firewall-acceleration by turning off from both XG as per the below snapshot and share the result ?

Thanks and Regards

Hi,

I turned off firewall acceleration on both XG and it solved the issue : the ping test succeeds and communications on the shared network between XG1 and XG2 seem to work fine now. So it seems to be a bug in firewall acceleration. I will let firewall acceleration disabled and see if I encounter further issues or not. If it works fine, this workaround seems OK for me since it has unnoticeable performance impact on my home network, so I can wait for a fix. Do I need to open a case to have this issue fixed in a future maintenance release or is it OK through this forum thread ?

Best Regards

Matthieu

Hi matthieu,

Thank you for reporting this. We have already opened a bug and is investigating the issue. For reference it is ID NC-102614.

Hi matthieu,

Thank you for reporting this. We have already opened a bug and is investigating the issue. For reference it is ID NC-102614.
