Help with IPSec site-to-site tunnel setup - connection good but no traffic

Hi Sean Rome

Please share current settings System --->Admininstration -->Device Access, Ping is tick mark under VPN Zone?

Start tcpdump console>tcpdump 'host <Destination IP address> and proto ICMP

Please go to MONITOR & ANALYZE-->Diagnostics-->Packet Capture and click on Configure 'host <Destination IP address> and proto ICMP  from GUI

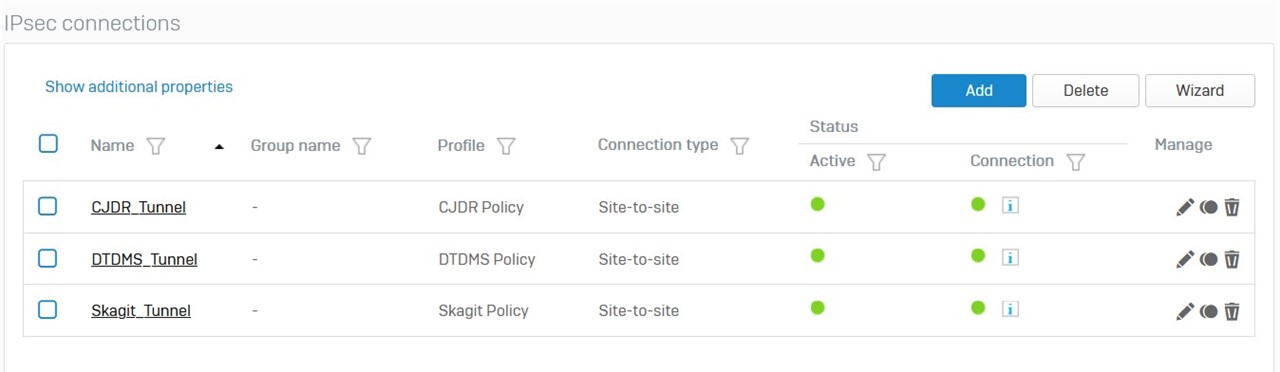

Please go to MONITOR & ANALYZE->Current activities-->IPSec Connection and share the status

Thanks and Regards

Thank you! I will take a capture this evening.

Sure, also check esp packet status as per below command

console>tcpdump 'proto 50 or 51

Regards

Thanks, Sean Rome  for updating the status, issue got resolved by deleting the IPSec VPN tunnel and re-creating  IPSec VPN tunnel back  by Sean Rome  later we found issue with the firmware version  SFOS 19.0.0 GA-Build317 running on Sophos XG

The issue is fixed with the latest firmware version SFOS v19 MR1 Build 365 you will update the firmware and monitor it further

Below the link is Sophos release note :

https://docs.sophos.com/releasenotes/index.html?productGroupID=nsg&productID=xg&versionID=19.0

Firmware link: https://community.sophos.com/sophos-xg-firewall/b/blog/posts/sophos-firewall-v19-mr1-re_2d00_release-build-365-is-now-available

Thanks and Regards

Thanks, Sean Rome  for updating the status, issue got resolved by deleting the IPSec VPN tunnel and re-creating  IPSec VPN tunnel back  by Sean Rome  later we found issue with the firmware version  SFOS 19.0.0 GA-Build317 running on Sophos XG

The issue is fixed with the latest firmware version SFOS v19 MR1 Build 365 you will update the firmware and monitor it further

Below the link is Sophos release note :

https://docs.sophos.com/releasenotes/index.html?productGroupID=nsg&productID=xg&versionID=19.0

Firmware link: https://community.sophos.com/sophos-xg-firewall/b/blog/posts/sophos-firewall-v19-mr1-re_2d00_release-build-365-is-now-available
