Use Sophos XG v18 as load-balancer for kubernetes and NTP

Chaker Ham

I have a XG Sophos firewall

I have a Kubernetes cluster with 3 master nodes.

I have tow NTP local servers

All server are configured in my internal network.

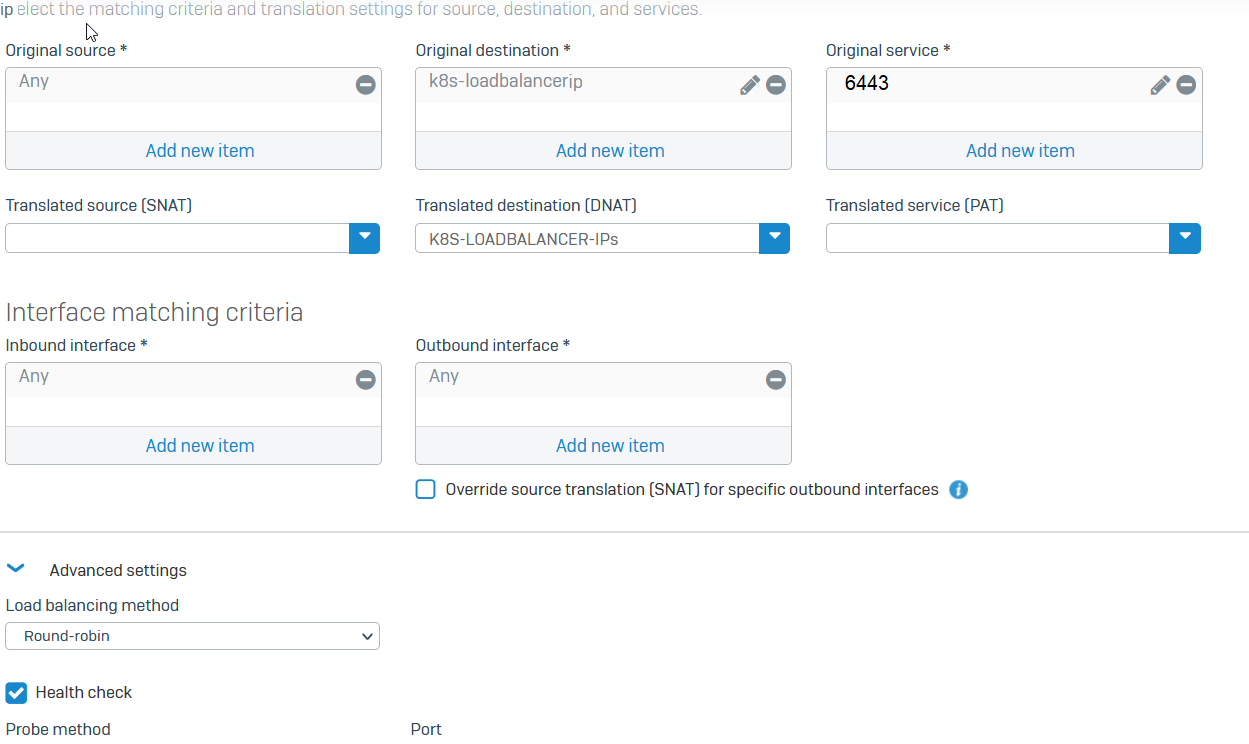

I want to use sophos as a load-balancer, I create tow NAT Rules: one for the Kubernetes and one for the NTP but it doesn't work.



This thread was automatically locked due to age.
  • 0

    Hi Chaker Ham

    Thank you for reaching out to the community, please check by

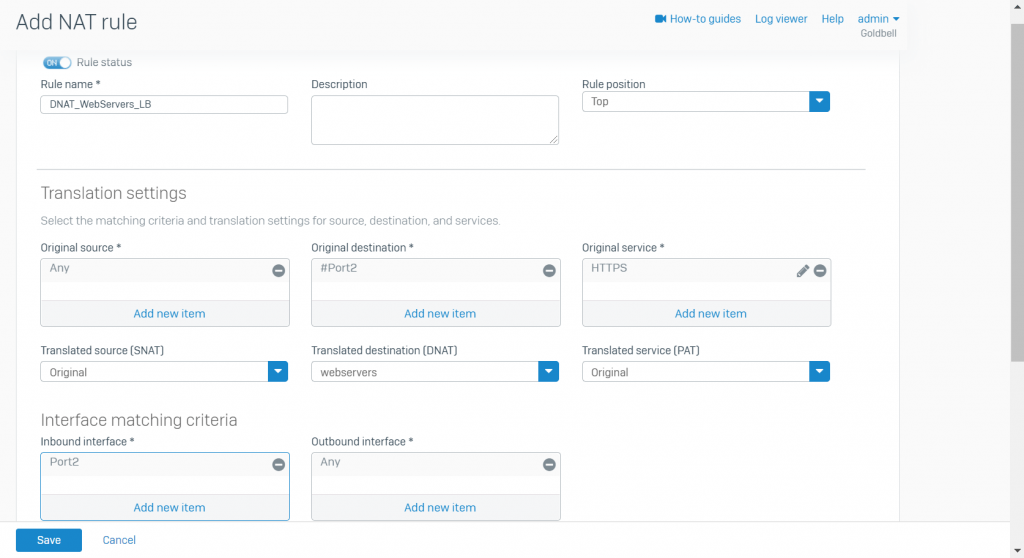

    • In Original destination: Choose WAN port as per the snapshot (type #port B for example ) as given below

    Also, make sure DNAT rule has matching criteria as below :

    • In Rule position: Choose Top
    • In Original source: Choose Any
    • In Original destination: Choose WAN port
    • In Original service: Choose Service
    • In Translated source (SNAT): Choose Original
    • In Translated destination (DNAT): Choose webservers which was created before
    • In Translated service (PAT): Choose Original
    • In Inbound interface: Choose WAN port
    • In Outbound interface: Choose Any

    Please check packet flow under MONITOR & ANALYZE || Diagnostics || Packet Capture share the output

    Thanks and Regards

    "Sophos Partner: Infrassist Technologies Pvt Ltd".

    If a post solves your question please use the 'Verify Answer' button.

  • 0 in reply to Bharat J

    Thank you for you replay,

    I still confused, Because all my servers are provided for internal use why did I need to to specify the wan port?

    And where did I need to specify the cluster IP?

    Best Regards,

    Chaker

  • 0 in reply to Chaker Ham

    Hi Chaker Ham

    If you want to load balance the internal server for internal use you can specify with Alias IP on LAN and use under Original destination, please check the traffic flow with help of packet flow under MONITOR & ANALYZE || Diagnostics || Packet Capture share the output

    Thanks and Regards

    "Sophos Partner: Infrassist Technologies Pvt Ltd".

    If a post solves your question please use the 'Verify Answer' button.
