Hi All, Hoping someone has a fix or knows the issue.
EU has a new XGS2100 with a 4port 10Gb card to replace an SG210 which is used for a secure dept internally. There is a functioning 2 port LACP interface to a Multi-Chassis LAG on 2 x Aruba CX 8320 switches. Swapped it over to the new configured LAG on the XGS2100 and it does not come up.. The 2 ports associated come up on the 8320 but the LAG does not become active and is unreachable.
The config on both the core 8320's is
interface lag 51 multi-chassis
no shutdown
description TESTING LINK TO XGS2100
no routing
vlan trunk native 1
vlan trunk allowed all
lacp mode active
spanning-tree loop-guard
int 1/1/40
no shut
lag 51

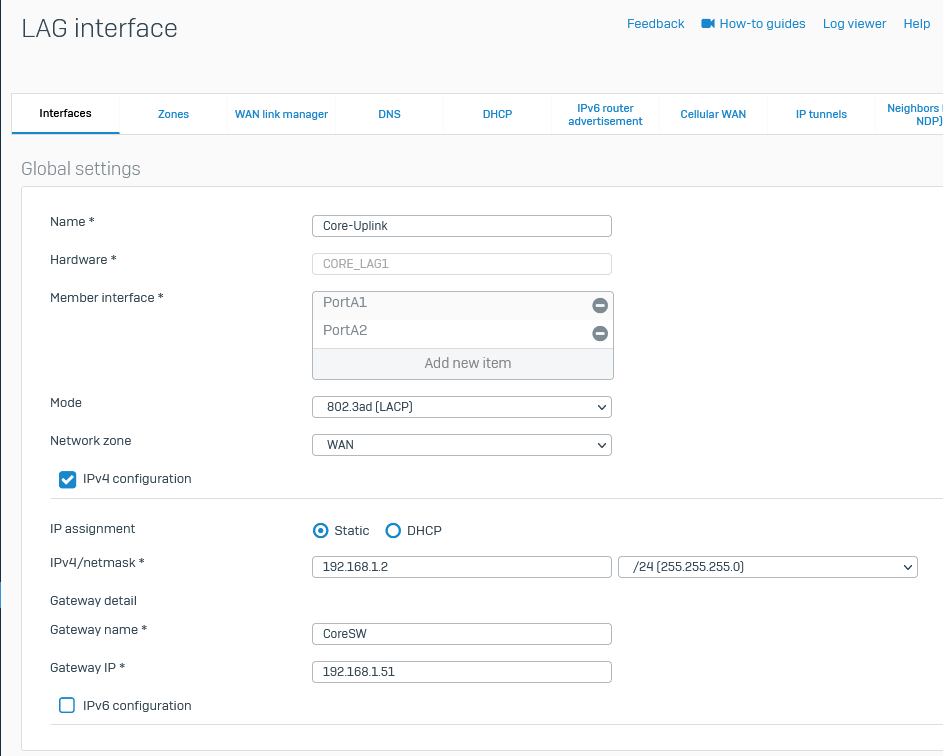

The LACP config on the Sophos XGS2100 is
Thanks in advance...
