XG Firewall DPI

Nikita Baranov

Hello everyone,

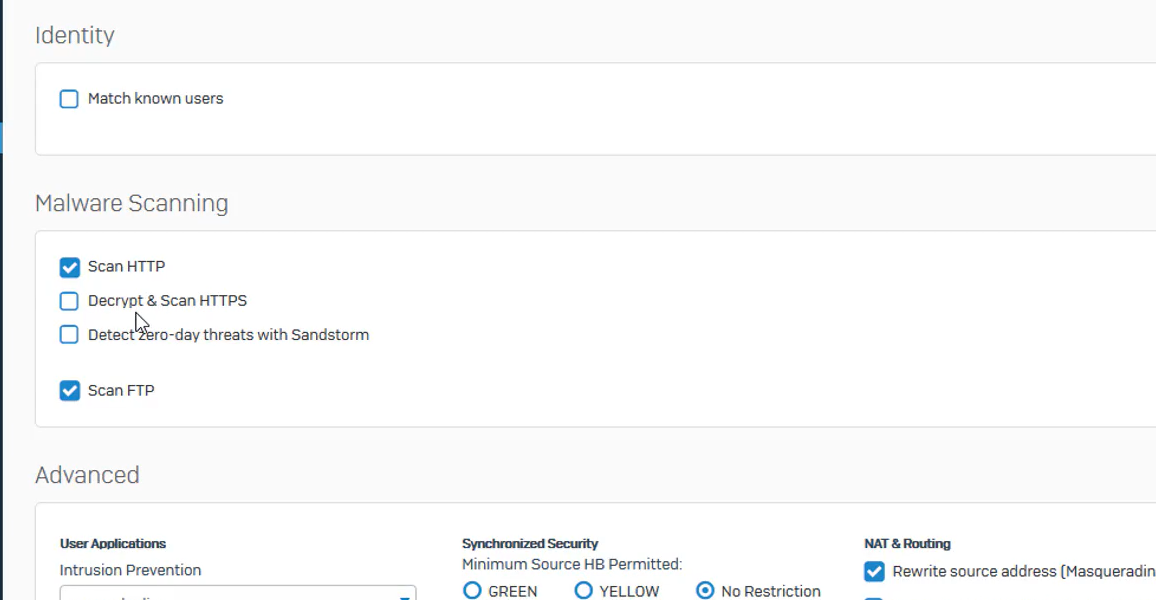

I was trying to enable DPI feature inside of the existing rule, however Malware scanning section is missing in my case. Please see screenshots attached for comparison.



This thread was automatically locked due to age.

Top Replies

  • +1

    Thanks for your prompt reply but it's seems you misunderstood. This screenshot was taken from a training video however in my case Malware scanning section is completely missing int the rule creation screen

    Jump to answer
Parents
  • 0

    Thanks for your prompt reply but it's seems you misunderstood. This screenshot was taken from a training video however in my case Malware scanning section is completely missing int the rule creation screen

  • 0 in reply to Nikita Baranov

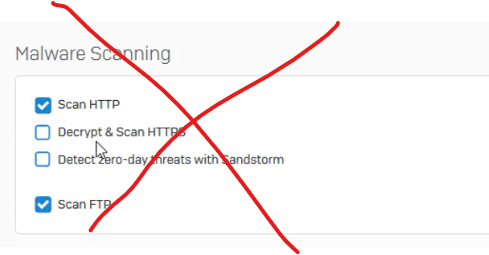

    That screenshot is from 17.5.

    DPI mode was added in 18.0 and the firewall rule screen reorganized.

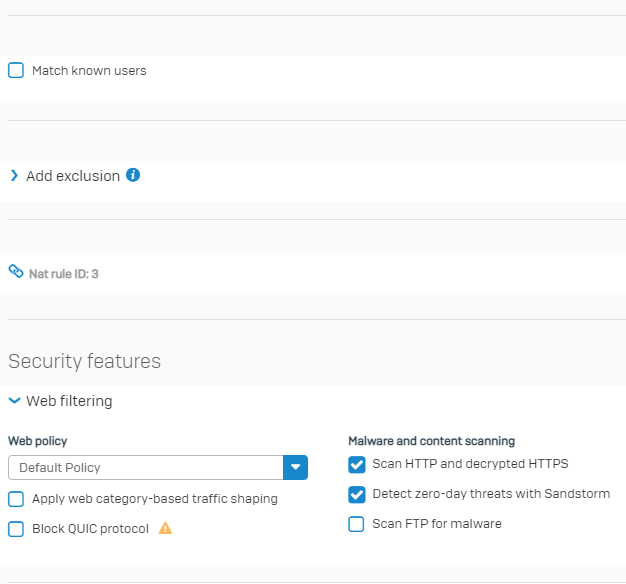

    Scroll till you see "Web Filtering" and then click on it to expand it.  There you can select "Scan HTTP and decrypted HTTPS".  In that section if the "Use web proxy instead of DPI Engine" is selected it will use the Proxy.  If it is unchecked it will use DPI mode.

Reply
  • 0 in reply to Nikita Baranov

    That screenshot is from 17.5.

    DPI mode was added in 18.0 and the firewall rule screen reorganized.

    Scroll till you see "Web Filtering" and then click on it to expand it.  There you can select "Scan HTTP and decrypted HTTPS".  In that section if the "Use web proxy instead of DPI Engine" is selected it will use the Proxy.  If it is unchecked it will use DPI mode.
