Hi out there,
I am looking for some help and would appreciate any ideas on my problem.
Site A (Head):
Internal IP: 192.168.4.0 /24
External IP: 1.1.1.1
Site B (Branch):
Internal IP: 192.168.101.0 /24
External IP: 2.2.2.2
Server IP: 192.168.101.10
I am using two XG Firewalls. One in our head office and one in branch office. Both sites are connected via a Ipsec Site to Site VPN. (No NAT configured). Both sites are able to reach each other internaly.
Now i am trying to access my Webserver on site B (192.168.101.10) via Sites A External IP Adress. As far as i read this should be possible, but probably i am doning something very wrong.

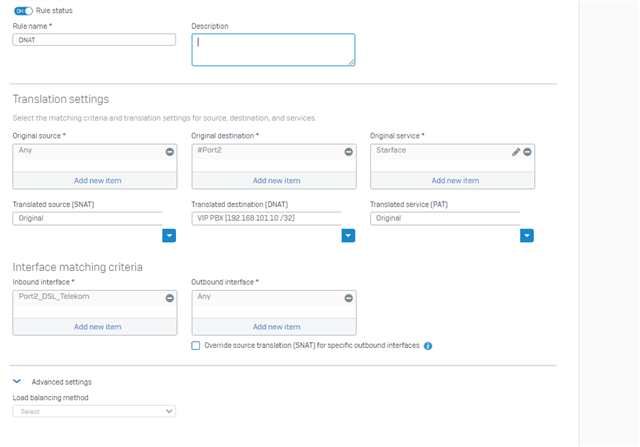

I configured a DNAT rule on site A with accordingly ports pointing to my Server on site B.
As far as I understood i would have to configure Full NAT for that but i also read it would need a ipsec route. So i am some kind of confused
any help would be appreciated
