SOPHOS XGS Firewall SSLVPN IPSec(Remote Access) VPN connected, but cannot access LAN Network

Hi managedservices managedservices,

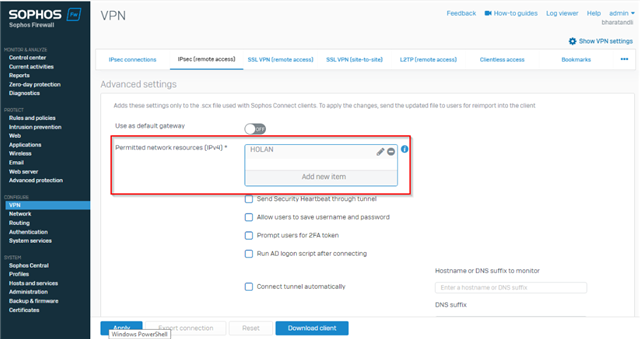

Have you added the host object under Permitted network resource under IPSec VPN Remote user ?

Thanks and Regards

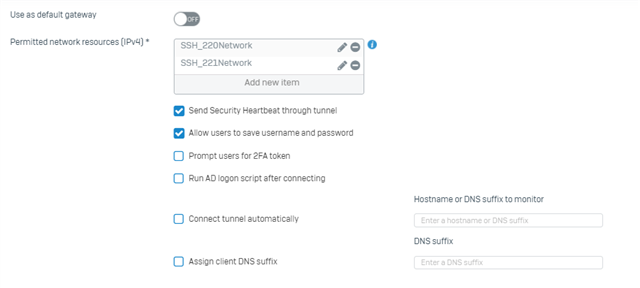

Yes, already permitted network resources...

I had read some article on the community they said "make sure subnets aren’t overlapping" but I dont get it.

is it IPsec Remote access & SSLVPN Remote access user segment can't be the same?

The segments can't be the same. As far as I am aware, XG also adds routes accordingly. So if you had the overlapping subnet, Your IPSec traffic might be getting forwarded to SSL VPN adapter instead of IPsec Remote access adapter.

I was in the similar situation on my home firewall and when I looked at the packet capture, Traffic was going under violation with the reason IP Spoofing.

You can have different networks for SSL VPN and IPSec remote access.
