In one of my previous posts, I set up several virtual interfaces on my primary F1 interface.
They are both effectively a gateway IP in their respective VLANs. The rest of the devices on the network can safely reach their respective gateways(the virtual interfaces).
I am wondering how I can achieve my Firewall (XGS2100) to selectively allow (or not allow) communication between the 2 VLANs?

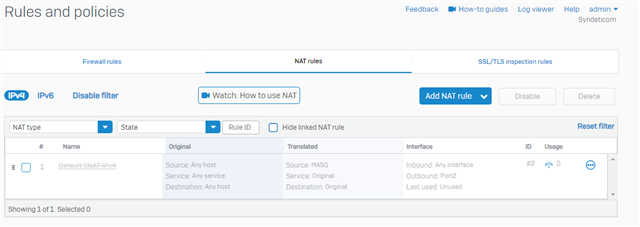

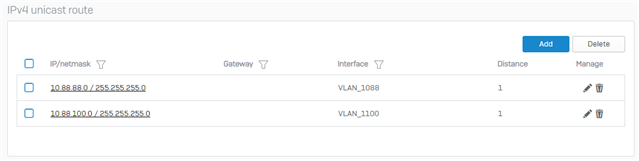

I created simple static routes, and disabled all NAT rules.

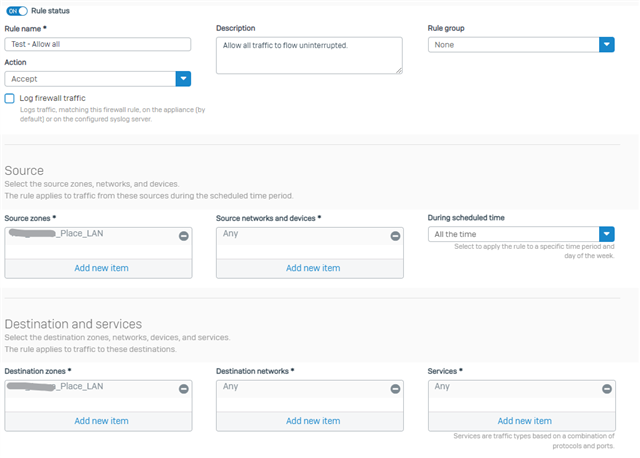

When I created the firewall rules, they don't seem to affect anything.
Regardless wheter this is on or off.
So for example, when I try to ping from 10.88.100.83 to 10.88.88.213, I get message "Destiantion net unreachable".

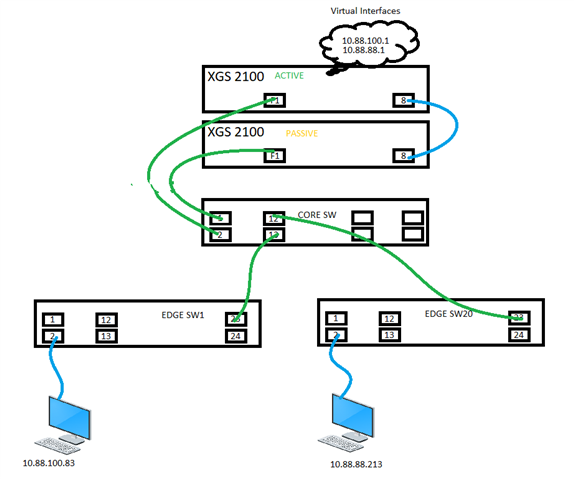

This is my current setup.
Any info will be greatly appreciated. Thank you.
