Hi.
We have a IPSec tunnel between Sophos XG (18) to Fortigate.

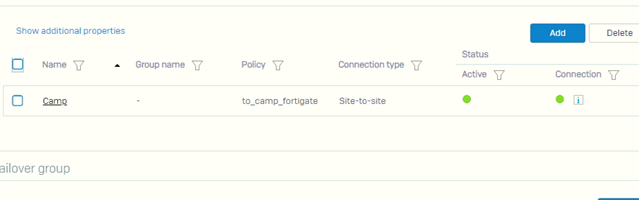

The tunnel is established and shows connected (Phase 1 and Phase2) on both side.
I can ping the Sophos clients (192.168.0.0/24) from any of the Fortigate clients (10.1.0.0/16).
The reverse, ping from Sophos clients to Fortigate clients is not working.
My setup:
1. Created policies on both the firewalls for to-and-fro vpn traffic
2. Setup the route precedence on XG as vpn, static, sdwan
3. Setup a static route on the XG for the Fortigate network (10.1.0.0/255.255.0.0)

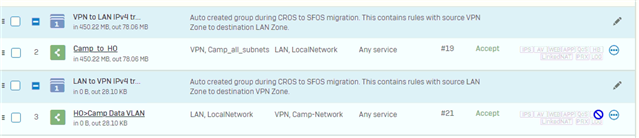

Rules:

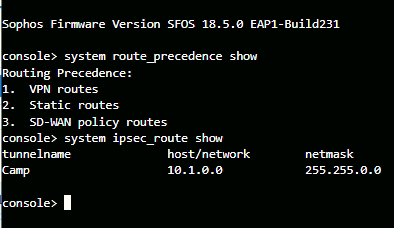

Route Precedence and IPsec static route:

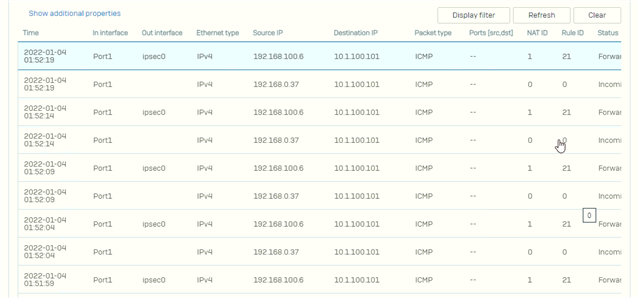

Packet capture on a ping from Sophos client 192.168.0.37 to Fortigate client 10.1.100.101
As can be seen, 192.168.100.6 is the WAN port IP address where source port is shown as Port 1.
Port 1 is the Local LAN port on the XG
Port 6 is the WAN port with static IP 192.168.100.6
Any help!!!! ???
