XGS107 SSD life

My XGS107 has been running for 2 weeks and I found its SSD life has dropped from 100% to 98%. Is it expected? I tried to reduce some logging but it doesn’t help much. It is going to be end of life in less than 2 years

XGS107_SN01_SFOS 18.5.2 MR-2-Build380# smartctl -x /dev/sda
smartctl 7.1 2019-12-30 r5022 [x86_64-linux-4.14.38] (localbuild)
Copyright (C) 2002-19, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Device Model: TS64GMTS530T
Serial Number: G567142698
LU WWN Device Id: 5 7c3548 1c3096f2a
Firmware Version: R0302A0
User Capacity: 64,023,257,088 bytes [64.0 GB]
Sector Size: 512 bytes logical/physical
Rotation Rate: Solid State Device
Form Factor: M.2
Device is: Not in smartctl database [for details use: -P showall]
ATA Version is: ACS-2 T13/2015-D revision 3
SATA Version is: SATA 3.2, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is: Sat Dec 18 11:01:11 2021 HKT
SMART support is: Available - device has SMART capability.
SMART support is: Enabled
AAM feature is: Unavailable
APM level is: 128 (minimum power consumption without standby)
Rd look-ahead is: Enabled
Write cache is: Enabled
DSN feature is: Unavailable
ATA Security is: Disabled, frozen [SEC2]
Wt Cache Reorder: Unavailable

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status: (0x00) Offline data collection activity
was never started.
Auto Offline Data Collection: Disabled.
Self-test execution status: ( 0) The previous self-test routine completed
without error or no self-test has ever
been run.
Total time to complete Offline
data collection: ( 120) seconds.
Offline data collection
capabilities: (0x11) SMART execute Offline immediate.
No Auto Offline data collection support.
Suspend Offline collection upon new
command.
No Offline surface scan supported.
Self-test supported.
No Conveyance Self-test supported.
No Selective Self-test supported.
SMART capabilities: (0x0002) Does not save SMART data before
entering power-saving mode.
Supports SMART auto save timer.
Error logging capability: (0x01) Error logging supported.
General Purpose Logging supported.
Short self-test routine
recommended polling time: ( 2) minutes.
Extended self-test routine
recommended polling time: ( 10) minutes.

SMART Attributes Data Structure revision number: 1
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME FLAGS VALUE WORST THRESH FAIL RAW_VALUE
1 Raw_Read_Error_Rate -O--CK 100 100 050 - 0
5 Reallocated_Sector_Ct -O--CK 100 100 050 - 0
9 Power_On_Hours -O--CK 100 100 050 - 356
12 Power_Cycle_Count -O--CK 100 100 050 - 14
160 Unknown_Attribute -O--CK 100 100 050 - 0
161 Unknown_Attribute PO--CK 100 100 050 - 100
163 Unknown_Attribute -O--CK 100 100 050 - 9
164 Unknown_Attribute -O--CK 100 100 050 - 32593
165 Unknown_Attribute -O--CK 100 100 050 - 99
166 Unknown_Attribute -O--CK 100 100 050 - 2
167 Unknown_Attribute -O--CK 100 100 050 - 22
168 Unknown_Attribute -O--CK 100 100 050 - 1000
169 Unknown_Attribute -O--CK 100 100 050 - 98
175 Program_Fail_Count_Chip -O--CK 100 100 050 - 0
176 Erase_Fail_Count_Chip -O--CK 100 100 050 - 0
177 Wear_Leveling_Count -O--CK 100 100 050 - 0
178 Used_Rsvd_Blk_Cnt_Chip -O--CK 100 100 050 - 0
181 Program_Fail_Cnt_Total -O--CK 100 100 050 - 0
182 Erase_Fail_Count_Total -O--CK 100 100 050 - 0
192 Power-Off_Retract_Count -O--CK 100 100 050 - 7
194 Temperature_Celsius -O---K 100 100 050 - 64
195 Hardware_ECC_Recovered -O--CK 100 100 050 - 0
196 Reallocated_Event_Count -O--CK 100 100 050 - 0
197 Current_Pending_Sector -O--CK 100 100 050 - 0
198 Offline_Uncorrectable -O--CK 100 100 050 - 0
199 UDMA_CRC_Error_Count -O--CK 100 100 050 - 0
232 Available_Reservd_Space -O--CK 100 100 050 - 100
241 Total_LBAs_Written ----CK 100 100 050 - 7363
242 Total_LBAs_Read ----CK 100 100 050 - 1068
245 Unknown_Attribute -O--CK 100 100 050 - 17676
||||||_ K auto-keep
|||||__ C event count
||||___ R error rate
|||____ S speed/performance
||_____ O updated online
|______ P prefailure warning

General Purpose Log Directory Version 1
SMART Log Directory Version 1 [multi-sector log support]
Address Access R/W Size Description
0x00 GPL,SL R/O 1 Log Directory
0x01 SL R/O 1 Summary SMART error log
0x02 SL R/O 1 Comprehensive SMART error log
0x03 GPL R/O 1 Ext. Comprehensive SMART error log
0x04 GPL,SL R/O 8 Device Statistics log
0x06 SL R/O 1 SMART self-test log
0x07 GPL R/O 1 Extended self-test log
0x10 GPL R/O 1 NCQ Command Error log
0x11 GPL R/O 1 SATA Phy Event Counters log
0x30 GPL,SL R/O 9 IDENTIFY DEVICE data log
0x80-0x9f GPL,SL R/W 16 Host vendor specific log
0xde GPL VS 8 Device vendor specific log

SMART Extended Comprehensive Error Log Version: 1 (1 sectors)
No Errors Logged

SMART Extended Self-test Log Version: 1 (1 sectors)
No self-tests have been logged. [To run self-tests, use: smartctl -t]

Selective Self-tests/Logging not supported

SCT Commands not supported

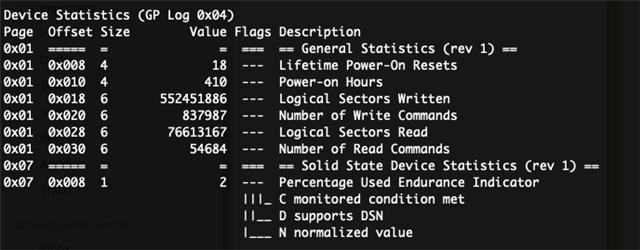

Device Statistics (GP Log 0x04)
Page Offset Size Value Flags Description
0x01 ===== = = === == General Statistics (rev 1) ==
0x01 0x008 4 14 --- Lifetime Power-On Resets
0x01 0x010 4 356 --- Power-on Hours
0x01 0x018 6 482581530 --- Logical Sectors Written
0x01 0x020 6 263178 --- Number of Write Commands
0x01 0x028 6 70001665 --- Logical Sectors Read
0x01 0x030 6 38842 --- Number of Read Commands
0x07 ===== = = === == Solid State Device Statistics (rev 1) ==
0x07 0x008 1 2 --- Percentage Used Endurance Indicator
|||_ C monitored condition met
||__ D supports DSN
|___ N normalized value

Pending Defects log (GP Log 0x0c) not supported

SATA Phy Event Counters (GP Log 0x11)
ID Size Value Description
0x0001 4 0 Command failed due to ICRC error
0x0002 4 0 R_ERR response for data FIS
0x0005 4 0 R_ERR response for non-data FIS
0x000a 4 4 Device-to-host register FISes sent due to a COMRESET
