Opening an unrestricted VLAN Network

One of our clients was trying to use a specific app and Sophos kept blocking it, so we went in and unblocked the app and all services related to it. However this didn't work so we went on to making an unrestricted VLAN network that they would only use when they needed to use their specific app. They were able to connect to the VLAN network but the app was still blocked. The firewall rule for our network is set to allow everything.

This thread was automatically locked due to age.

Top Replies

rfcat_vk over 3 years ago in reply to Yasha Burns +1

Your ports need to be changed to 1:65535 as source ports. Ian

0 rfcat_vk over 3 years ago

What does the logviewer show for failure reason?

Ian

XG115W - v19.5.1 mr-1 - Home

If a post solves your question please use the 'Verify Answer' button.
Cancel
Vote Up 0 Vote Down

Cancel
0 Yasha Burns over 3 years ago

I'm not entirely sure what your looking for but its under appliance access and I copied the log

2021-12-09 17:56:16Firewallmessageid="02002" log_type="Firewall" log_component="Appliance Access" log_subtype="Denied" status="Deny" con_duration="0" fw_rule_id="N/A" nat_rule_id="0" policy_type="0" user="" user_group="" web_policy_id="0" ips_policy_id="0" appfilter_policy_id="0" app_name="" app_risk="0" app_technology="" app_category="" vlan_id="" ether_type="IPv4 (0x0800)" bridge_name="" bridge_display_name="" in_interface="Port1.8" in_display_interface="Port1.8" out_interface="" out_display_interface="" src_mac="f8:ff:c2:2a:cf:91" dst_mac="" src_ip="192.168.8.24" src_country="R1" dst_ip="192.168.8.255" dst_country="R1" protocol="UDP" src_port="137" dst_port="137" packets_sent="0" packets_received="0" bytes_sent="0" bytes_received="0" src_trans_ip="" src_trans_port="0" dst_trans_ip="" dst_trans_port="0" src_zone_type="" src_zone="" dst_zone_type="" dst_zone="" con_direction="" con_id="" virt_con_id="" hb_status="No Heartbeat" message="" appresolvedby="Signature" app_is_cloud="0"
Cancel
Vote Up 0 Vote Down

Cancel
0 rfcat_vk over 3 years ago in reply to Yasha Burns

That logviewer report shows the application broadcasting on port 137 to the network broadcast address using a non routable port.

What does the application provider advise which ports are used?

Ian

XG115W - v19.5.1 mr-1 - Home

If a post solves your question please use the 'Verify Answer' button.
Cancel
Vote Up 0 Vote Down

Cancel
0 Yasha Burns over 3 years ago

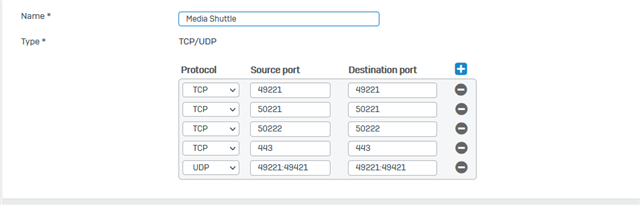

These are the ports
Cancel
Vote Up 0 Vote Down

Cancel
0 rfcat_vk over 3 years ago in reply to Yasha Burns

Your ports need to be changed to 1:65535 as source ports.

Ian

XG115W - v19.5.1 mr-1 - Home

If a post solves your question please use the 'Verify Answer' button.
Cancel
Vote Up +1 Vote Down

Cancel
0 Yasha Burns over 3 years ago in reply to rfcat_vk

Thanks, I'm going to try it now and see if it works.
Cancel
Vote Up 0 Vote Down

Cancel
0 Yasha Burns over 3 years ago in reply to rfcat_vk

We did change our source port to 1:65535 but our client reported that it had no difference on that network.
Cancel
Vote Up 0 Vote Down

Cancel
0 Brian1941 over 3 years ago in reply to Yasha Burns

I think it's a bit more complicated... It looks like you might need to set up TCP port 49221 for inbound traffic: https://help.signiant.com/media-shuttle/general/system-requirements
Cancel
Vote Up +1 Vote Down

Cancel
0 Yasha Burns over 3 years ago in reply to Brian1941

How would I go about doing that?
Cancel
Vote Up 0 Vote Down

Cancel
0 Yasha Burns over 3 years ago in reply to Brian1941

I can try to figure it out but do you know how someone would do this
