XG125 VLAN to LAN traffic

WWarneke

cant figure out what I'm missing...

XG125

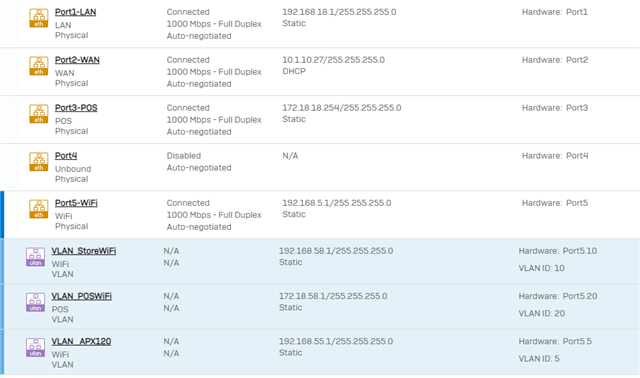

I have APX120 connected to port5. tagged vlan is turned on.

port5 192.168.5.1  3 vlans are on port5

vlan5 - 192.168.55.1

vlan10 -192.168.58.1

vlan20 - 172.18.58.1

APX120 is tagged vlan5

my wifi networks are working fine. Trying to enable traffic from wifi network on vlan20 to lan on port3.  I want devices to be able to reach an iis server on port3, 172.18.18.1.

I can ping the port3 gateway at 172.18.18.254, but cant ping the pc at 172.18.18.1

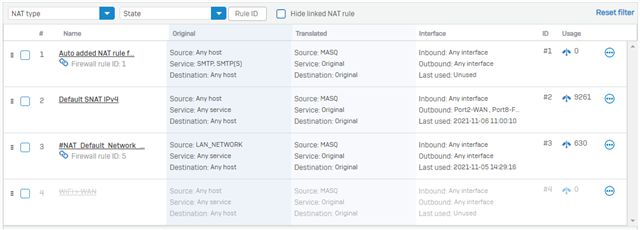

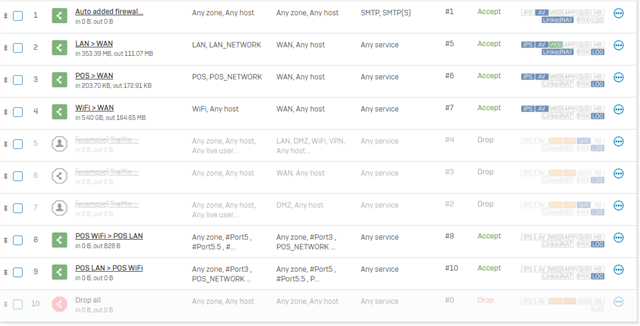

I have rules for traffic both ways but I must be missing something or doing it wrong!



This thread was automatically locked due to age.
Parents
  • +1

    Likely the rule is not correct. #Port Objects are only the IP of this interface, which likely is never the origin of traffic. Simply use the zone, you used for the VLANs and "ANY". The Zone is enough to limit the access.

    __________________________________________________________________________________________________________________

Reply
  • +1

    Likely the rule is not correct. #Port Objects are only the IP of this interface, which likely is never the origin of traffic. Simply use the zone, you used for the VLANs and "ANY". The Zone is enough to limit the access.

    __________________________________________________________________________________________________________________
