Sonicwall to Sophos XG to WAN

Mohammed Pasha

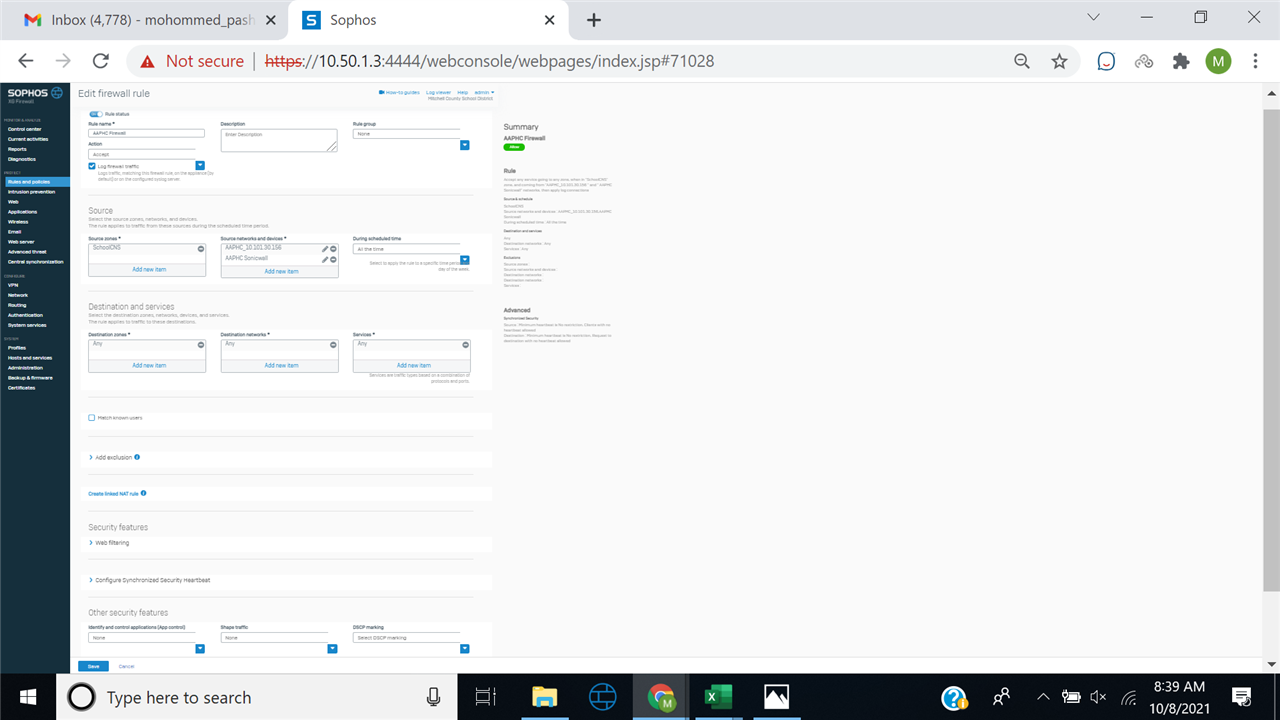

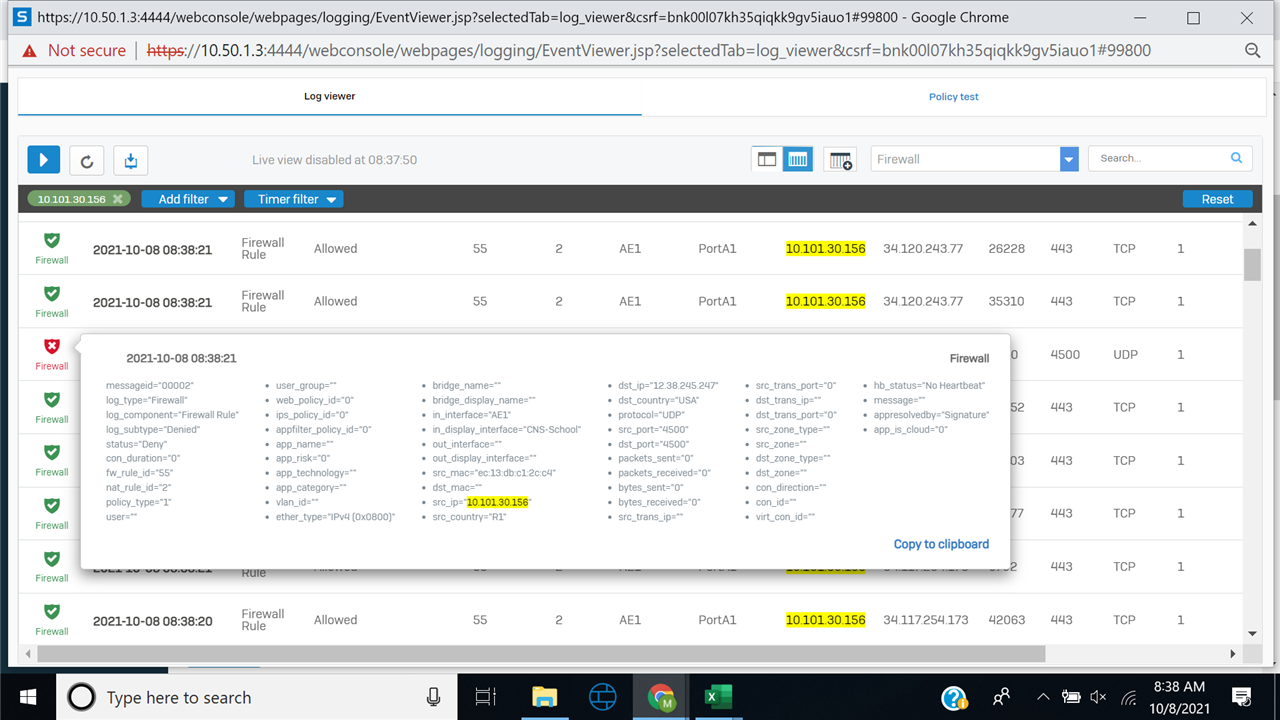

We have internal sonicwall that sends traffic to our XG. I am not sure what i am doing wrong, but i am not able to send traffic out to internet. Screenshots attached.



This thread was automatically locked due to age.
Parents
  • FormerMember
    0 FormerMember

    Hi Mohammed, Thanks for reaching out to Sophos Community.

    There can be multiple things. If the network behind sonicwall is different than the network that the firewall is configured with, Then you'll need to add reverse routes to reach the network behind Sonicwall.

    If the routes are added or Sonicwall is configured as a transparent device, then check the NAT rule that is getting matched and see if the "Translated source (SNAT)" is kept as Original or MASQ. It should be MASQ for WAN traffic.

Reply
  • FormerMember
    0 FormerMember

    Hi Mohammed, Thanks for reaching out to Sophos Community.

    There can be multiple things. If the network behind sonicwall is different than the network that the firewall is configured with, Then you'll need to add reverse routes to reach the network behind Sonicwall.

    If the routes are added or Sonicwall is configured as a transparent device, then check the NAT rule that is getting matched and see if the "Translated source (SNAT)" is kept as Original or MASQ. It should be MASQ for WAN traffic.
