Sophos XG BGP dynamic routing over 2 RED tunnels (for failover)

Santiago Crespo Guillen

Hi,

I'm trying to set up a reliable connection between two offices of the same company using RED tunnels instead of VPNs. There are limitations which are not relevant now, but the fact is that we can't use IPSEC VPNs and RED tunnels work fine.

This is the scenario:

Office 1 Office 2
XG1 SFOS 18.5.1 MR-1-Build326

XG2 SFOS 18.5.1 MR-1-Build326
WAN1.1

WAN2.1
WAN1.2

WAN 2.2

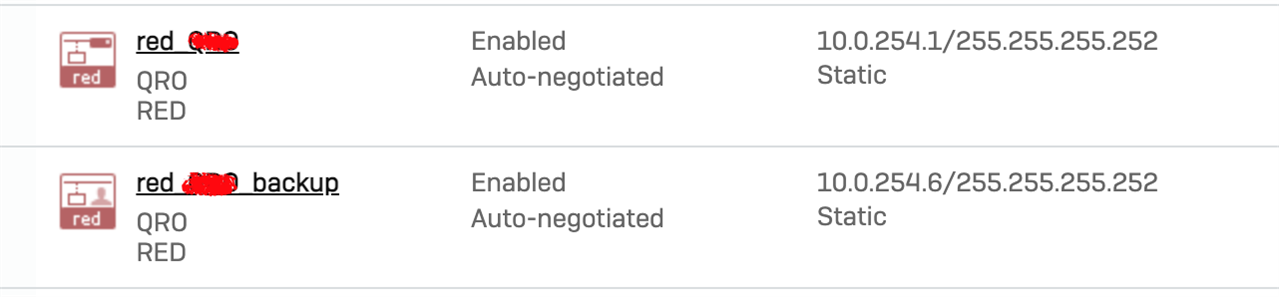

XG1 red Tunnels (main and backup)

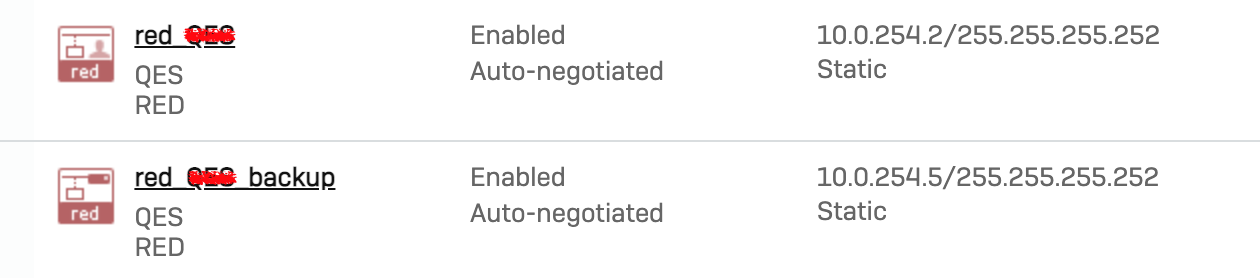

XG2 red Tunnels (main and backup)

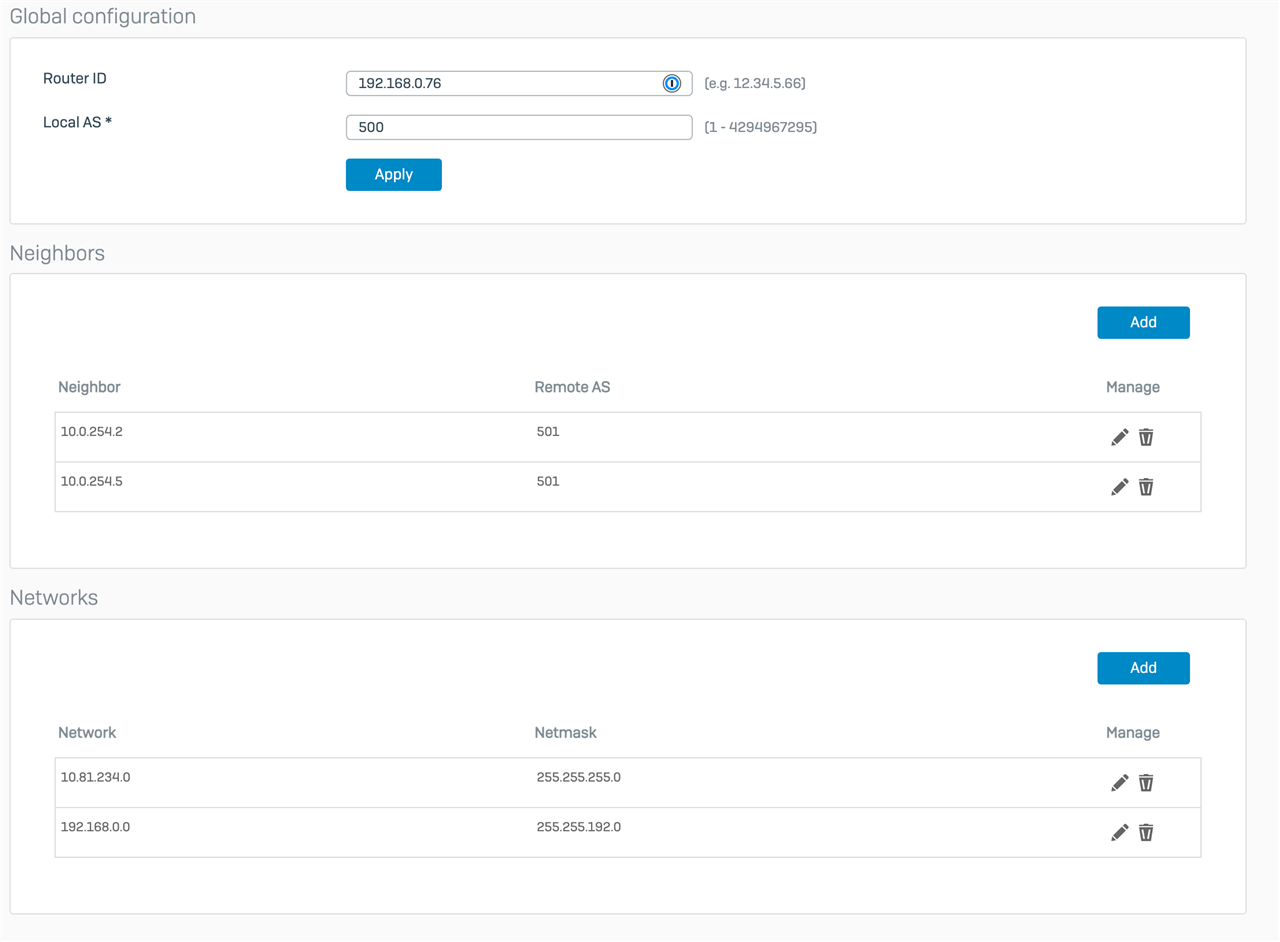

BGP CONFIGURATION XG1

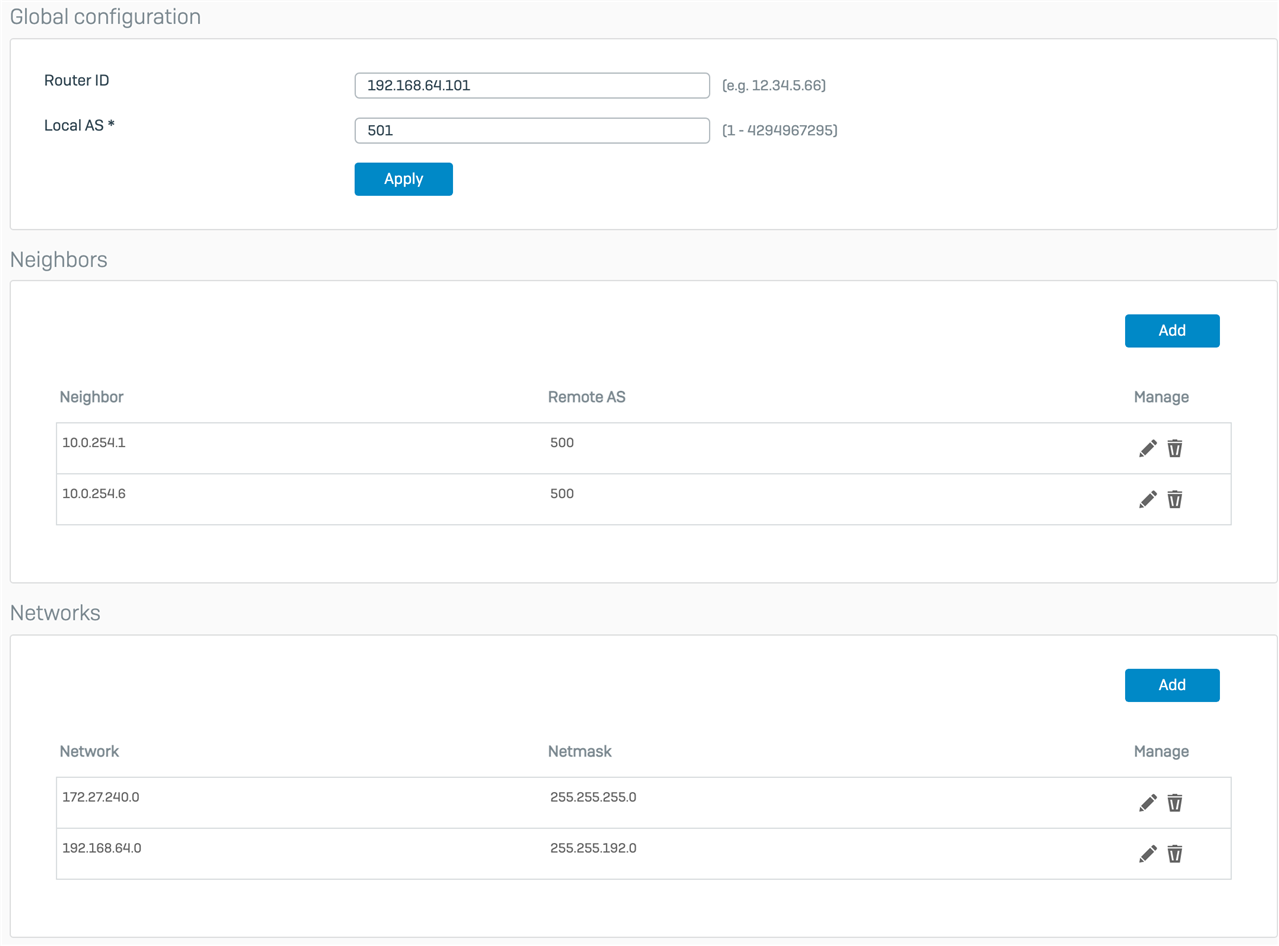

BGP CONFIGURATION XG2

BGP Summary at XG1

BGP router identifier 192.168.0.76, local AS number 500
RIB entries 7, using 448 bytes of memory
Peers 2, using 4968 bytes of memory

Neighbor        V    AS MsgRcvd MsgSent   TblVer  InQ OutQ Up/Down  State/PfxRcd
10.0.254.2      4   501      84      87        0    0    0 01:17:08        2
10.0.254.5      4   501    1023    1031        0    0    0 00:15:36        2

Total number of neighbors 2




BGP Summary at XG2


BGP router identifier 192.168.64.101, local AS number 501
RIB entries 7, using 448 bytes of memory
Peers 2, using 4968 bytes of memory

Neighbor        V    AS MsgRcvd MsgSent   TblVer  InQ OutQ Up/Down  State/PfxRcd
10.0.254.1      4   500      82      83        0    0    0 01:15:36        2
10.0.254.6      4   500    1018    1026        0    0    0 00:14:03        2

Total number of neighbors 2








BGP routes at XG1

BGP table version is 0, local router ID is 192.168.0.76
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
              r RIB-failure, S Stale, R Removed
Origin codes: i - IGP, e - EGP, ? - incomplete

   Network          Next Hop            Metric LocPrf Weight Path
*> 10.81.234.0/24   0.0.0.0                  0         32768 i
*> 172.27.240.0/24  10.0.254.5               0            20 501 i
*                   10.0.254.2               0             0 501 i
*> 192.168.0.0/18   0.0.0.0                  0         32768 i
*> 192.168.64.0/18  10.0.254.5               0            20 501 i
*                   10.0.254.2               0             0 501 i

Total number of prefixes 4




BGP routes at XG2


BGP table version is 0, local router ID is 192.168.64.101
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,
              r RIB-failure, S Stale, R Removed
Origin codes: i - IGP, e - EGP, ? - incomplete

   Network          Next Hop            Metric LocPrf Weight Path
*> 10.81.234.0/24   10.0.254.6               0            20 500 i
*                   10.0.254.1               0             0 500 i
*> 172.27.240.0/24  0.0.0.0                  0         32768 i
*> 192.168.0.0/18   10.0.254.6               0            20 500 i
*                   10.0.254.1               0             0 500 i
*> 192.168.64.0/18  0.0.0.0                  0         32768 i

Total number of prefixes 4








BGP Neighbors at XG1




BGP neighbor is 10.0.254.2, remote AS 501, local AS 500, external link
  BGP version 4, remote router ID 192.168.64.101
  BGP state = Established, up for 01:47:58
  Last read 00:00:58, hold time is 180, keepalive interval is 60 seconds
  Neighbor capabilities:
    4 Byte AS: advertised and received
    Route refresh: advertised and received(old & new)
    Address family IPv4 Unicast: advertised and received
  Message statistics:
    Inq depth is 0
    Outq depth is 0
                         Sent       Rcvd
    Opens:                  3          0
    Notifications:          0          1
    Updates:                5          5
    Keepalives:           109        108
    Route Refresh:          0          0
    Capability:             0          0
    Total:                117        114
  Minimum time between advertisement runs is 30 seconds
  Default weight 10

 For address family: IPv4 Unicast
  Community attribute sent to this neighbor(both)
  2 accepted prefixes

  Connections established 1; dropped 0
  Last reset never
Local host: 10.0.254.1, Local port: 179
Foreign host: 10.0.254.2, Foreign port: 52066
Nexthop: 10.0.254.1
Read thread: on  Write thread: off

BGP neighbor is 10.0.254.5, remote AS 501, local AS 500, external link
  BGP version 4, remote router ID 192.168.64.101
  BGP state = Established, up for 00:46:26
  Last read 00:00:26, hold time is 180, keepalive interval is 60 seconds
  Neighbor capabilities:
    4 Byte AS: advertised and received
    Route refresh: advertised and received(old & new)
    Address family IPv4 Unicast: advertised and received
  Message statistics:
    Inq depth is 0
    Outq depth is 0
                         Sent       Rcvd
    Opens:                  4          1
    Notifications:          1          1
    Updates:                5          5
    Keepalives:          1052       1047
    Route Refresh:          0          0
    Capability:             0          0
    Total:               1062       1054
  Minimum time between advertisement runs is 30 seconds
  Default weight 20

 For address family: IPv4 Unicast
  Community attribute sent to this neighbor(both)
  2 accepted prefixes

  Connections established 3; dropped 2
  Last reset 00:46:39, due to BGP Notification send
Local host: 10.0.254.6, Local port: 49014
Foreign host: 10.0.254.5, Foreign port: 179
Nexthop: 10.0.254.6
Read thread: on  Write thread: off





BGP Neighbors at XG2




BGP neighbor is 10.0.254.1, remote AS 500, local AS 501, external link
  BGP version 4, remote router ID 192.168.0.76
  BGP state = Established, up for 01:47:56
  Last read 00:00:56, hold time is 180, keepalive interval is 60 seconds
  Neighbor capabilities:
    4 Byte AS: advertised and received
    Route refresh: advertised and received(old & new)
    Address family IPv4 Unicast: advertised and received
  Message statistics:
    Inq depth is 0
    Outq depth is 0
                         Sent       Rcvd
    Opens:                  1          1
    Notifications:          0          0
    Updates:                5          5
    Keepalives:           109        108
    Route Refresh:          0          0
    Capability:             0          0
    Total:                115        114
  Minimum time between advertisement runs is 30 seconds
  Default weight 10

 For address family: IPv4 Unicast
  Community attribute sent to this neighbor(both)
  2 accepted prefixes

  Connections established 1; dropped 0
  Last reset never
Local host: 10.0.254.2, Local port: 52066
Foreign host: 10.0.254.1, Foreign port: 179
Nexthop: 10.0.254.2
Read thread: on  Write thread: off

BGP neighbor is 10.0.254.6, remote AS 500, local AS 501, external link
  BGP version 4, remote router ID 192.168.0.76
  BGP state = Established, up for 00:46:23
  Last read 00:00:23, hold time is 180, keepalive interval is 60 seconds
  Neighbor capabilities:
    4 Byte AS: advertised and received
    Route refresh: advertised and received(old & new)
    Address family IPv4 Unicast: advertised and received
  Message statistics:
    Inq depth is 0
    Outq depth is 0
                         Sent       Rcvd
    Opens:                  3          1
    Notifications:          1          0
    Updates:                4          4
    Keepalives:          1050       1045
    Route Refresh:          0          0
    Capability:             0          0
    Total:               1058       1050
  Minimum time between advertisement runs is 30 seconds
  Default weight 20

 For address family: IPv4 Unicast
  Community attribute sent to this neighbor(both)
  2 accepted prefixes

  Connections established 2; dropped 1
  Last reset 00:46:37, due to BGP Notification send
Local host: 10.0.254.5, Local port: 179
Foreign host: 10.0.254.6, Foreign port: 49014
Nexthop: 10.0.254.5
Read thread: on  Write thread: off










route -n at XG1


XG310_WP02_SFOS 18.5.1 MR-1-Build326# netstat -nr|grep red


10.0.254.0      0.0.0.0         255.255.255.252 U         0 0          0 reds20


10.0.254.4      0.0.0.0         255.255.255.252 U         0 0          0 reds21


172.27.240.0    10.0.254.5      255.255.255.0   UG        0 0          0 reds21


192.168.64.0    10.0.254.5      255.255.192.0   UG        0 0          0 reds21




route -n at XG2


XG135_XN03_SFOS 18.5.1 MR-1-Build326# netstat -nr |grep red


10.0.254.0      0.0.0.0         255.255.255.252 U         0 0          0 reds20


10.0.254.4      0.0.0.0         255.255.255.252 U         0 0          0 reds21


10.81.234.0     10.0.254.6      255.255.255.0   UG        0 0          0 reds21




192.168.0.0     10.0.254.6      255.255.192.0   UG        0 0          0 reds21








ip route -n at XG1




XG310_WP02_SFOS 18.5.1 MR-1-Build326# ip route |grep reds2


10.0.254.0/30 dev reds20 proto kernel scope link src 10.0.254.1


10.0.254.4/30 dev reds21 proto kernel scope link src 10.0.254.6


172.27.240.0/24 via 10.0.254.5 dev reds21 proto zebra


192.168.64.0/18 via 10.0.254.5 dev reds21 proto zebra










ip route at XG2




XG135_XN03_SFOS 18.5.1 MR-1-Build326# ip route |grep reds


10.0.254.0/30 dev reds20 proto kernel scope link src 10.0.254.2


10.0.254.4/30 dev reds21 proto kernel scope link src 10.0.254.5


10.81.234.0/24 via 10.0.254.6 dev reds21 proto zebra


10.254.251.0/30 dev reds500 proto kernel scope link src 10.254.251.1


10.254.252.0/30 dev reds1 proto kernel scope link src 10.254.252.1


192.168.0.0/18 via 10.0.254.6 dev reds21 proto zebra
















What happens:

Everything seems to work fine pinging, trace-routing from one network to another.. However if I disable one of the RED tunnels, the routing does not commute to the active RED tunnel.




So, should it commute?


If not, what could I do to automatically conmmute?




At the end of the day, what we need is a failover connectivity between these two sites.. and no IPSEC VPN can be used..






Thanks in advance!




				This thread was automatically locked due to age.

































































  •























													0

















    How did you "kill" the connection of RED?







































    •



  •























													0









						in reply to LuCar Toni










    Hi..

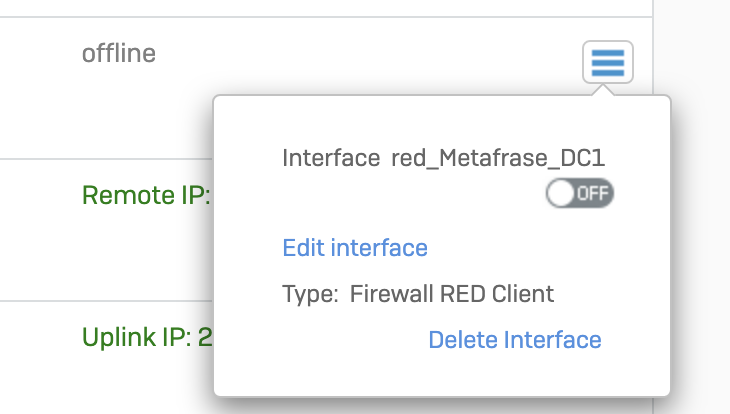

    I just turned it off here: (over the ON-OFF switch button)







    Is it there any other "nicer" way to "kill" that RED connection that should do the job better?







































    •



  •























													0









						in reply to Santiago Crespo Guillen










    I assume, the BGP will not pick up this, isnt it?
    Because RED is a stateless interface. It will not go "down" in terms of the interface is down, if you do this. The interface still will be there and be connected on the Linux. And BGP uses this kind of information.


    Thats my understanding, what is happening.
    So you could look into the BGP documentation and implement BGP own systems to have keep alives to kill routes after BGP notice the link fails. See: https://www.noction.com/blog/bgp-timers







































    •



  •























													+1









						in reply to LuCar Toni










    Lucar.. Thanks a lot for your help! - I'll take a look at the link and will come back with more feedback!




    Update:




    I've set-up the following parameters via CLI:








    router bgp 500


     bgp router-id 192.168.0.76


     network 10.81.234.0/24


     network 192.168.0.0/18


     timers bgp 3 10


     neighbor 10.0.254.2 remote-as 501


     neighbor 10.0.254.2 weight 21


     neighbor 10.0.254.5 remote-as 501


     neighbor 10.0.254.5 weight 20


     maximum-paths 4


    !




    router bgp 501


     bgp router-id 192.168.64.101


     network 172.27.240.0/24


     network 192.168.64.0/18


     timers bgp 3 10


     neighbor 10.0.254.1 remote-as 500


     neighbor 10.0.254.1 weight 21


     neighbor 10.0.254.6 remote-as 500


     neighbor 10.0.254.6 weight 20


     maximum-paths 4


    !










    done a write to save changes and things look the same so far.. I don't know if there's a way to restart the BGP service and check if it makes any difference..




    After a while... I shutted down one of the RED tunnels and then automatically the connection started working using the other one. So it looks the solution is working. :-)







































    •
