Create Vlan

antonio Pereira over 3 years ago

Hi everyone,

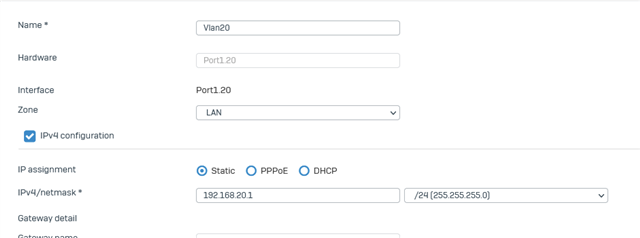

i have some tests in sophos home xg v18.5 with vlans, my exemple is below:

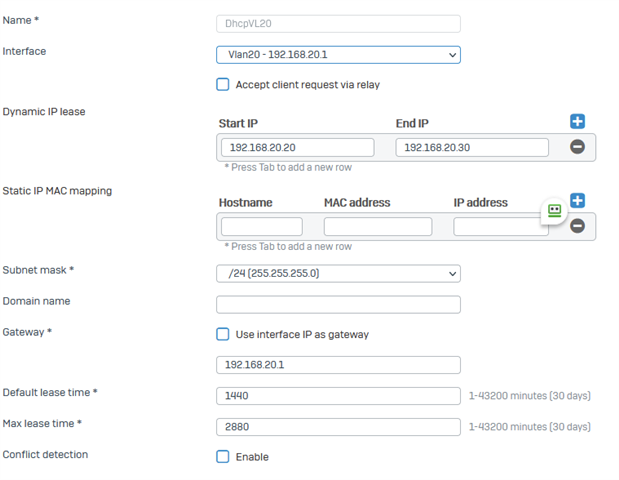

dhcp:

then i have a dlink switch webmanaged

port1: go to Sophos

port2: go to pc

pc cannot obtain ip.

an you help?

Thanks.

This thread was automatically locked due to age.

0 rfcat_vk over 3 years ago

Hi,

Is the port connecting to the XG tagged and the port you connect your PC on untaggrd?

Ian
Cancel
Vote Up 0 Vote Down

Cancel
0 antonio Pereira over 3 years ago in reply to rfcat_vk

yes, its true.

Have you another way?
Cancel
Vote Up 0 Vote Down

Cancel
0 emmosophos over 3 years ago in reply to antonio Pereira

Hello Antonio,

Adding to what rfcat mentioned, you need to select the VLAN 1, and select the Port1 as Tagged and the rest to NOT member.

Regards,
Cancel
Vote Up 0 Vote Down

Cancel
0 antonio Pereira over 3 years ago in reply to emmosophos

I have read one answer yours to another situation, V18.5 supports switch L2?

thanks
Cancel
Vote Up 0 Vote Down

Cancel
0 SHtan over 3 years ago in reply to antonio Pereira

Yep V18.5 supports L2 switch
Cancel
Vote Up 0 Vote Down

Cancel
0 antonio Pereira over 3 years ago in reply to SHtan

so , in resume:

port 1 of XG is untaged in port 1 of switch (vlan1 default);

port 2 is untaged and conected in pc

with this configuration cannot work, cannot obtain ip form dhcp vlan20.

i tested has Emmanuel mensionated but does't work too

Just for keep in mind, my XG is for testing is Xg home, any problem with this?

Thanks
