Trying to understand the rules, and why traffic is routing with a rule turned off?

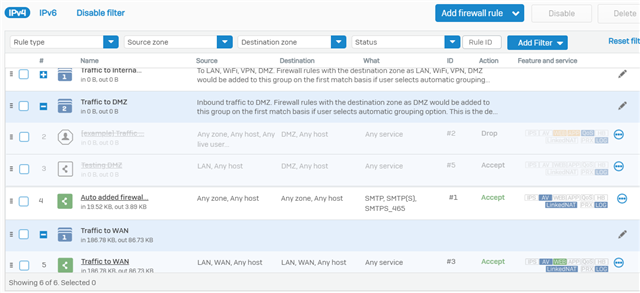

I am trying to understand how I am able to get traffic from my LAN to the DMZ when the firewall rule is OFF! Clearly I do not understand the XG rules and policies. I have attached an image below of what I see in the rules display, and from what I see there is nothing allowing traffic between the LAN and the DMZ. Before I go any further and create a bigger mess I need to know why. Where is this controlled and how am I supposed to read the displayed information so that I would know how the routing is occuring?

This thread was automatically locked due to age.

Parents

0 emmosophos over 3 years ago

Hello Mark,

Thank you for contacting the Sophos Community.

What are rules #4 and #6?

You can also use the Diagnostics or conntrack to double confirm what Firewall rule is being applied when the traffic is going from LAN to DMZ.

Regards,
Cancel
Vote Up 0 Vote Down

Cancel
0 MarkThornton over 3 years ago in reply to emmosophos

Where am I supposed to see what is happening on the diagnostics page. All I see is the ping feature and it doesn't show up in the firewall log. Neither does a continuous ping from my desktop through the XG to the switch on the VLAN. Even when I enter the destination ip as a filter in the log nothing shows up. When I traceroute from my desktop it is clearly going through the XG to get to the switch on the VLAN.
Cancel
Vote Up 0 Vote Down

Cancel
0 emmosophos over 3 years ago in reply to MarkThornton

Hello Mark,

Thank you for the feedback.

Sorry I thought I put the link for the KB on how to use the Packet Capture on the XG.

Regards,
Cancel
Vote Up 0 Vote Down

Cancel

Reply

0 emmosophos over 3 years ago in reply to MarkThornton

Hello Mark,

Thank you for the feedback.

Sorry I thought I put the link for the KB on how to use the Packet Capture on the XG.

Regards,
Cancel
Vote Up 0 Vote Down

Cancel
