Firewall rule routing certain ports through another SD Wan

Brad Clement

So I have something I need to complete where I need to route specific traffic from machines using Teams ports 50000:50059 which have DSCP packets marked. I currently have a firewall rule to isolate that traffic coming from the machines I specify but now how do I force that traffic to now flow over a different SD Wan connection. I don't want all traffic from those machines going to the new SD Wan but only the ports for Teams. I have other SD Wan rules setup for things like our wireless networks which work but I am confused at how to do this.

Thanks for any and all help provided.



This thread was automatically locked due to age.
  • 0

    Brad,
      That should be straight forward. I assume you already created the Service Object.  The steps would be:

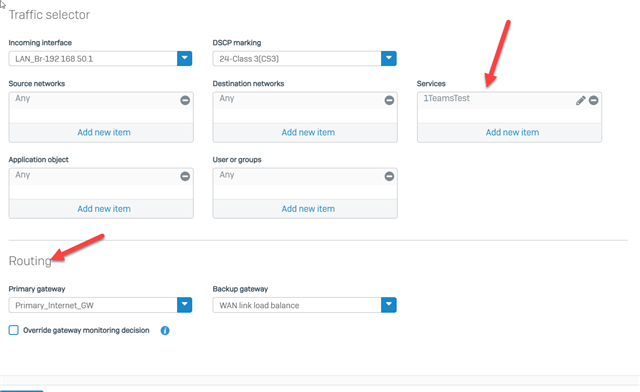

    Webadmin --> Routing --> SD-WAN Policy --> Add --> Configure the fields you need, including the DSCP markers.  In the "Services" field, add the service for teams that you created.  In the "Routing section" select which gateway you want it to go through.  In the end it would look something like this:
