Hello, good morning.

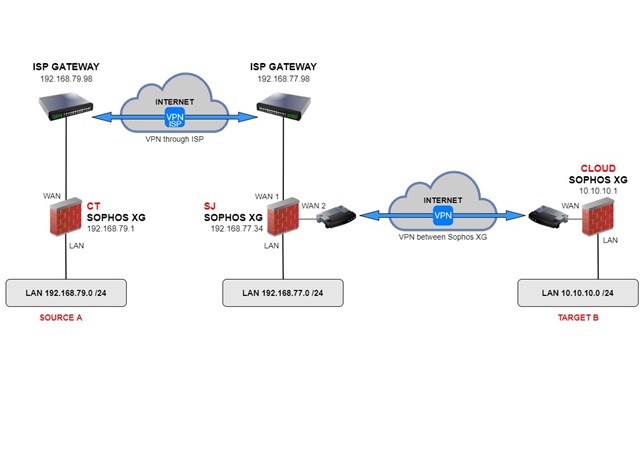

I will try to explain how it is structured and what we need, for this I attach scheme that can help to understand it. All the information you need ask me. Thank you very much in advance.
Scenario:
- Firewall CT and Firewall SJ connected through VPN tunnel managed by the Internet Service Provider (ISP).
- SJ Firewall and CLOUD Firewall connected through VPN tunnel managed by us with XG firewalls.
Objective:
To have connectivity from LAN 192.168.79.0 (Source A) to LAN 10.10.10.0 (Target B).
Current situation:
VPN tunnels are correctly connected but performing ping and tracert tests we have connectivity up to SJ 192.168.77.34 firewall and there the packets stay.
Configurations:
- Firewall CT
Routing 192.168.77.0 / 255.255.255.0 Gateway 192.168.79.98
- Firewall SJ
Routing 192.168.79.0 / 255.255.255.0 Gateway 192.168.77.98
VPN IPSec
Local subnet: 192.168.77.0, 192.168.79.0
Remote subnet: 10.10.10.0
Rules
LAN - VPN
Source: LAN
Source Networks: 192.168.77.0 192.168.79.0
Destination: VPN
Destination Networks: 10.10.10.0
VPN - LAN
Source: VPN
Source Networks: 10.10.10.0
Destination: LAN
Destination Networks: 192.168.77.0 192.168.79.0
- Firewall CLOUD
VPN IPSec
Local subnet: 10.10.10.0
Remote subnet: 192.168.77.0 192.168.79.0
Rules
LAN - VPN
Source: LAN
Source Networks: 10.10.10.0
Destination: VPN
Destination Networks: 192.168.77.0 192.168.79.0
VPN - LAN
Source: VPN
Source Networks: 192.168.77.0 192.168.79.0
Destination: LAN
Destination Networks: 10.10.10.0
