SD-RED60 offline for a long time after reboot

We have a SD-RED60 where we first noticed this behaviour when we applied the firmware 3.0.005 which is currently installed.

When we installed the firmware, it rebooted and came back about 65 minutes later. In the meantime I noticed several DHCP requests from that device on the XG. But that was all.

XG DHCP serves the IP for the device.

Now I did a "blank" config change on the device. It rebooted and is now offline for ~40 minutes and not coming back.

I can see a successful DHCP request and offer but the XG shows no active lease for the MAC of the RED. The lease time is from before the config change.

RED Change:

2021-08-04 07:09:04 GUI Successful myusername 172.xxx.xxx.xxx RED device 'R60001HDKPWFQA3' Settings were changed by 'myusername' from '172.xxx.xxx.xxx' using 'GUI'

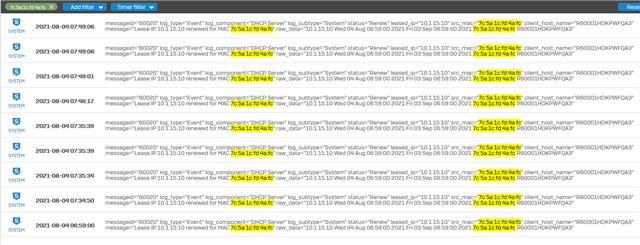

DHCP Lease for that IP screenshot taken at 07:51

XG430_WP02_SFOS 18.0.5 MR-5-Build586# tcpdump -i lag0.2602 -vn port 67
tcpdump: listening on lag0.2602, link-type EN10MB (Ethernet), capture size 262144 bytes
07:34:50.488254 lag0.2602, IN: IP (tos 0x0, ttl 64, id 0, offset 0, flags [none], proto UDP (17), length 328)
    0.0.0.0.68 > 255.255.255.255.67: BOOTP/DHCP, Request from 7c:5a:1c:fd:4a:fc, length 300, xid 0x1c4aaf1c, secs 24, Flags [none]
          Client-Ethernet-Address 7c:5a:1c:fd:4a:fc
          Vendor-rfc1048 Extensions
            Magic Cookie 0x63825363
            DHCP-Message Option 53, length 1: Discover
            MSZ Option 57, length 2: 576
            Parameter-Request Option 55, length 8:
              Subnet-Mask, Default-Gateway, Domain-Name-Server, Hostname
              Domain-Name, BR, NTP, Classless-Static-Route
            Vendor-Class Option 60, length 12: "udhcp 1.31.0"
            Hostname Option 12, length 15: "R60001HDKPWFQA3"
07:34:50.488387 lag0.2602, OUT: IP (tos 0x10, ttl 128, id 0, offset 0, flags [none], proto UDP (17), length 328)
    10.1.15.9.67 > 10.1.15.10.68: BOOTP/DHCP, Reply, length 300, xid 0x1c4aaf1c, secs 24, Flags [none]
          Your-IP 10.1.15.10
          Client-Ethernet-Address 7c:5a:1c:fd:4a:fc
          Vendor-rfc1048 Extensions
            Magic Cookie 0x63825363
            DHCP-Message Option 53, length 1: Offer
            Server-ID Option 54, length 4: 10.1.15.9
            Lease-Time Option 51, length 4: 2589850
            Subnet-Mask Option 1, length 4: 255.255.255.248
            Default-Gateway Option 3, length 4: 10.1.15.9
            Domain-Name-Server Option 6, length 4: 172.16.250.17
            Domain-Name Option 15, length 14: "ourdomain.name"
07:34:50.520239 lag0.2602, IN: IP (tos 0x0, ttl 64, id 0, offset 0, flags [none], proto UDP (17), length 329)
    0.0.0.0.68 > 255.255.255.255.67: BOOTP/DHCP, Request from 7c:5a:1c:fd:4a:fc, length 301, xid 0x1c4aaf1c, secs 24, Flags [none]
          Client-Ethernet-Address 7c:5a:1c:fd:4a:fc
          Vendor-rfc1048 Extensions
            Magic Cookie 0x63825363
            DHCP-Message Option 53, length 1: Request
            Requested-IP Option 50, length 4: 10.1.15.10
            Server-ID Option 54, length 4: 10.1.15.9
            MSZ Option 57, length 2: 576
            Parameter-Request Option 55, length 8:
              Subnet-Mask, Default-Gateway, Domain-Name-Server, Hostname
              Domain-Name, BR, NTP, Classless-Static-Route
            Vendor-Class Option 60, length 12: "udhcp 1.31.0"
            Hostname Option 12, length 15: "R60001HDKPWFQA3"
07:34:50.520352 lag0.2602, OUT: IP (tos 0x10, ttl 128, id 0, offset 0, flags [none], proto UDP (17), length 328)
    10.1.15.9.67 > 10.1.15.10.68: BOOTP/DHCP, Reply, length 300, xid 0x1c4aaf1c, secs 24, Flags [none]
          Your-IP 10.1.15.10
          Client-Ethernet-Address 7c:5a:1c:fd:4a:fc
          Vendor-rfc1048 Extensions
            Magic Cookie 0x63825363
            DHCP-Message Option 53, length 1: ACK
            Server-ID Option 54, length 4: 10.1.15.9
            Lease-Time Option 51, length 4: 2589850
            Subnet-Mask Option 1, length 4: 255.255.255.248
            Default-Gateway Option 3, length 4: 10.1.15.9
            Domain-Name-Server Option 6, length 4: 172.16.250.17
            Domain-Name Option 15, length 14: "ourdomain.name"
07:35:34.022815 lag0.2602, IN: IP (tos 0x0, ttl 64, id 41606, offset 0, flags [DF], proto UDP (17), length 328)
    10.1.15.10.68 > 10.1.15.9.67: BOOTP/DHCP, Request from 7c:5a:1c:fd:4a:fc, length 300, xid 0x1c4aaf1c, Flags [none]
          Client-IP 10.1.15.10
          Client-Ethernet-Address 7c:5a:1c:fd:4a:fc
          Vendor-rfc1048 Extensions
            Magic Cookie 0x63825363
            DHCP-Message Option 53, length 1: Request
            MSZ Option 57, length 2: 576
            Parameter-Request Option 55, length 8:
              Subnet-Mask, Default-Gateway, Domain-Name-Server, Hostname
              Domain-Name, BR, NTP, Classless-Static-Route
            Vendor-Class Option 60, length 12: "udhcp 1.31.0"
            Hostname Option 12, length 15: "R60001HDKPWFQA3"
07:35:34.022944 lag0.2602, OUT: IP (tos 0x0, ttl 64, id 37134, offset 0, flags [DF], proto UDP (17), length 328)
    10.1.15.9.67 > 10.1.15.10.68: BOOTP/DHCP, Reply, length 300, xid 0x1c4aaf1c, Flags [none]
          Client-IP 10.1.15.10
          Your-IP 10.1.15.10
          Client-Ethernet-Address 7c:5a:1c:fd:4a:fc
          Vendor-rfc1048 Extensions
            Magic Cookie 0x63825363
            DHCP-Message Option 53, length 1: ACK
            Server-ID Option 54, length 4: 10.1.15.9
            Lease-Time Option 51, length 4: 2589806
            Subnet-Mask Option 1, length 4: 255.255.255.248
            Default-Gateway Option 3, length 4: 10.1.15.9
            Domain-Name-Server Option 6, length 4: 172.16.250.17
            Domain-Name Option 15, length 14: "ourdomain.name"
07:35:39.184470 lag0.2602, IN: IP (tos 0x0, ttl 64, id 42516, offset 0, flags [DF], proto UDP (17), length 328)
    10.1.15.10.68 > 10.1.15.9.67: BOOTP/DHCP, Request from 7c:5a:1c:fd:4a:fc, length 300, xid 0x1c4aaf1c, Flags [none]
          Client-IP 10.1.15.10
          Client-Ethernet-Address 7c:5a:1c:fd:4a:fc
          Vendor-rfc1048 Extensions
            Magic Cookie 0x63825363
            DHCP-Message Option 53, length 1: Request
            MSZ Option 57, length 2: 576
            Parameter-Request Option 55, length 8:
              Subnet-Mask, Default-Gateway, Domain-Name-Server, Hostname
              Domain-Name, BR, NTP, Classless-Static-Route
            Vendor-Class Option 60, length 12: "udhcp 1.31.0"
            Hostname Option 12, length 15: "R60001HDKPWFQA3"
07:35:39.184551 lag0.2602, IN: IP (tos 0x0, ttl 64, id 42517, offset 0, flags [DF], proto UDP (17), length 328)
    10.1.15.10.68 > 10.1.15.9.67: BOOTP/DHCP, Request from 7c:5a:1c:fd:4a:fc, length 300, xid 0x1c4aaf1c, Flags [none]
          Client-IP 10.1.15.10
          Client-Ethernet-Address 7c:5a:1c:fd:4a:fc
          Vendor-rfc1048 Extensions
            Magic Cookie 0x63825363
            DHCP-Message Option 53, length 1: Request
            MSZ Option 57, length 2: 576
            Parameter-Request Option 55, length 8:
              Subnet-Mask, Default-Gateway, Domain-Name-Server, Hostname
              Domain-Name, BR, NTP, Classless-Static-Route
            Vendor-Class Option 60, length 12: "udhcp 1.31.0"
            Hostname Option 12, length 15: "R60001HDKPWFQA3"
07:35:39.184614 lag0.2602, OUT: IP (tos 0x0, ttl 64, id 37284, offset 0, flags [DF], proto UDP (17), length 328)
    10.1.15.9.67 > 10.1.15.10.68: BOOTP/DHCP, Reply, length 300, xid 0x1c4aaf1c, Flags [none]
          Client-IP 10.1.15.10
          Your-IP 10.1.15.10
          Client-Ethernet-Address 7c:5a:1c:fd:4a:fc
          Vendor-rfc1048 Extensions
            Magic Cookie 0x63825363
            DHCP-Message Option 53, length 1: ACK
            Server-ID Option 54, length 4: 10.1.15.9
            Lease-Time Option 51, length 4: 2589801
            Subnet-Mask Option 1, length 4: 255.255.255.248
            Default-Gateway Option 3, length 4: 10.1.15.9
            Domain-Name-Server Option 6, length 4: 172.16.250.17
            Domain-Name Option 15, length 14: "ourdomain.name"
07:35:39.262346 lag0.2602, OUT: IP (tos 0x0, ttl 64, id 37293, offset 0, flags [DF], proto UDP (17), length 328)
    10.1.15.9.67 > 10.1.15.10.68: BOOTP/DHCP, Reply, length 300, xid 0x1c4aaf1c, Flags [none]
          Client-IP 10.1.15.10
          Your-IP 10.1.15.10
          Client-Ethernet-Address 7c:5a:1c:fd:4a:fc
          Vendor-rfc1048 Extensions
            Magic Cookie 0x63825363
            DHCP-Message Option 53, length 1: ACK
            Server-ID Option 54, length 4: 10.1.15.9
            Lease-Time Option 51, length 4: 2589801
            Subnet-Mask Option 1, length 4: 255.255.255.248
            Default-Gateway Option 3, length 4: 10.1.15.9
            Domain-Name-Server Option 6, length 4: 172.16.250.17
            Domain-Name Option 15, length 14: "ourdomain.name"

RED Log:
Wed Aug 4 07:04:11 2021 REDD INFO R60001HDKPWFQA3/SDRED60-locationname transfered bytes TX: 0 RX: 0
Wed Aug 4 07:09:29 2021 REDD INFO Device config value 'mac' changed from '00:d1:18:58:c5:38' to '00:26:7d:68:d5:1c'
Wed Aug 4 07:09:30 2021 REDD INFO R60001HDKPWFQA3/SDRED60-locationname transfered bytes TX: 0 RX: 0
Wed Aug 4 07:14:31 2021 REDD INFO R60001HDKPWFQA3/SDRED60-locationname transfered bytes TX: 0 RX: 0
Wed Aug 4 07:19:32 2021 REDD INFO R60001HDKPWFQA3/SDRED60-locationname transfered bytes TX: 0 RX: 0
Wed Aug 4 07:24:33 2021 REDD INFO R60001HDKPWFQA3/SDRED60-locationname transfered bytes TX: 0 RX: 0
Wed Aug 4 07:29:34 2021 REDD INFO R60001HDKPWFQA3/SDRED60-locationname transfered bytes TX: 0 RX: 0
Wed Aug 4 07:34:35 2021 REDD INFO R60001HDKPWFQA3/SDRED60-locationname transfered bytes TX: 0 RX: 0
Wed Aug 4 07:35:41 2021 REDD INFO server: New connection from 10.1.15.10 (cipher ECDHE-RSA-AES256-GCM-SHA384), rev1
Wed Aug 4 07:35:41 2021 REDD INFO connected OK, pushing config
Wed Aug 4 07:35:42 2021 REDD INFO command '{"data":{"version":"0"},"type":"INIT_CONNECTION"}'
Wed Aug 4 07:35:42 2021 REDD INFO Initializing connection running protocol version 0
Wed Aug 4 07:35:42 2021 REDD INFO Sending json message {"data":{},"type":"WELCOME"}
Wed Aug 4 07:35:43 2021 REDD INFO command '{"data":{"poe_port2_status":{"current":0,"FETok":true,"detectionOn":false,"pdstate":0,"port":2,"pdclass":-3,"classificationOn":false,"classFail":false,"TPPL":0,"good":false,"type":"port","priority_str":"low","PMoff":false,"MSCCcap":false,"priority":2,"mode":0,"pdstate_str":"unknown","volt":0,"PPL":0,"pdclass_power_limit":0,"FEToverTemp":false,"isAT":false,"power":false,"watt":0,"mode_str":"shutdown"},"poe_port1_status":{"current":0,"FETok":true,"detectionOn":false,"pdstate":0,"priority_str":"high","pdclass":-3,"classificationOn":false,"classFail":false,"TPPL":0,"good":false,"type":"port","port":1,"PMoff":false,"MSCCcap":false,"watt":0,"power":false,"isAT":false,"FEToverTemp":false,"PPL":0,"pdclass_power_limit":0,"volt":0,"pdstate_str":"unknown","mode":0,"priority":0,"mode_str":"shutdown"},"poe_chip_status":{"type":"chip","id":46,"totalPower":0,"totalPowerReg":0,"temperature":63.24,"volt":53.3319,"totalPowerCalc":0,"maxTotalPower":34,"firmware":12},"sfp_status":{"identifier":"SFP","connector":"LC","module_voltage":0,"module_temperature":0,"module_connected":"true","laser_rx_mW":0,"laser_wavelength":"1310nm","vendor_name":"ATI ","laser_tx_dBm":"0.0000","laser_tx_mW":0,"laser_rx_dBm":0,"laser_bias_current_mA":0,"extended_identifier":"GBIC\/SFP defined by 2-wire interface ID"}},"type":"STATUS"}'
Wed Aug 4 07:35:44 2021 REDD INFO command '{"data":{},"type":"CONFIG_REQ"}'
Wed Aug 4 07:35:44 2021 REDD INFO Sending json message {"data":{"bridge_netmask":24,"deployment_mode":"offline","manual_address":"","password":"","version_ng_red60":"1-1125-15fdee6b8-fda4803","lan1_vids":"254,1052,1053,1054","lan2_mode":"tagged","asg_ca":"[removed]","activate_modem":0,"tunnel_id":21,"version_red60":"1-1125-15fdee6b8-fda4803","asg_key":"[removed]","manual2_defgw":"","bridge_address":"0.0.0.0","hub_hostname":"10.1.15.9","htp_server":"10.1.15.9","fullbr_domains":"","lan2_vids":"254,1052,1053,1054","lan4_mode":"unused","manual_dns":"","username":"","mobile_network":"gsm","pin":"","poe_port2":0,"manual_netmask":"","hostname_balancing":"failover","tunnel_compression":0,"lan3_vids":"254,1052,1053,1054","debug_level":0,"manual_defgw":"","prev_unlock_code":"dScHiLGg","unlock_code":"VbhQaXdx","poe_port1":0,"manual2_address":"","uplink2_mode":"dhcp","lan4_vids":"","hub2_hostname":"","lanport_mode":"vlan","uplink_mode":"dhcp","type":"red60","manual2_netmask":"","mac_filter_list":"","tunnel_compression_algorithm":"lzo","lan1_mode":"tagged","bridge_proto":"none","lan3_mode":"tagged","red_id":"R60001HDKPWFQA3","dial_string":"*99#","fullbr_dns":"","branchname":"SDRED60-locationname","redinterface":"reds21","responsivity":"low","split_networks":"1.2.3.4","manual2_dns":"","mac_filter_type":"none","apn":"","route_mode":"default","mac":"00:26:7d:68:d5:1c","uplink_balancing":"failover","asg_cert":"[removed]","htp_port":"4444"},"type":"CONFIG_REP"}
Wed Aug 4 07:35:44 2021 REDD INFO command '{"data":{"message":"Received device configuration from UTM using network fallback mode successfully","type":"NEW_CONFIG"},"type":"DISCONNECT"}'
Wed Aug 4 07:35:44 2021 REDD INFO Disconnecting: Received device configuration from UTM using network fallback mode successfully
Wed Aug 4 07:35:45 2021 REDD INFO R60001HDKPWFQA3/SDRED60-locationname is now disconnected
Wed Aug 4 07:35:45 2021 REDD INFO device is disconnected.
Wed Aug 4 07:39:36 2021 REDD INFO R60001HDKPWFQA3/SDRED60-locationname transfered bytes TX: 0 RX: 0
Wed Aug 4 07:44:37 2021 REDD INFO R60001HDKPWFQA3/SDRED60-locationname transfered bytes TX: 0 RX: 0

This thread was automatically locked due to age.

0 LHerzog over 3 years ago

It just came back after beeing 40 minutes offline

Wed Aug 4 07:39:36 2021 REDD INFO R60001HDKPWFQA3/SDRED60-locationname transfered bytes TX: 0 RX: 0
Wed Aug 4 07:44:37 2021 REDD INFO R60001HDKPWFQA3/SDRED60-locationname transfered bytes TX: 0 RX: 0
Wed Aug 4 07:49:08 2021 REDD INFO server: New connection from 10.1.15.10 (cipher ECDHE-RSA-AES256-GCM-SHA384), rev1
Wed Aug 4 07:49:09 2021 REDD INFO connected OK, pushing config
Wed Aug 4 07:49:10 2021 REDD INFO command '{"data":{"version":"0"},"type":"INIT_CONNECTION"}'
Wed Aug 4 07:49:10 2021 REDD INFO Initializing connection running protocol version 0
Wed Aug 4 07:49:10 2021 REDD INFO Sending json message {"data":{},"type":"WELCOME"}
Wed Aug 4 07:49:10 2021 REDD INFO command '{"data":{"poe_port2_status":{"current":0,"FETok":true,"detectionOn":false,"pdstate":0,"port":2,"pdclass":-3,"classificationOn":false,"classFail":false,"TPPL":0,"good":false,"type":"port","priority_str":"low","PMoff":false,"MSCCcap":false,"priority":2,"mode":0,"pdstate_str":"unknown","volt":0,"PPL":0,"pdclass_power_limit":0,"FEToverTemp":false,"isAT":false,"power":false,"watt":0,"mode_str":"shutdown"},"poe_port1_status":{"current":0,"FETok":true,"detectionOn":false,"pdstate":0,"priority_str":"high","pdclass":-3,"classificationOn":false,"classFail":false,"TPPL":0,"good":false,"type":"port","port":1,"PMoff":false,"MSCCcap":false,"watt":0,"power":false,"isAT":false,"FEToverTemp":false,"PPL":0,"pdclass_power_limit":0,"volt":0,"pdstate_str":"unknown","mode":0,"priority":0,"mode_str":"shutdown"},"poe_chip_status":{"type":"chip","id":46,"totalPower":0,"totalPowerReg":0,"temperature":63.24,"volt":53.34357,"totalPowerCalc":0,"maxTotalPower":34,"firmware":12},"sfp_status":{"identifier":"SFP","connector":"LC","module_voltage":0,"module_temperature":0,"module_connected":"true","laser_rx_mW":0,"laser_wavelength":"1310nm","vendor_name":"ATI ","laser_tx_dBm":"0.0000","laser_tx_mW":0,"laser_rx_dBm":0,"laser_bias_current_mA":0,"extended_identifier":"GBIC\/SFP defined by 2-wire interface ID"}},"type":"STATUS"}'
Wed Aug 4 07:49:11 2021 REDD INFO command '{"data":{},"type":"CONFIG_REQ"}'
Wed Aug 4 07:49:11 2021 REDD INFO Sending json message {"data":{"asg_key":"[removed]","tunnel_id":21,"version_red60":"1-1125-15fdee6b8-fda4803","version_ng_red60":"1-1125-15fdee6b8-fda4803","asg_ca":"[removed]","activate_modem":0,"lan2_mode":"tagged","lan1_vids":"254,1052,1053,1054","bridge_netmask":24,"manual_address":"","password":"","deployment_mode":"offline","manual_netmask":"","poe_port2":0,"pin":"","lan3_vids":"254,1052,1053,1054","tunnel_compression":0,"hostname_balancing":"failover","username":"","manual_dns":"","mobile_network":"gsm","lan4_mode":"unused","bridge_address":"0.0.0.0","hub_hostname":"10.1.15.9","htp_server":"10.1.15.9","fullbr_domains":"","manual2_defgw":"","lan2_vids":"254,1052,1053,1054","uplink_mode":"dhcp","lanport_mode":"vlan","hub2_hostname":"","tunnel_compression_algorithm":"lzo","lan1_mode":"tagged","mac_filter_list":"","type":"red60","manual2_netmask":"","uplink2_mode":"dhcp","manual2_address":"","lan4_vids":"","poe_port1":0,"prev_unlock_code":"dScHiLGg","unlock_code":"VbhQaXdx","manual_defgw":"","debug_level":0,"uplink_balancing":"failover","htp_port":"4444","asg_cert":"[removed]","mac_filter_type":"none","apn":"","manual2_dns":"","mac":"00:26:7d:68:d5:1c","route_mode":"default","redinterface":"reds21","fullbr_dns":"","dial_string":"*99#","branchname":"SDRED60-locationname","split_networks":"1.2.3.4","responsivity":"low","red_id":"R60001HDKPWFQA3","lan3_mode":"tagged","bridge_proto":"none"},"type":"CONFIG_REP"}
Wed Aug 4 07:49:15 2021 REDD INFO command '{"data":{"key1":"q7Z2oo+xxxxxxxxxxxxx=","key0":"xxxxxxxxxxxxxxxx=","key_active":0},"type":"SET_KEY_REQ"}'
Wed Aug 4 07:49:15 2021 REDD INFO Sending json message {"type":"SET_KEY_REP","data":{}}
Wed Aug 4 07:49:16 2021 REDD INFO command '{"data":{"seq":0},"type":"PING"}'
Wed Aug 4 07:49:16 2021 REDD INFO R60001HDKPWFQA3/SDRED60-locationname is now connected
Wed Aug 4 07:49:16 2021 REDD INFO Sending json message {"data":{"seq":0},"type":"PONG"}
Wed Aug 4 07:49:17 2021 REDD INFO command '{"data":{"switch_port_status_v2":{"lan3":"Down","lan1":"1Gb\/s","lan4":"Down","lan2":"Down"},"wan1_ip":"10.1.15.10","uplink":"WAN1","uplink_state":"0"},"type":"STATUS"}'
Wed Aug 4 07:49:32 2021 REDD INFO command '{"data":{"seq":1},"type":"PING"}'
Wed Aug 4 07:49:32 2021 REDD INFO Sending json message {"type":"PONG","data":{"seq":1}}
Wed Aug 4 07:49:38 2021 REDD INFO R60001HDKPWFQA3/SDRED60-locationname transfered bytes TX: 1622416 RX: 9713948
Wed Aug 4 07:49:48 2021 REDD INFO command '{"data":{"seq":2},"type":"PING"}'
Wed Aug 4 07:49:48 2021 REDD INFO Sending json message {"data":{"seq":2},"type":"PONG"}
Wed Aug 4 07:50:04 2021 REDD INFO command '{"data":{"seq":3},"type":"PING"}'
Wed Aug 4 07:50:04 2021 REDD INFO Sending json message {"data":{"seq":3},"type":"PONG"}
Wed Aug 4 07:50:20 2021 REDD INFO command '{"data":{"seq":4},"type":"PING"}'
Wed Aug 4 07:50:20 2021 REDD INFO Sending json message {"type":"PONG","data":{"seq":4}}

07:48:17.851276 lag0.2602, IN: IP (tos 0x0, ttl 64, id 0, offset 0, flags [none], proto UDP (17), length 328)
    0.0.0.0.68 > 255.255.255.255.67: BOOTP/DHCP, Request from 7c:5a:1c:fd:4a:fc, length 300, xid 0xc82b5b67, secs 24, Flags [none]
          Client-Ethernet-Address 7c:5a:1c:fd:4a:fc
          Vendor-rfc1048 Extensions
            Magic Cookie 0x63825363
            DHCP-Message Option 53, length 1: Discover
            MSZ Option 57, length 2: 576
            Parameter-Request Option 55, length 8:
              Subnet-Mask, Default-Gateway, Domain-Name-Server, Hostname
              Domain-Name, BR, NTP, Classless-Static-Route
            Vendor-Class Option 60, length 12: "udhcp 1.31.0"
            Hostname Option 12, length 15: "R60001HDKPWFQA3"
07:48:17.851353 lag0.2602, OUT: IP (tos 0x10, ttl 128, id 0, offset 0, flags [none], proto UDP (17), length 328)
    10.1.15.9.67 > 10.1.15.10.68: BOOTP/DHCP, Reply, length 300, xid 0xc82b5b67, secs 24, Flags [none]
          Your-IP 10.1.15.10
          Client-Ethernet-Address 7c:5a:1c:fd:4a:fc
          Vendor-rfc1048 Extensions
            Magic Cookie 0x63825363
            DHCP-Message Option 53, length 1: Offer
            Server-ID Option 54, length 4: 10.1.15.9
            Lease-Time Option 51, length 4: 2589043
            Subnet-Mask Option 1, length 4: 255.255.255.248
            Default-Gateway Option 3, length 4: 10.1.15.9
            Domain-Name-Server Option 6, length 4: 172.16.250.17
            Domain-Name Option 15, length 14: "ourdomain.name"
07:48:17.883284 lag0.2602, IN: IP (tos 0x0, ttl 64, id 0, offset 0, flags [none], proto UDP (17), length 329)
    0.0.0.0.68 > 255.255.255.255.67: BOOTP/DHCP, Request from 7c:5a:1c:fd:4a:fc, length 301, xid 0xc82b5b67, secs 24, Flags [none]
          Client-Ethernet-Address 7c:5a:1c:fd:4a:fc
          Vendor-rfc1048 Extensions
            Magic Cookie 0x63825363
            DHCP-Message Option 53, length 1: Request
            Requested-IP Option 50, length 4: 10.1.15.10
            Server-ID Option 54, length 4: 10.1.15.9
            MSZ Option 57, length 2: 576
            Parameter-Request Option 55, length 8:
              Subnet-Mask, Default-Gateway, Domain-Name-Server, Hostname
              Domain-Name, BR, NTP, Classless-Static-Route
            Vendor-Class Option 60, length 12: "udhcp 1.31.0"
            Hostname Option 12, length 15: "R60001HDKPWFQA3"
07:48:17.883375 lag0.2602, OUT: IP (tos 0x10, ttl 128, id 0, offset 0, flags [none], proto UDP (17), length 328)
    10.1.15.9.67 > 10.1.15.10.68: BOOTP/DHCP, Reply, length 300, xid 0xc82b5b67, secs 24, Flags [none]
          Your-IP 10.1.15.10
          Client-Ethernet-Address 7c:5a:1c:fd:4a:fc
          Vendor-rfc1048 Extensions
            Magic Cookie 0x63825363
            DHCP-Message Option 53, length 1: ACK
            Server-ID Option 54, length 4: 10.1.15.9
            Lease-Time Option 51, length 4: 2589043
            Subnet-Mask Option 1, length 4: 255.255.255.248
            Default-Gateway Option 3, length 4: 10.1.15.9
            Domain-Name-Server Option 6, length 4: 172.16.250.17
            Domain-Name Option 15, length 14: "ourdomain.name"
07:49:01.526496 lag0.2602, IN: IP (tos 0x0, ttl 64, id 11200, offset 0, flags [DF], proto UDP (17), length 328)
    10.1.15.10.68 > 10.1.15.9.67: BOOTP/DHCP, Request from 7c:5a:1c:fd:4a:fc, length 300, xid 0xc82b5b67, Flags [none]
          Client-IP 10.1.15.10
          Client-Ethernet-Address 7c:5a:1c:fd:4a:fc
          Vendor-rfc1048 Extensions
            Magic Cookie 0x63825363
            DHCP-Message Option 53, length 1: Request
            MSZ Option 57, length 2: 576
            Parameter-Request Option 55, length 8:
              Subnet-Mask, Default-Gateway, Domain-Name-Server, Hostname
              Domain-Name, BR, NTP, Classless-Static-Route
            Vendor-Class Option 60, length 12: "udhcp 1.31.0"
            Hostname Option 12, length 15: "R60001HDKPWFQA3"
07:49:01.526591 lag0.2602, OUT: IP (tos 0x0, ttl 64, id 22013, offset 0, flags [DF], proto UDP (17), length 328)
    10.1.15.9.67 > 10.1.15.10.68: BOOTP/DHCP, Reply, length 300, xid 0xc82b5b67, Flags [none]
          Client-IP 10.1.15.10
          Your-IP 10.1.15.10
          Client-Ethernet-Address 7c:5a:1c:fd:4a:fc
          Vendor-rfc1048 Extensions
            Magic Cookie 0x63825363
            DHCP-Message Option 53, length 1: ACK
            Server-ID Option 54, length 4: 10.1.15.9
            Lease-Time Option 51, length 4: 2588999
            Subnet-Mask Option 1, length 4: 255.255.255.248
            Default-Gateway Option 3, length 4: 10.1.15.9
            Domain-Name-Server Option 6, length 4: 172.16.250.17
            Domain-Name Option 15, length 14: "ourdomain.name"
07:49:06.686826 lag0.2602, IN: IP (tos 0x0, ttl 64, id 11797, offset 0, flags [DF], proto UDP (17), length 328)
    10.1.15.10.68 > 10.1.15.9.67: BOOTP/DHCP, Request from 7c:5a:1c:fd:4a:fc, length 300, xid 0xc82b5b67, Flags [none]
          Client-IP 10.1.15.10
          Client-Ethernet-Address 7c:5a:1c:fd:4a:fc
          Vendor-rfc1048 Extensions
            Magic Cookie 0x63825363
            DHCP-Message Option 53, length 1: Request
            MSZ Option 57, length 2: 576
            Parameter-Request Option 55, length 8:
              Subnet-Mask, Default-Gateway, Domain-Name-Server, Hostname
              Domain-Name, BR, NTP, Classless-Static-Route
            Vendor-Class Option 60, length 12: "udhcp 1.31.0"
            Hostname Option 12, length 15: "R60001HDKPWFQA3"
07:49:06.686904 lag0.2602, IN: IP (tos 0x0, ttl 64, id 11798, offset 0, flags [DF], proto UDP (17), length 328)
    10.1.15.10.68 > 10.1.15.9.67: BOOTP/DHCP, Request from 7c:5a:1c:fd:4a:fc, length 300, xid 0xc82b5b67, Flags [none]
          Client-IP 10.1.15.10
          Client-Ethernet-Address 7c:5a:1c:fd:4a:fc
          Vendor-rfc1048 Extensions
            Magic Cookie 0x63825363
            DHCP-Message Option 53, length 1: Request
            MSZ Option 57, length 2: 576
            Parameter-Request Option 55, length 8:
              Subnet-Mask, Default-Gateway, Domain-Name-Server, Hostname
              Domain-Name, BR, NTP, Classless-Static-Route
            Vendor-Class Option 60, length 12: "udhcp 1.31.0"
            Hostname Option 12, length 15: "R60001HDKPWFQA3"
07:49:06.686937 lag0.2602, OUT: IP (tos 0x0, ttl 64, id 22914, offset 0, flags [DF], proto UDP (17), length 328)
    10.1.15.9.67 > 10.1.15.10.68: BOOTP/DHCP, Reply, length 300, xid 0xc82b5b67, Flags [none]
          Client-IP 10.1.15.10
          Your-IP 10.1.15.10
          Client-Ethernet-Address 7c:5a:1c:fd:4a:fc
          Vendor-rfc1048 Extensions
            Magic Cookie 0x63825363
            DHCP-Message Option 53, length 1: ACK
            Server-ID Option 54, length 4: 10.1.15.9
            Lease-Time Option 51, length 4: 2588994
            Subnet-Mask Option 1, length 4: 255.255.255.248
            Default-Gateway Option 3, length 4: 10.1.15.9
            Domain-Name-Server Option 6, length 4: 172.16.250.17
            Domain-Name Option 15, length 14: "ourdomain.name"
07:49:06.769990 lag0.2602, OUT: IP (tos 0x0, ttl 64, id 22930, offset 0, flags [DF], proto UDP (17), length 328)
    10.1.15.9.67 > 10.1.15.10.68: BOOTP/DHCP, Reply, length 300, xid 0xc82b5b67, Flags [none]
          Client-IP 10.1.15.10
          Your-IP 10.1.15.10
          Client-Ethernet-Address 7c:5a:1c:fd:4a:fc
          Vendor-rfc1048 Extensions
            Magic Cookie 0x63825363
            DHCP-Message Option 53, length 1: ACK
            Server-ID Option 54, length 4: 10.1.15.9
            Lease-Time Option 51, length 4: 2588994
            Subnet-Mask Option 1, length 4: 255.255.255.248
            Default-Gateway Option 3, length 4: 10.1.15.9
            Domain-Name-Server Option 6, length 4: 172.16.250.17
            Domain-Name Option 15, length 14: "ourdomain.name"

XG DHCP Server still showing the old date for the lease, probably not so important but is that correct? Should'nt it have a time stamp of 07:49?

Screenshot from 08:05

2021-08-04 07:48:17

messageid="60020" log_type="Event" log_component="DHCP Server" log_subtype="System" status="Renew" leased_ip="10.1.15.10" src_mac="7c:5a:1c:fd:4a:fc" client_host_name="R60001HDKPWFQA3" message="Lease IP 10.1.15.10 renewed for MAC 7c:5a:1c:fd:4a:fc" raw_data="10.1.15.10 Wed 04 Aug 06:59:00 2021 Fri 03 Sep 06:59:00 2021 7c:5a:1c:fd:4a:fc R60001HDKPWFQA3"

In my old protocols I found info for the time beeing offline after firmware upgrad-

2021-07-03 08:12:05 RED Connected R60001HDKPWFQA3/SDRED60-locationname is now re-connected after 164000 ms
2021-07-03 07:09:39 RED Disconnected R60001HDKPWFQA3/SDRED60-locationname is now disconnected

An other SD-RED60 was online after a few minutes, like all the other REDs we have.
