Hello,
I ask for help please since I want to configure a VLAN on my LAN network without success
My network lan is 172.16.2.0/24 and the vlan that I want to configure is 192.168.200.0/24, the LAN network is configured on port 1 of my Sophos XG 135 SFOS 18.0.5 MR-5-Build586
The switch is a ZyxEL GS1900-24E

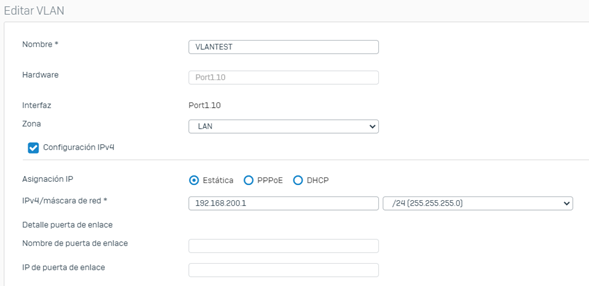

This is the VLAN configuration created

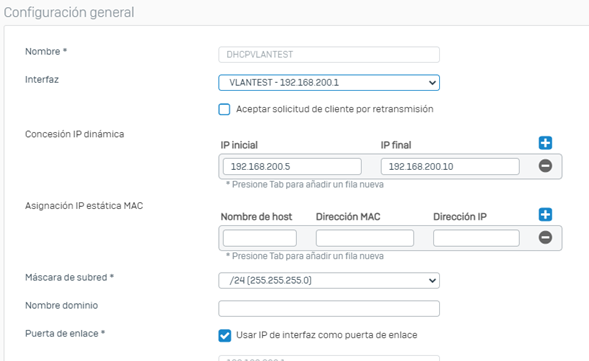

The DHCP configured for the VLAN

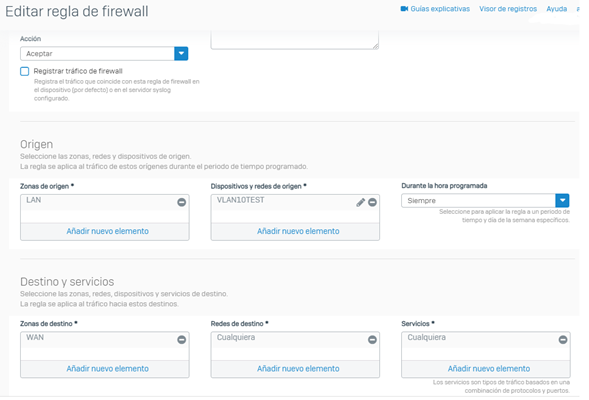

The firewall rule for the VLAN
On the switch enable trunk mode on the port that connects to the SOPHOS
and then mark as Untagged the switch port to which I want to assign the VLAN,

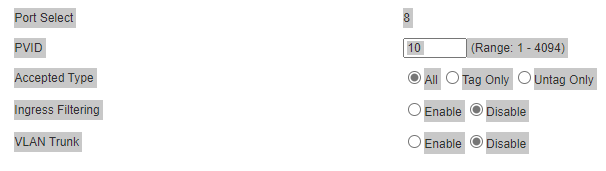

Finally, because port 8 has a PC directly connected, enter the configuration and assign the PVID of the VLAN
Finally, I would like to comment that the pc that I want to be in VLAN 10 does not receive DHCP or any network, if I assign a static IP within the range of the VLAN (192.168.200.0/24) there is no ping to the configured gateway in the SOPHOS, I hope you can help me, thank you very much.
