Total daily traffic

Santrino

Good evening,
a customer asks me for a daily report with the total traffic carried out by a specific location.
I need to know the total traffic without differentiating for protocols, destinations or other.
How can I produce it?

I have made several attempts, but it seems to me that, on the XG, to have the total daily traffic, I have to add several data.
Am I wrong?

Thanks in advance to anyone who can give me support!



This thread was automatically locked due to age.
Parents
  • +1

    Hello Santrino,

    Thank you for contacting the Sophos Community.

    If you want to know how much traffic went out the WAN interface, you can check this on Network >> WAN Link Manager >> Period = Weekly >> Show

    The information about the Total Network Traffic will show there.

    Regards,

  • 0 in reply to emmosophos

    Hello Emmanuel and thank you for your support.
    Now I have another question ... on WAN Link Manager I see a value (for example 130 GB on download ) but on Report section I can't find a valid report wich show details about download traffic ... I see values of about only 30 GB traffic.

    How can I provide my customer with a valid detail of the aforementioned download traffic (for example by host)?

    Thank you again!

  • +1 in reply to Santrino

    Hi,

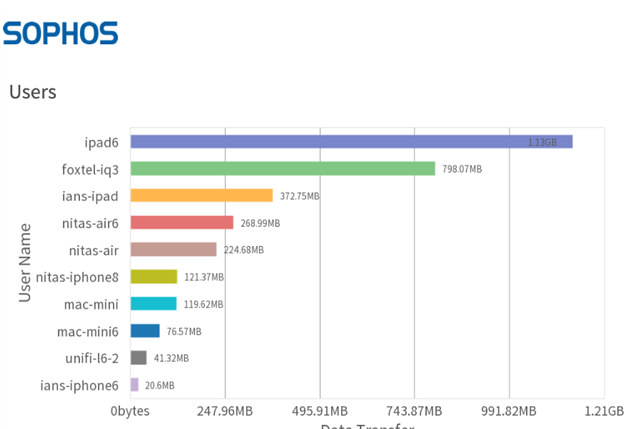

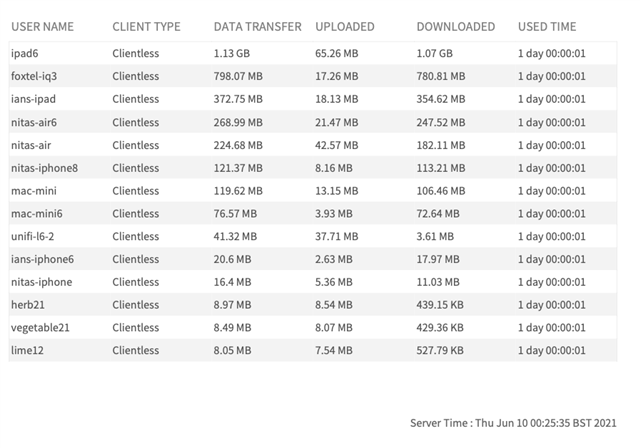

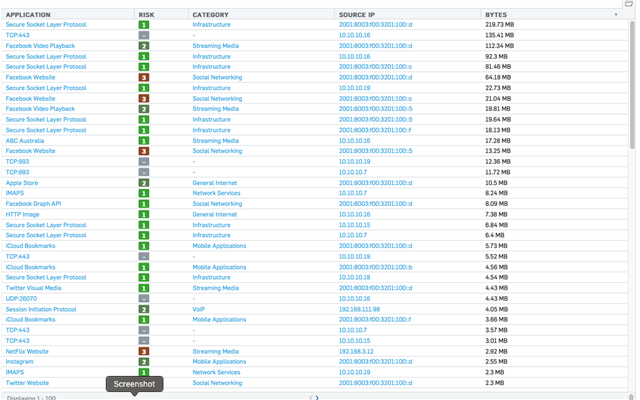

    the following are two examples from my daily reports. You can also get more details using CM for the firewall. If you like I can copy part of a report from CM.

    The limitations of the report generated by the XG is 50 lines (users). My users are setup using clientless accounts.

    Ian

  • 0 in reply to rfcat_vk

    Hi @rfcat_vk and thanks a lot!
    I would appreciate receiving part of the report.

    I do not have the possibility to view the users because at this client I only have the firewall without endpoint installations.
    I should create a report that lists the hosts and not the users.

    Do you think it is possible to do this?

  • 0 in reply to Santrino

    Hi,

    to add value and make it usable by yet client you would need to export this to a spreadsheet to summarise the table.

    I suspect but haven't tried to consolidate the report.

    Ian

    CM is basically free if you don't want more than 7 days history.

    I have checked the CM and to use the export function you appear to need a licence access.

Reply
  • 0 in reply to Santrino

    Hi,

    to add value and make it usable by yet client you would need to export this to a spreadsheet to summarise the table.

    I suspect but haven't tried to consolidate the report.

    Ian

    CM is basically free if you don't want more than 7 days history.

    I have checked the CM and to use the export function you appear to need a licence access.
