IPsec Routed-Based VPN - How to config static routes or SD-WAN rules with failover tunnels

Lucas Zupan1

Hello.

I have 2 sites with 2 ISP each other: Site 1 (ISP A, ISP B), Site 2 (ISP X, ISP Y). So I think to config 4 tunnels like we did with Site-to-Site IPsec VPN:

Tunnel A-X, Tunnel A-Y, Tunnel B-X, Tunnel B-Y.

Site 1 publish this networks (192.168.10.0/24, 192.168.20.0/24, 192.168.30.0/24). Site 2 publish this networks (192.168.60.0/24, 192.168.70.0/24)

xfmr interfaces:

Site 1 ------------------------------ Site 2

AX: 10.1.0.1/30 ----------------- AX: 10.1.0.2/30

AY: 10.2.0.1/30 -----------------  AY: 10.2.0.2/30

BX: 10.10.0.1/30 --------------- BX: 10.10.0.2/30

BY: 10.11.0.1/30 --------------- BY: 10.11.0.2/30

Now how must I config same routes with different gateways??



This thread was automatically locked due to age.
  • FormerMember
    0 FormerMember

    Hi ,

    Thank you for reaching out to Sophos Community.

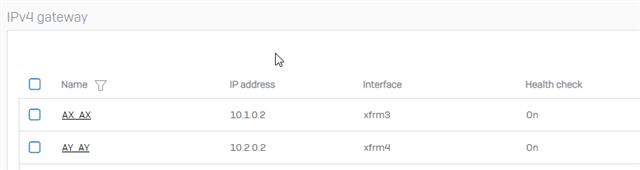

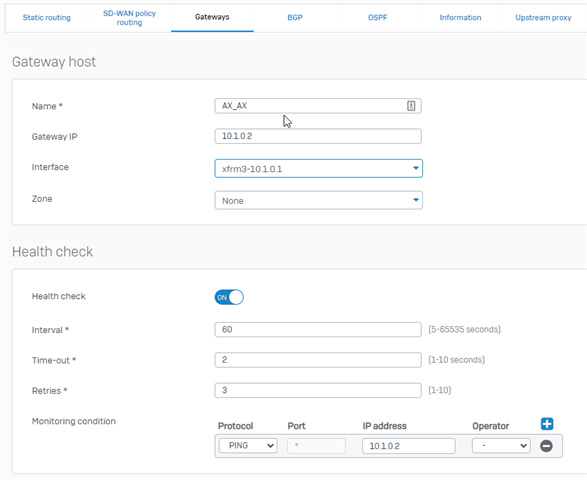

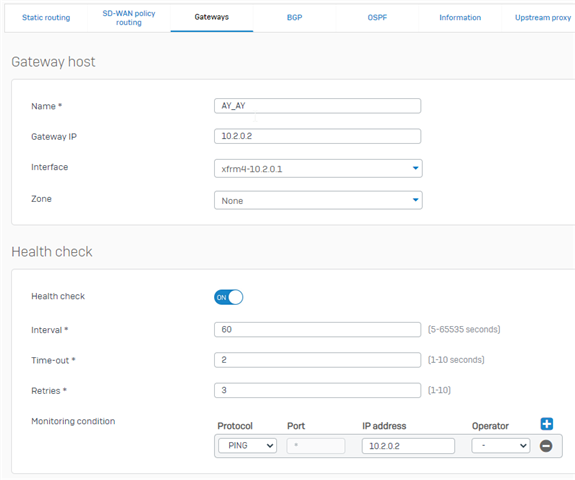

    You need to create a custom gateway with xfrm tunnel interface at both ends.

    Here are the sample snapshots for reference.

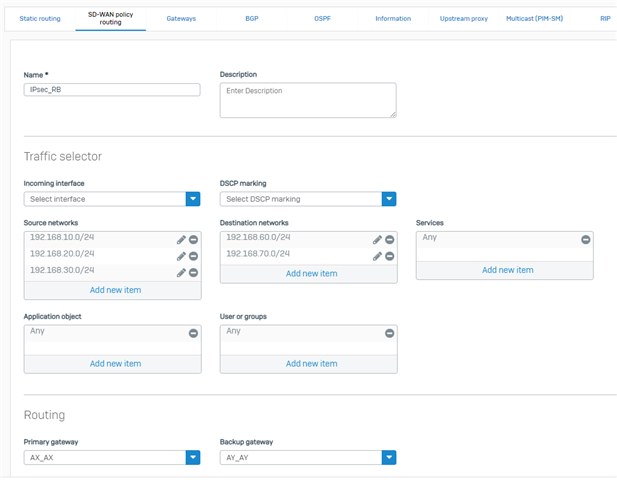

    Then, create an SD-WAN policy route with required source & destination networks, and select primary & backup gateway as custom gateways.

    A similar configuration needs to be done at SiteB.

  • 0 in reply to FormerMember

    Hello Thank you for  your answer!!

    What about with routes from "ISP B"?  this will be SAME that routes for "ISP A" with diferent gateway. And in SD-WAN policy we can only add one backup gateway.

    I have no problem with config traditional Site-to-Site IPsec tunnels, only want to try this new feature.
