SSL VPN DISCONNECTING FREQUENTLY

DEAR FRIENDS

SSL VPN DISCONNECTING FREQUENTLY with 2mins after connecting. pls help me to sort out this problem.am using xg135 running in latest frim ware SFOS 18.0.5 MR-5-Build586

This thread was automatically locked due to age.

Top Replies

FormerMember over 4 years ago +1 suggested

Hi oriens global , Thank you for reaching out to Sophos Community. Request to share SSL VPN client logs of the time of disconnection. ===> Right-click on SSL VPN client logo > View Log Also, please…

Parents

0 FormerMember over 4 years ago

Hi oriens global,

Thank you for reaching out to Sophos Community.

Request to share SSL VPN client logs of the time of disconnection. ===> Right-click on SSL VPN client logo > View Log

Also, please share a snapshot of 'Cryptographic settings' from SSL VPN settings.
Cancel
Vote Up +1 Vote Down

Cancel
0 oriens global over 4 years ago in reply to FormerMember

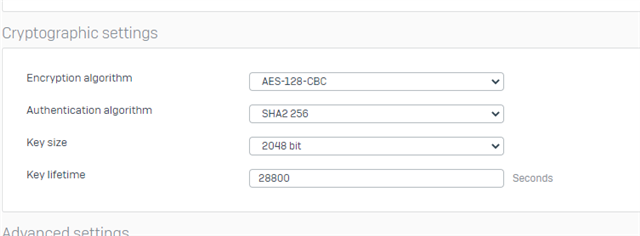

i have attached my cryptographic settings
Cancel
Vote Up 0 Vote Down

Cancel
0 FormerMember over 4 years ago in reply to oriens global

Alright, keep it under observation and if the issue persists again then please share SSL VPN client logs here or in PM.
Cancel
Vote Up 0 Vote Down

Cancel
0 oriens global over 4 years ago in reply to FormerMember

sure
Cancel
Vote Up 0 Vote Down

Cancel

0 oriens global over 4 years ago in reply to oriens global

Fullscreen 2047.sysadmin_ssl_vpn_config.log Download

Thu May 27 09:54:21 2021 OpenVPN 2.3.8 i686-w64-mingw32 [SSL (OpenSSL)] [LZO] [IPv6] built on Jul  3 2017
Thu May 27 09:54:21 2021 library versions: OpenSSL 1.0.2l  25 May 2017, LZO 2.09
Enter Management Password:
Thu May 27 09:54:21 2021 MANAGEMENT: TCP Socket listening on [AF_INET]127.0.0.1:25341
Thu May 27 09:54:21 2021 Need hold release from management interface, waiting...
Thu May 27 09:54:21 2021 MANAGEMENT: Client connected from [AF_INET]127.0.0.1:25341
Thu May 27 09:54:21 2021 MANAGEMENT: CMD 'state on'
Thu May 27 09:54:21 2021 MANAGEMENT: CMD 'log all on'
Thu May 27 09:54:21 2021 MANAGEMENT: CMD 'hold off'
Thu May 27 09:54:21 2021 MANAGEMENT: CMD 'hold release'
Thu May 27 09:54:31 2021 MANAGEMENT: CMD 'username "Auth" "sysadmin"'
Thu May 27 09:54:31 2021 MANAGEMENT: CMD 'password [...]'
Thu May 27 09:54:32 2021 Socket Buffers: R=[65536->65536] S=[65536->65536]
Thu May 27 09:54:32 2021 Attempting to establish TCP connection with [AF_INET]10.11.29.180:8443 [nonblock]
Thu May 27 09:54:32 2021 MANAGEMENT: >STATE:1622089472,TCP_CONNECT,,,,,,
Thu May 27 09:54:42 2021 TCP: connect to [AF_INET]10.11.29.180:8443 failed, will try again in 5 seconds: The system tried to join a drive to a directory on a joined drive.
Thu May 27 09:54:42 2021 SIGUSR1[soft,init_instance] received, process restarting
Thu May 27 09:54:42 2021 MANAGEMENT: >STATE:1622089482,RECONNECTING,init_instance,,,,,
Thu May 27 09:54:42 2021 Restart pause, 5 second(s)
Thu May 27 09:54:47 2021 Socket Buffers: R=[65536->65536] S=[65536->65536]
Thu May 27 09:54:47 2021 Attempting to establish TCP connection with [AF_INET]x.x.x.x:8443 [nonblock]
Thu May 27 09:54:47 2021 MANAGEMENT: >STATE:1622089487,TCP_CONNECT,,,,,,
Thu May 27 09:54:48 2021 TCP connection established with [AF_INET]x.x.x.x:8443
Thu May 27 09:54:48 2021 TCPv4_CLIENT link local: [undef]
Thu May 27 09:54:48 2021 TCPv4_CLIENT link remote: [AF_INET]x.x.x.x:8443
Thu May 27 09:54:48 2021 MANAGEMENT: >STATE:1622089488,WAIT,,,,,,
Thu May 27 09:54:48 2021 MANAGEMENT: >STATE:1622089488,AUTH,,,,,,
Thu May 27 09:54:48 2021 TLS: Initial packet from [AF_INET]x.x.x.x:8443, sid=1c7d0379 96997ffb
Thu May 27 09:54:48 2021 WARNING: this configuration may cache passwords in memory -- use the auth-nocache option to prevent this
Thu May 27 09:54:49 2021 VERIFY OK: depth=1, C=IN, ST=Tamilnadu, L=Chennai, O=oriens global marketing private limited, OU=OU, CN=Sophos_CA_C1B0A69GQFWG8DB, emailAddress=ashok@oriensworld.in
Thu May 27 09:54:49 2021 VERIFY X509NAME OK: C=IN, ST=Tamilnadu, L=Chennai, O=oriens global marketing private limited, OU=OU, CN=SophosApplianceCertificate_C1B0A69GQFWG8DB, emailAddress=ashok@oriensworld.in
Thu May 27 09:54:49 2021 VERIFY OK: depth=0, C=IN, ST=Tamilnadu, L=Chennai, O=oriens global marketing private limited, OU=OU, CN=SophosApplianceCertificate_C1B0A69GQFWG8DB, emailAddress=ashok@oriensworld.in
Thu May 27 09:54:49 2021 Data Channel Encrypt: Cipher 'AES-128-CBC' initialized with 128 bit key
Thu May 27 09:54:49 2021 Data Channel Encrypt: Using 256 bit message hash 'SHA256' for HMAC authentication
Thu May 27 09:54:49 2021 Data Channel Decrypt: Cipher 'AES-128-CBC' initialized with 128 bit key
Thu May 27 09:54:49 2021 Data Channel Decrypt: Using 256 bit message hash 'SHA256' for HMAC authentication
Thu May 27 09:54:49 2021 Control Channel: TLSv1.2, cipher TLSv1/SSLv3 DHE-RSA-AES256-GCM-SHA384, 2048 bit RSA
Thu May 27 09:54:49 2021 [SophosApplianceCertificate_C1B0A69GQFWG8DB] Peer Connection Initiated with [AF_INET]x.x.x.x:8443
Thu May 27 09:54:51 2021 MANAGEMENT: >STATE:1622089491,GET_CONFIG,,,,,,
Thu May 27 09:54:52 2021 SENT CONTROL [SophosApplianceCertificate_C1B0A69GQFWG8DB]: 'PUSH_REQUEST' (status=1)
Thu May 27 09:54:52 2021 PUSH: Received control message: 'PUSH_REPLY,route-gateway 10.81.234.5,sndbuf 0,rcvbuf 0,sndbuf 0,rcvbuf 0,ping 45,ping-restart 180,route 192.168.0.0 255.255.255.0,topology subnet,route remote_host 255.255.255.255 net_gateway,inactive 900 7680,ifconfig 10.81.234.12 255.255.255.0'
Thu May 27 09:54:52 2021 OPTIONS IMPORT: timers and/or timeouts modified
Thu May 27 09:54:52 2021 OPTIONS IMPORT: --sndbuf/--rcvbuf options modified
Thu May 27 09:54:52 2021 Socket Buffers: R=[65536->65536] S=[65536->65536]
Thu May 27 09:54:52 2021 OPTIONS IMPORT: --ifconfig/up options modified
Thu May 27 09:54:52 2021 OPTIONS IMPORT: route options modified
Thu May 27 09:54:52 2021 OPTIONS IMPORT: route-related options modified
Thu May 27 09:54:52 2021 ROUTE_GATEWAY 192.168.1.1/255.255.255.0 I=13 HWADDR=34:e6:ad:4e:95:a8
Thu May 27 09:54:52 2021 open_tun, tt->ipv6=0
Thu May 27 09:54:52 2021 TAP-WIN32 device [Ethernet 2] opened: \\.\Global\{59F8FC3F-8AD0-42AA-94DE-002C0A5F93EE}.tap
Thu May 27 09:54:52 2021 TAP-Windows Driver Version 9.21
Thu May 27 09:54:52 2021 Set TAP-Windows TUN subnet mode network/local/netmask = 10.81.234.0/10.81.234.12/255.255.255.0 [SUCCEEDED]
Thu May 27 09:54:52 2021 Notified TAP-Windows driver to set a DHCP IP/netmask of 10.81.234.12/255.255.255.0 on interface {59F8FC3F-8AD0-42AA-94DE-002C0A5F93EE} [DHCP-serv: 10.81.234.254, lease-time: 31536000]
Thu May 27 09:54:52 2021 Successful ARP Flush on interface [10] {59F8FC3F-8AD0-42AA-94DE-002C0A5F93EE}
Thu May 27 09:54:52 2021 do_ifconfig, tt->ipv6=0, tt->did_ifconfig_ipv6_setup=0
Thu May 27 09:54:52 2021 MANAGEMENT: >STATE:1622089492,ASSIGN_IP,,10.81.234.12,,,,
Thu May 27 09:54:56 2021 TEST ROUTES: 3/3 succeeded len=3 ret=1 a=0 u/d=up
Thu May 27 09:54:56 2021 MANAGEMENT: >STATE:1622089496,ADD_ROUTES,,,,,,
Thu May 27 09:54:56 2021 C:\Windows\system32\route.exe ADD x.x.x.x MASK 255.255.255.255 192.168.1.1
Thu May 27 09:54:56 2021 Route addition via service succeeded
Thu May 27 09:54:56 2021 C:\Windows\system32\route.exe ADD 192.168.0.0 MASK 255.255.255.0 10.81.234.5
Thu May 27 09:54:56 2021 Route addition via service succeeded
Thu May 27 09:54:56 2021 C:\Windows\system32\route.exe ADD x.x.x.x MASK 255.255.255.255 192.168.1.1
Thu May 27 09:54:56 2021 ROUTE: route addition failed using service: The object already exists.   [status=5010 if_index=13]
Thu May 27 09:54:56 2021 Route addition via service failed
Thu May 27 09:54:56 2021 Initialization Sequence Completed
Thu May 27 09:54:56 2021 MANAGEMENT: >STATE:1622089496,CONNECTED,SUCCESS,10.81.234.12,x.x.x.x,8443,192.168.1.9,63769
Thu May 27 10:05:40 2021 read TCPv4_CLIENT: Connection timed out (WSAETIMEDOUT) (code=10060)
Thu May 27 10:05:40 2021 Connection reset, restarting [-1]
Thu May 27 10:05:40 2021 SIGUSR1[soft,connection-reset] received, process restarting
Thu May 27 10:05:40 2021 MANAGEMENT: >STATE:1622090140,RECONNECTING,connection-reset,,,,,
Thu May 27 10:05:40 2021 Restart pause, 5 second(s)
Thu May 27 10:05:45 2021 Socket Buffers: R=[65536->65536] S=[65536->65536]
Thu May 27 10:05:45 2021 Attempting to establish TCP connection with [AF_INET]x.x.x.x:8443 [nonblock]
Thu May 27 10:05:45 2021 MANAGEMENT: >STATE:1622090145,TCP_CONNECT,,,,,,
Thu May 27 10:05:46 2021 TCP connection established with [AF_INET]x.x.x.x:8443
Thu May 27 10:05:46 2021 TCPv4_CLIENT link local: [undef]
Thu May 27 10:05:46 2021 TCPv4_CLIENT link remote: [AF_INET]x.x.x.x:8443
Thu May 27 10:05:46 2021 MANAGEMENT: >STATE:1622090146,WAIT,,,,,,
Thu May 27 10:05:46 2021 MANAGEMENT: >STATE:1622090146,AUTH,,,,,,
Thu May 27 10:05:46 2021 TLS: Initial packet from [AF_INET]x.x.x.x:8443, sid=711f128f ba27d5d7
Thu May 27 10:06:06 2021 read TCPv4_CLIENT: Connection timed out (WSAETIMEDOUT) (code=10060)
Thu May 27 10:06:06 2021 Connection reset, restarting [-1]
Thu May 27 10:06:06 2021 SIGUSR1[soft,connection-reset] received, process restarting
Thu May 27 10:06:06 2021 MANAGEMENT: >STATE:1622090166,RECONNECTING,connection-reset,,,,,
Thu May 27 10:06:06 2021 Restart pause, 5 second(s)
Thu May 27 10:06:11 2021 Socket Buffers: R=[65536->65536] S=[65536->65536]
Thu May 27 10:06:11 2021 Attempting to establish TCP connection with [AF_INET]192.168.0.150:8443 [nonblock]
Thu May 27 10:06:11 2021 MANAGEMENT: >STATE:1622090171,TCP_CONNECT,,,,,,
Thu May 27 10:06:21 2021 TCP: connect to [AF_INET]192.168.0.150:8443 failed, will try again in 5 seconds: The system tried to join a drive to a directory on a joined drive.
Thu May 27 10:06:21 2021 SIGUSR1[soft,init_instance] received, process restarting
Thu May 27 10:06:21 2021 MANAGEMENT: >STATE:1622090181,RECONNECTING,init_instance,,,,,
Thu May 27 10:06:21 2021 Restart pause, 5 second(s)
Thu May 27 10:06:26 2021 Socket Buffers: R=[65536->65536] S=[65536->65536]
Thu May 27 10:06:26 2021 Attempting to establish TCP connection with [AF_INET]192.168.1.150:8443 [nonblock]
Thu May 27 10:06:26 2021 MANAGEMENT: >STATE:1622090186,TCP_CONNECT,,,,,,
Thu May 27 10:06:36 2021 TCP: connect to [AF_INET]192.168.1.150:8443 failed, will try again in 5 seconds: The system tried to join a drive to a directory on a joined drive.
Thu May 27 10:06:36 2021 SIGUSR1[soft,init_instance] received, process restarting
Thu May 27 10:06:36 2021 MANAGEMENT: >STATE:1622090196,RECONNECTING,init_instance,,,,,
Thu May 27 10:06:36 2021 Restart pause, 5 second(s)
Thu May 27 10:06:41 2021 Socket Buffers: R=[65536->65536] S=[65536->65536]
Thu May 27 10:06:41 2021 Attempting to establish TCP connection with [AF_INET]10.255.0.1:8443 [nonblock]
Thu May 27 10:06:41 2021 MANAGEMENT: >STATE:1622090201,TCP_CONNECT,,,,,,
Thu May 27 10:06:51 2021 TCP: connect to [AF_INET]10.255.0.1:8443 failed, will try again in 5 seconds: The system tried to join a drive to a directory on a joined drive.
Thu May 27 10:06:51 2021 SIGUSR1[soft,init_instance] received, process restarting
Thu May 27 10:06:51 2021 MANAGEMENT: >STATE:1622090211,RECONNECTING,init_instance,,,,,
Thu May 27 10:06:51 2021 Restart pause, 5 second(s)
Thu May 27 10:06:56 2021 Socket Buffers: R=[65536->65536] S=[65536->65536]
Thu May 27 10:06:56 2021 Attempting to establish TCP connection with [AF_INET]10.11.29.180:8443 [nonblock]
Thu May 27 10:06:56 2021 MANAGEMENT: >STATE:1622090216,TCP_CONNECT,,,,,,
Thu May 27 10:07:06 2021 TCP: connect to [AF_INET]10.11.29.180:8443 failed, will try again in 5 seconds: The system tried to join a drive to a directory on a joined drive.
Thu May 27 10:07:06 2021 SIGUSR1[soft,init_instance] received, process restarting
Thu May 27 10:07:06 2021 MANAGEMENT: >STATE:1622090226,RECONNECTING,init_instance,,,,,
Thu May 27 10:07:06 2021 Restart pause, 5 second(s)
Thu May 27 10:07:11 2021 Socket Buffers: R=[65536->65536] S=[65536->65536]
Thu May 27 10:07:11 2021 Attempting to establish TCP connection with [AF_INET]x.x.x.x:8443 [nonblock]
Thu May 27 10:07:11 2021 MANAGEMENT: >STATE:1622090231,TCP_CONNECT,,,,,,
Thu May 27 10:07:12 2021 TCP connection established with [AF_INET]x.x.x.x:8443
Thu May 27 10:07:12 2021 TCPv4_CLIENT link local: [undef]
Thu May 27 10:07:12 2021 TCPv4_CLIENT link remote: [AF_INET]x.x.x.x:8443
Thu May 27 10:07:12 2021 MANAGEMENT: >STATE:1622090232,WAIT,,,,,,
Thu May 27 10:07:12 2021 MANAGEMENT: >STATE:1622090232,AUTH,,,,,,
Thu May 27 10:07:12 2021 TLS: Initial packet from [AF_INET]x.x.x.x:8443, sid=3aadb3cc 32e96284
Thu May 27 10:07:13 2021 VERIFY OK: depth=1, C=IN, ST=Tamilnadu, L=Chennai, O=oriens global marketing private limited, OU=OU, CN=Sophos_CA_C1B0A69GQFWG8DB, emailAddress=ashok@oriensworld.in
Thu May 27 10:07:13 2021 VERIFY X509NAME OK: C=IN, ST=Tamilnadu, L=Chennai, O=oriens global marketing private limited, OU=OU, CN=SophosApplianceCertificate_C1B0A69GQFWG8DB, emailAddress=ashok@oriensworld.in
Thu May 27 10:07:13 2021 VERIFY OK: depth=0, C=IN, ST=Tamilnadu, L=Chennai, O=oriens global marketing private limited, OU=OU, CN=SophosApplianceCertificate_C1B0A69GQFWG8DB, emailAddress=ashok@oriensworld.in
Thu May 27 10:07:13 2021 Data Channel Encrypt: Cipher 'AES-128-CBC' initialized with 128 bit key
Thu May 27 10:07:13 2021 Data Channel Encrypt: Using 256 bit message hash 'SHA256' for HMAC authentication
Thu May 27 10:07:13 2021 Data Channel Decrypt: Cipher 'AES-128-CBC' initialized with 128 bit key
Thu May 27 10:07:13 2021 Data Channel Decrypt: Using 256 bit message hash 'SHA256' for HMAC authentication
Thu May 27 10:07:13 2021 Control Channel: TLSv1.2, cipher TLSv1/SSLv3 DHE-RSA-AES256-GCM-SHA384, 2048 bit RSA
Thu May 27 10:07:13 2021 [SophosApplianceCertificate_C1B0A69GQFWG8DB] Peer Connection Initiated with [AF_INET]x.x.x.x:8443
Thu May 27 10:07:14 2021 MANAGEMENT: >STATE:1622090234,GET_CONFIG,,,,,,
Thu May 27 10:07:15 2021 SENT CONTROL [SophosApplianceCertificate_C1B0A69GQFWG8DB]: 'PUSH_REQUEST' (status=1)
Thu May 27 10:07:15 2021 PUSH: Received control message: 'PUSH_REPLY,route-gateway 10.81.234.5,sndbuf 0,rcvbuf 0,sndbuf 0,rcvbuf 0,ping 45,ping-restart 180,route 192.168.0.0 255.255.255.0,topology subnet,route remote_host 255.255.255.255 net_gateway,inactive 900 7680,ifconfig 10.81.234.29 255.255.255.0'
Thu May 27 10:07:15 2021 OPTIONS IMPORT: timers and/or timeouts modified
Thu May 27 10:07:15 2021 OPTIONS IMPORT: --sndbuf/--rcvbuf options modified
Thu May 27 10:07:15 2021 Socket Buffers: R=[65536->65536] S=[65536->65536]
Thu May 27 10:07:15 2021 OPTIONS IMPORT: --ifconfig/up options modified
Thu May 27 10:07:15 2021 OPTIONS IMPORT: route options modified
Thu May 27 10:07:15 2021 OPTIONS IMPORT: route-related options modified
Thu May 27 10:07:15 2021 Preserving previous TUN/TAP instance: Ethernet 2
Thu May 27 10:07:15 2021 NOTE: Pulled options changed on restart, will need to close and reopen TUN/TAP device.
Thu May 27 10:07:15 2021 C:\Windows\system32\route.exe DELETE 192.168.0.0 MASK 255.255.255.0 10.81.234.5
Thu May 27 10:07:15 2021 Route deletion via service succeeded
Thu May 27 10:07:15 2021 C:\Windows\system32\route.exe DELETE x.x.x.x MASK 255.255.255.255 192.168.1.1
Thu May 27 10:07:15 2021 Route deletion via service succeeded
Thu May 27 10:07:15 2021 Closing TUN/TAP interface
Thu May 27 10:07:16 2021 ROUTE_GATEWAY 192.168.1.1/255.255.255.0 I=13 HWADDR=34:e6:ad:4e:95:a8
Thu May 27 10:07:16 2021 open_tun, tt->ipv6=0
Thu May 27 10:07:16 2021 TAP-WIN32 device [Ethernet 2] opened: \\.\Global\{59F8FC3F-8AD0-42AA-94DE-002C0A5F93EE}.tap
Thu May 27 10:07:16 2021 TAP-Windows Driver Version 9.21
Thu May 27 10:07:16 2021 Set TAP-Windows TUN subnet mode network/local/netmask = 10.81.234.0/10.81.234.29/255.255.255.0 [SUCCEEDED]
Thu May 27 10:07:16 2021 Notified TAP-Windows driver to set a DHCP IP/netmask of 10.81.234.29/255.255.255.0 on interface {59F8FC3F-8AD0-42AA-94DE-002C0A5F93EE} [DHCP-serv: 10.81.234.254, lease-time: 31536000]
Thu May 27 10:07:16 2021 Successful ARP Flush on interface [10] {59F8FC3F-8AD0-42AA-94DE-002C0A5F93EE}
Thu May 27 10:07:16 2021 do_ifconfig, tt->ipv6=0, tt->did_ifconfig_ipv6_setup=0
Thu May 27 10:07:16 2021 MANAGEMENT: >STATE:1622090236,ASSIGN_IP,,10.81.234.29,,,,
Thu May 27 10:07:20 2021 TEST ROUTES: 3/3 succeeded len=3 ret=1 a=0 u/d=up
Thu May 27 10:07:20 2021 MANAGEMENT: >STATE:1622090240,ADD_ROUTES,,,,,,
Thu May 27 10:07:20 2021 C:\Windows\system32\route.exe ADD x.x.x.x MASK 255.255.255.255 192.168.1.1
Thu May 27 10:07:20 2021 Route addition via service succeeded
Thu May 27 10:07:20 2021 C:\Windows\system32\route.exe ADD 192.168.0.0 MASK 255.255.255.0 10.81.234.5
Thu May 27 10:07:20 2021 Route addition via service succeeded
Thu May 27 10:07:20 2021 C:\Windows\system32\route.exe ADD x.x.x.x MASK 255.255.255.255 192.168.1.1
Thu May 27 10:07:20 2021 ROUTE: route addition failed using service: The object already exists.   [status=5010 if_index=13]
Thu May 27 10:07:20 2021 Route addition via service failed
Thu May 27 10:07:20 2021 Initialization Sequence Completed
Thu May 27 10:07:20 2021 MANAGEMENT: >STATE:1622090240,CONNECTED,SUCCESS,10.81.234.29,x.x.x.x,8443,192.168.1.9,50658

Fullscreen 0576.bala_ssl_vpn_config.log Download

Thu May 27 10:00:17 2021 OpenVPN 2.3.8 i686-w64-mingw32 [SSL (OpenSSL)] [LZO] [IPv6] built on Jul  3 2017
Thu May 27 10:00:17 2021 library versions: OpenSSL 1.0.2l  25 May 2017, LZO 2.09
Enter Management Password:
Thu May 27 10:00:17 2021 MANAGEMENT: TCP Socket listening on [AF_INET]127.0.0.1:25340
Thu May 27 10:00:17 2021 Need hold release from management interface, waiting...
Thu May 27 10:00:18 2021 MANAGEMENT: Client connected from [AF_INET]127.0.0.1:25340
Thu May 27 10:00:18 2021 MANAGEMENT: CMD 'state on'
Thu May 27 10:00:18 2021 MANAGEMENT: CMD 'log all on'
Thu May 27 10:00:18 2021 MANAGEMENT: CMD 'hold off'
Thu May 27 10:00:18 2021 MANAGEMENT: CMD 'hold release'
Thu May 27 10:00:48 2021 MANAGEMENT: CMD 'username "Auth" "bala"'
Thu May 27 10:00:48 2021 MANAGEMENT: CMD 'password [...]'
Thu May 27 10:00:48 2021 Socket Buffers: R=[65536->65536] S=[65536->65536]
Thu May 27 10:00:48 2021 Attempting to establish TCP connection with [AF_INET]x.x.x.x:8443 [nonblock]
Thu May 27 10:00:48 2021 MANAGEMENT: >STATE:1622089848,TCP_CONNECT,,,,,,
Thu May 27 10:00:49 2021 TCP connection established with [AF_INET]x.x.x.x:8443
Thu May 27 10:00:49 2021 TCPv4_CLIENT link local: [undef]
Thu May 27 10:00:49 2021 TCPv4_CLIENT link remote: [AF_INET]x.x.x.x:8443
Thu May 27 10:00:49 2021 MANAGEMENT: >STATE:1622089849,WAIT,,,,,,
Thu May 27 10:00:49 2021 MANAGEMENT: >STATE:1622089849,AUTH,,,,,,
Thu May 27 10:00:49 2021 TLS: Initial packet from [AF_INET]x.x.x.x:8443, sid=2084651d a0858ddc
Thu May 27 10:00:49 2021 WARNING: this configuration may cache passwords in memory -- use the auth-nocache option to prevent this
Thu May 27 10:00:50 2021 VERIFY OK: depth=1, C=IN, ST=Tamilnadu, L=Chennai, O=oriens global marketing private limited, OU=OU, CN=Sophos_CA_C1B0A69GQFWG8DB, emailAddress=ashok@oriensworld.in
Thu May 27 10:00:50 2021 VERIFY X509NAME OK: C=IN, ST=Tamilnadu, L=Chennai, O=oriens global marketing private limited, OU=OU, CN=SophosApplianceCertificate_C1B0A69GQFWG8DB, emailAddress=ashok@oriensworld.in
Thu May 27 10:00:50 2021 VERIFY OK: depth=0, C=IN, ST=Tamilnadu, L=Chennai, O=oriens global marketing private limited, OU=OU, CN=SophosApplianceCertificate_C1B0A69GQFWG8DB, emailAddress=ashok@oriensworld.in
Thu May 27 10:00:50 2021 Data Channel Encrypt: Cipher 'AES-128-CBC' initialized with 128 bit key
Thu May 27 10:00:50 2021 Data Channel Encrypt: Using 256 bit message hash 'SHA256' for HMAC authentication
Thu May 27 10:00:50 2021 Data Channel Decrypt: Cipher 'AES-128-CBC' initialized with 128 bit key
Thu May 27 10:00:50 2021 Data Channel Decrypt: Using 256 bit message hash 'SHA256' for HMAC authentication
Thu May 27 10:00:50 2021 Control Channel: TLSv1.2, cipher TLSv1/SSLv3 DHE-RSA-AES256-GCM-SHA384, 2048 bit RSA
Thu May 27 10:00:50 2021 [SophosApplianceCertificate_C1B0A69GQFWG8DB] Peer Connection Initiated with [AF_INET]x.x.x.x:8443
Thu May 27 10:00:52 2021 MANAGEMENT: >STATE:1622089852,GET_CONFIG,,,,,,
Thu May 27 10:00:53 2021 SENT CONTROL [SophosApplianceCertificate_C1B0A69GQFWG8DB]: 'PUSH_REQUEST' (status=1)
Thu May 27 10:00:53 2021 PUSH: Received control message: 'PUSH_REPLY,route-gateway 10.81.234.5,sndbuf 0,rcvbuf 0,sndbuf 0,rcvbuf 0,ping 45,ping-restart 180,route 192.168.0.0 255.255.255.0,topology subnet,route remote_host 255.255.255.255 net_gateway,inactive 900 7680,ifconfig 10.81.234.15 255.255.255.0'
Thu May 27 10:00:53 2021 OPTIONS IMPORT: timers and/or timeouts modified
Thu May 27 10:00:53 2021 OPTIONS IMPORT: --sndbuf/--rcvbuf options modified
Thu May 27 10:00:53 2021 Socket Buffers: R=[65536->65536] S=[65536->65536]
Thu May 27 10:00:53 2021 OPTIONS IMPORT: --ifconfig/up options modified
Thu May 27 10:00:53 2021 OPTIONS IMPORT: route options modified
Thu May 27 10:00:53 2021 OPTIONS IMPORT: route-related options modified
Thu May 27 10:00:53 2021 ROUTE_GATEWAY 192.168.1.1/255.255.255.0 I=2 HWADDR=34:cf:f6:de:b5:2a
Thu May 27 10:00:53 2021 open_tun, tt->ipv6=0
Thu May 27 10:00:53 2021 TAP-WIN32 device [Ethernet 5] opened: \\.\Global\{57B12873-C0CA-44EC-9BFD-B91A6623C18C}.tap
Thu May 27 10:00:53 2021 TAP-Windows Driver Version 9.21
Thu May 27 10:00:53 2021 Set TAP-Windows TUN subnet mode network/local/netmask = 10.81.234.0/10.81.234.15/255.255.255.0 [SUCCEEDED]
Thu May 27 10:00:53 2021 Notified TAP-Windows driver to set a DHCP IP/netmask of 10.81.234.15/255.255.255.0 on interface {57B12873-C0CA-44EC-9BFD-B91A6623C18C} [DHCP-serv: 10.81.234.254, lease-time: 31536000]
Thu May 27 10:00:53 2021 Successful ARP Flush on interface [12] {57B12873-C0CA-44EC-9BFD-B91A6623C18C}
Thu May 27 10:00:53 2021 do_ifconfig, tt->ipv6=0, tt->did_ifconfig_ipv6_setup=0
Thu May 27 10:00:53 2021 MANAGEMENT: >STATE:1622089853,ASSIGN_IP,,10.81.234.15,,,,
Thu May 27 10:00:57 2021 TEST ROUTES: 3/3 succeeded len=3 ret=1 a=0 u/d=up
Thu May 27 10:00:57 2021 MANAGEMENT: >STATE:1622089857,ADD_ROUTES,,,,,,
Thu May 27 10:00:57 2021 C:\WINDOWS\system32\route.exe ADD x.x.x.x MASK 255.255.255.255 192.168.1.1
Thu May 27 10:00:57 2021 Route addition via service succeeded
Thu May 27 10:00:57 2021 C:\WINDOWS\system32\route.exe ADD 192.168.0.0 MASK 255.255.255.0 10.81.234.5
Thu May 27 10:00:57 2021 Route addition via service succeeded
Thu May 27 10:00:57 2021 C:\WINDOWS\system32\route.exe ADD x.x.x.x MASK 255.255.255.255 192.168.1.1
Thu May 27 10:00:57 2021 ROUTE: route addition failed using service: The object already exists.   [status=5010 if_index=2]
Thu May 27 10:00:57 2021 Route addition via service failed
Thu May 27 10:00:57 2021 Initialization Sequence Completed
Thu May 27 10:00:57 2021 MANAGEMENT: >STATE:1622089857,CONNECTED,SUCCESS,10.81.234.15,x.x.x.x,8443,192.168.1.7,64876
Thu May 27 10:07:04 2021 read TCPv4_CLIENT: Connection timed out (WSAETIMEDOUT) (code=10060)
Thu May 27 10:07:04 2021 Connection reset, restarting [-1]
Thu May 27 10:07:04 2021 SIGUSR1[soft,connection-reset] received, process restarting
Thu May 27 10:07:04 2021 MANAGEMENT: >STATE:1622090224,RECONNECTING,connection-reset,,,,,
Thu May 27 10:07:04 2021 Restart pause, 5 second(s)
Thu May 27 10:07:09 2021 Socket Buffers: R=[65536->65536] S=[65536->65536]
Thu May 27 10:07:09 2021 Attempting to establish TCP connection with [AF_INET]x.x.x.x:8443 [nonblock]
Thu May 27 10:07:09 2021 MANAGEMENT: >STATE:1622090229,TCP_CONNECT,,,,,,
Thu May 27 10:07:10 2021 TCP connection established with [AF_INET]x.x.x.x:8443
Thu May 27 10:07:10 2021 TCPv4_CLIENT link local: [undef]
Thu May 27 10:07:10 2021 TCPv4_CLIENT link remote: [AF_INET]x.x.x.x:8443
Thu May 27 10:07:10 2021 MANAGEMENT: >STATE:1622090230,WAIT,,,,,,
Thu May 27 10:07:10 2021 MANAGEMENT: >STATE:1622090230,AUTH,,,,,,
Thu May 27 10:07:10 2021 TLS: Initial packet from [AF_INET]x.x.x.x:8443, sid=a0197821 895a7060
Thu May 27 10:07:11 2021 VERIFY OK: depth=1, C=IN, ST=Tamilnadu, L=Chennai, O=oriens global marketing private limited, OU=OU, CN=Sophos_CA_C1B0A69GQFWG8DB, emailAddress=ashok@oriensworld.in
Thu May 27 10:07:11 2021 VERIFY X509NAME OK: C=IN, ST=Tamilnadu, L=Chennai, O=oriens global marketing private limited, OU=OU, CN=SophosApplianceCertificate_C1B0A69GQFWG8DB, emailAddress=ashok@oriensworld.in
Thu May 27 10:07:11 2021 VERIFY OK: depth=0, C=IN, ST=Tamilnadu, L=Chennai, O=oriens global marketing private limited, OU=OU, CN=SophosApplianceCertificate_C1B0A69GQFWG8DB, emailAddress=ashok@oriensworld.in
Thu May 27 10:07:31 2021 read TCPv4_CLIENT: Connection timed out (WSAETIMEDOUT) (code=10060)
Thu May 27 10:07:31 2021 Connection reset, restarting [-1]
Thu May 27 10:07:31 2021 SIGUSR1[soft,connection-reset] received, process restarting
Thu May 27 10:07:31 2021 MANAGEMENT: >STATE:1622090251,RECONNECTING,connection-reset,,,,,
Thu May 27 10:07:31 2021 Restart pause, 5 second(s)
Thu May 27 10:07:36 2021 Socket Buffers: R=[65536->65536] S=[65536->65536]
Thu May 27 10:07:36 2021 Attempting to establish TCP connection with [AF_INET]10.11.28.18:8443 [nonblock]
Thu May 27 10:07:36 2021 MANAGEMENT: >STATE:1622090256,TCP_CONNECT,,,,,,
Thu May 27 10:07:46 2021 TCP: connect to [AF_INET]10.11.28.18:8443 failed, will try again in 5 seconds: The system tried to join a drive to a directory on a joined drive.
Thu May 27 10:07:46 2021 SIGUSR1[soft,init_instance] received, process restarting
Thu May 27 10:07:46 2021 MANAGEMENT: >STATE:1622090266,RECONNECTING,init_instance,,,,,
Thu May 27 10:07:46 2021 Restart pause, 5 second(s)
Thu May 27 10:07:51 2021 Socket Buffers: R=[65536->65536] S=[65536->65536]
Thu May 27 10:07:51 2021 Attempting to establish TCP connection with [AF_INET]192.168.0.150:8443 [nonblock]
Thu May 27 10:07:51 2021 MANAGEMENT: >STATE:1622090271,TCP_CONNECT,,,,,,
Thu May 27 10:08:01 2021 TCP: connect to [AF_INET]192.168.0.150:8443 failed, will try again in 5 seconds: The system tried to join a drive to a directory on a joined drive.
Thu May 27 10:08:01 2021 SIGUSR1[soft,init_instance] received, process restarting
Thu May 27 10:08:01 2021 MANAGEMENT: >STATE:1622090281,RECONNECTING,init_instance,,,,,
Thu May 27 10:08:01 2021 Restart pause, 5 second(s)
Thu May 27 10:08:06 2021 Socket Buffers: R=[65536->65536] S=[65536->65536]
Thu May 27 10:08:06 2021 Attempting to establish TCP connection with [AF_INET]10.255.0.1:8443 [nonblock]
Thu May 27 10:08:06 2021 MANAGEMENT: >STATE:1622090286,TCP_CONNECT,,,,,,
Thu May 27 10:08:16 2021 TCP: connect to [AF_INET]10.255.0.1:8443 failed, will try again in 5 seconds: The system tried to join a drive to a directory on a joined drive.
Thu May 27 10:08:16 2021 SIGUSR1[soft,init_instance] received, process restarting
Thu May 27 10:08:16 2021 MANAGEMENT: >STATE:1622090296,RECONNECTING,init_instance,,,,,
Thu May 27 10:08:16 2021 Restart pause, 5 second(s)
Thu May 27 10:08:21 2021 Socket Buffers: R=[65536->65536] S=[65536->65536]
Thu May 27 10:08:21 2021 Attempting to establish TCP connection with [AF_INET]x.x.x.x:8443 [nonblock]
Thu May 27 10:08:21 2021 MANAGEMENT: >STATE:1622090301,TCP_CONNECT,,,,,,
Thu May 27 10:08:22 2021 TCP connection established with [AF_INET]x.x.x.x:8443
Thu May 27 10:08:22 2021 TCPv4_CLIENT link local: [undef]
Thu May 27 10:08:22 2021 TCPv4_CLIENT link remote: [AF_INET]x.x.x.x:8443
Thu May 27 10:08:22 2021 MANAGEMENT: >STATE:1622090302,WAIT,,,,,,
Thu May 27 10:08:23 2021 MANAGEMENT: >STATE:1622090303,AUTH,,,,,,
Thu May 27 10:08:23 2021 TLS: Initial packet from [AF_INET]x.x.x.x:8443, sid=5d4f13e1 cb30fcec
Thu May 27 10:08:24 2021 VERIFY OK: depth=1, C=IN, ST=Tamilnadu, L=Chennai, O=oriens global marketing private limited, OU=OU, CN=Sophos_CA_C1B0A69GQFWG8DB, emailAddress=ashok@oriensworld.in
Thu May 27 10:08:24 2021 VERIFY X509NAME OK: C=IN, ST=Tamilnadu, L=Chennai, O=oriens global marketing private limited, OU=OU, CN=SophosApplianceCertificate_C1B0A69GQFWG8DB, emailAddress=ashok@oriensworld.in
Thu May 27 10:08:24 2021 VERIFY OK: depth=0, C=IN, ST=Tamilnadu, L=Chennai, O=oriens global marketing private limited, OU=OU, CN=SophosApplianceCertificate_C1B0A69GQFWG8DB, emailAddress=ashok@oriensworld.in
Thu May 27 10:08:25 2021 Data Channel Encrypt: Cipher 'AES-128-CBC' initialized with 128 bit key
Thu May 27 10:08:25 2021 Data Channel Encrypt: Using 256 bit message hash 'SHA256' for HMAC authentication
Thu May 27 10:08:25 2021 Data Channel Decrypt: Cipher 'AES-128-CBC' initialized with 128 bit key
Thu May 27 10:08:25 2021 Data Channel Decrypt: Using 256 bit message hash 'SHA256' for HMAC authentication
Thu May 27 10:08:25 2021 Control Channel: TLSv1.2, cipher TLSv1/SSLv3 DHE-RSA-AES256-GCM-SHA384, 2048 bit RSA
Thu May 27 10:08:25 2021 [SophosApplianceCertificate_C1B0A69GQFWG8DB] Peer Connection Initiated with [AF_INET]x.x.x.x:8443
Thu May 27 10:08:26 2021 MANAGEMENT: >STATE:1622090306,GET_CONFIG,,,,,,
Thu May 27 10:08:27 2021 SENT CONTROL [SophosApplianceCertificate_C1B0A69GQFWG8DB]: 'PUSH_REQUEST' (status=1)
Thu May 27 10:08:27 2021 PUSH: Received control message: 'PUSH_REPLY,route-gateway 10.81.234.5,sndbuf 0,rcvbuf 0,sndbuf 0,rcvbuf 0,ping 45,ping-restart 180,route 192.168.0.0 255.255.255.0,topology subnet,route remote_host 255.255.255.255 net_gateway,inactive 900 7680,ifconfig 10.81.234.23 255.255.255.0'
Thu May 27 10:08:27 2021 OPTIONS IMPORT: timers and/or timeouts modified
Thu May 27 10:08:27 2021 OPTIONS IMPORT: --sndbuf/--rcvbuf options modified
Thu May 27 10:08:27 2021 Socket Buffers: R=[65536->65536] S=[65536->65536]
Thu May 27 10:08:27 2021 OPTIONS IMPORT: --ifconfig/up options modified
Thu May 27 10:08:27 2021 OPTIONS IMPORT: route options modified
Thu May 27 10:08:27 2021 OPTIONS IMPORT: route-related options modified
Thu May 27 10:08:27 2021 Preserving previous TUN/TAP instance: Ethernet 5
Thu May 27 10:08:27 2021 NOTE: Pulled options changed on restart, will need to close and reopen TUN/TAP device.
Thu May 27 10:08:27 2021 C:\WINDOWS\system32\route.exe DELETE 192.168.0.0 MASK 255.255.255.0 10.81.234.5
Thu May 27 10:08:27 2021 Route deletion via service succeeded
Thu May 27 10:08:27 2021 C:\WINDOWS\system32\route.exe DELETE x.x.x.x MASK 255.255.255.255 192.168.1.1
Thu May 27 10:08:27 2021 Route deletion via service succeeded
Thu May 27 10:08:27 2021 Closing TUN/TAP interface
Thu May 27 10:08:28 2021 ROUTE_GATEWAY 192.168.1.1/255.255.255.0 I=2 HWADDR=34:cf:f6:de:b5:2a
Thu May 27 10:08:28 2021 open_tun, tt->ipv6=0
Thu May 27 10:08:28 2021 TAP-WIN32 device [Ethernet 5] opened: \\.\Global\{57B12873-C0CA-44EC-9BFD-B91A6623C18C}.tap
Thu May 27 10:08:28 2021 TAP-Windows Driver Version 9.21
Thu May 27 10:08:28 2021 Set TAP-Windows TUN subnet mode network/local/netmask = 10.81.234.0/10.81.234.23/255.255.255.0 [SUCCEEDED]
Thu May 27 10:08:28 2021 Notified TAP-Windows driver to set a DHCP IP/netmask of 10.81.234.23/255.255.255.0 on interface {57B12873-C0CA-44EC-9BFD-B91A6623C18C} [DHCP-serv: 10.81.234.254, lease-time: 31536000]
Thu May 27 10:08:28 2021 Successful ARP Flush on interface [12] {57B12873-C0CA-44EC-9BFD-B91A6623C18C}
Thu May 27 10:08:28 2021 do_ifconfig, tt->ipv6=0, tt->did_ifconfig_ipv6_setup=0
Thu May 27 10:08:28 2021 MANAGEMENT: >STATE:1622090308,ASSIGN_IP,,10.81.234.23,,,,
Thu May 27 10:08:32 2021 TEST ROUTES: 3/3 succeeded len=3 ret=1 a=0 u/d=up
Thu May 27 10:08:32 2021 MANAGEMENT: >STATE:1622090312,ADD_ROUTES,,,,,,
Thu May 27 10:08:32 2021 C:\WINDOWS\system32\route.exe ADD x.x.x.x MASK 255.255.255.255 192.168.1.1
Thu May 27 10:08:32 2021 Route addition via service succeeded
Thu May 27 10:08:32 2021 C:\WINDOWS\system32\route.exe ADD 192.168.0.0 MASK 255.255.255.0 10.81.234.5
Thu May 27 10:08:32 2021 Route addition via service succeeded
Thu May 27 10:08:32 2021 C:\WINDOWS\system32\route.exe ADD x.x.x.x MASK 255.255.255.255 192.168.1.1
Thu May 27 10:08:32 2021 ROUTE: route addition failed using service: The object already exists.   [status=5010 if_index=2]
Thu May 27 10:08:32 2021 Route addition via service failed
Thu May 27 10:08:32 2021 Initialization Sequence Completed
Thu May 27 10:08:32 2021 MANAGEMENT: >STATE:1622090312,CONNECTED,SUCCESS,10.81.234.23,x.x.x.x,8443,192.168.1.7,51052

0 oriens global over 4 years ago in reply to oriens global

user reconnected within 9 mins
Cancel
Vote Up 0 Vote Down

Cancel
0 oriens global over 4 years ago in reply to oriens global

idle timeout is 15mins
Cancel
Vote Up 0 Vote Down

Cancel
0 oriens global over 4 years ago in reply to oriens global

those who are connected 9:56AM vpn again reconnected 10:03am
Cancel
Vote Up 0 Vote Down

Cancel

0 oriens global over 4 years ago in reply to oriens global

Time	Log comp	Status	Username	Src IP	Auth client
27-05-2021 10:03	Firewall Authentication	Successful	jayashree	10.81.234.24	SSLVPN
27-05-2021 09:56	Firewall Authentication	Successful	jayashree	10.81.234.16	SSLVPN

Time

Log comp

Status

Username

Src IP

Auth client

27-05-2021 10:17

Firewall Authentication

Successful

lavanya

10.81.234.7

SSLVPN

27-05-2021 10:07

Firewall Authentication

Successful

lavanya

10.81.234.32

SSLVPN

if user are not using means, idle timeout is 15mins but its reconnecting in 10mins

0 oriens global over 4 years ago in reply to oriens global

Fullscreen 5001.bala_ssl_vpn_config.log Download

Thu May 27 10:00:17 2021 OpenVPN 2.3.8 i686-w64-mingw32 [SSL (OpenSSL)] [LZO] [IPv6] built on Jul  3 2017
Thu May 27 10:00:17 2021 library versions: OpenSSL 1.0.2l  25 May 2017, LZO 2.09
Enter Management Password:
Thu May 27 10:00:17 2021 MANAGEMENT: TCP Socket listening on [AF_INET]127.0.0.1:25340
Thu May 27 10:00:17 2021 Need hold release from management interface, waiting...
Thu May 27 10:00:18 2021 MANAGEMENT: Client connected from [AF_INET]127.0.0.1:25340
Thu May 27 10:00:18 2021 MANAGEMENT: CMD 'state on'
Thu May 27 10:00:18 2021 MANAGEMENT: CMD 'log all on'
Thu May 27 10:00:18 2021 MANAGEMENT: CMD 'hold off'
Thu May 27 10:00:18 2021 MANAGEMENT: CMD 'hold release'
Thu May 27 10:00:48 2021 MANAGEMENT: CMD 'username "Auth" "bala"'
Thu May 27 10:00:48 2021 MANAGEMENT: CMD 'password [...]'
Thu May 27 10:00:48 2021 Socket Buffers: R=[65536->65536] S=[65536->65536]
Thu May 27 10:00:48 2021 Attempting to establish TCP connection with [AF_INET]x.x.x.x:8443 [nonblock]
Thu May 27 10:00:48 2021 MANAGEMENT: >STATE:1622089848,TCP_CONNECT,,,,,,
Thu May 27 10:00:49 2021 TCP connection established with [AF_INET]x.x.x.x:8443
Thu May 27 10:00:49 2021 TCPv4_CLIENT link local: [undef]
Thu May 27 10:00:49 2021 TCPv4_CLIENT link remote: [AF_INET]x.x.x.x:8443
Thu May 27 10:00:49 2021 MANAGEMENT: >STATE:1622089849,WAIT,,,,,,
Thu May 27 10:00:49 2021 MANAGEMENT: >STATE:1622089849,AUTH,,,,,,
Thu May 27 10:00:49 2021 TLS: Initial packet from [AF_INET]x.x.x.x:8443, sid=2084651d a0858ddc
Thu May 27 10:00:49 2021 WARNING: this configuration may cache passwords in memory -- use the auth-nocache option to prevent this
Thu May 27 10:00:50 2021 VERIFY OK: depth=1, C=IN, ST=Tamilnadu, L=Chennai, O=oriens global marketing private limited, OU=OU, CN=Sophos_CA_C1B0A69GQFWG8DB, emailAddress=ashok@oriensworld.in
Thu May 27 10:00:50 2021 VERIFY X509NAME OK: C=IN, ST=Tamilnadu, L=Chennai, O=oriens global marketing private limited, OU=OU, CN=SophosApplianceCertificate_C1B0A69GQFWG8DB, emailAddress=ashok@oriensworld.in
Thu May 27 10:00:50 2021 VERIFY OK: depth=0, C=IN, ST=Tamilnadu, L=Chennai, O=oriens global marketing private limited, OU=OU, CN=SophosApplianceCertificate_C1B0A69GQFWG8DB, emailAddress=ashok@oriensworld.in
Thu May 27 10:00:50 2021 Data Channel Encrypt: Cipher 'AES-128-CBC' initialized with 128 bit key
Thu May 27 10:00:50 2021 Data Channel Encrypt: Using 256 bit message hash 'SHA256' for HMAC authentication
Thu May 27 10:00:50 2021 Data Channel Decrypt: Cipher 'AES-128-CBC' initialized with 128 bit key
Thu May 27 10:00:50 2021 Data Channel Decrypt: Using 256 bit message hash 'SHA256' for HMAC authentication
Thu May 27 10:00:50 2021 Control Channel: TLSv1.2, cipher TLSv1/SSLv3 DHE-RSA-AES256-GCM-SHA384, 2048 bit RSA
Thu May 27 10:00:50 2021 [SophosApplianceCertificate_C1B0A69GQFWG8DB] Peer Connection Initiated with [AF_INET]x.x.x.x:8443
Thu May 27 10:00:52 2021 MANAGEMENT: >STATE:1622089852,GET_CONFIG,,,,,,
Thu May 27 10:00:53 2021 SENT CONTROL [SophosApplianceCertificate_C1B0A69GQFWG8DB]: 'PUSH_REQUEST' (status=1)
Thu May 27 10:00:53 2021 PUSH: Received control message: 'PUSH_REPLY,route-gateway 10.81.234.5,sndbuf 0,rcvbuf 0,sndbuf 0,rcvbuf 0,ping 45,ping-restart 180,route 192.168.0.0 255.255.255.0,topology subnet,route remote_host 255.255.255.255 net_gateway,inactive 900 7680,ifconfig 10.81.234.15 255.255.255.0'
Thu May 27 10:00:53 2021 OPTIONS IMPORT: timers and/or timeouts modified
Thu May 27 10:00:53 2021 OPTIONS IMPORT: --sndbuf/--rcvbuf options modified
Thu May 27 10:00:53 2021 Socket Buffers: R=[65536->65536] S=[65536->65536]
Thu May 27 10:00:53 2021 OPTIONS IMPORT: --ifconfig/up options modified
Thu May 27 10:00:53 2021 OPTIONS IMPORT: route options modified
Thu May 27 10:00:53 2021 OPTIONS IMPORT: route-related options modified
Thu May 27 10:00:53 2021 ROUTE_GATEWAY 192.168.1.1/255.255.255.0 I=2 HWADDR=34:cf:f6:de:b5:2a
Thu May 27 10:00:53 2021 open_tun, tt->ipv6=0
Thu May 27 10:00:53 2021 TAP-WIN32 device [Ethernet 5] opened: \\.\Global\{57B12873-C0CA-44EC-9BFD-B91A6623C18C}.tap
Thu May 27 10:00:53 2021 TAP-Windows Driver Version 9.21
Thu May 27 10:00:53 2021 Set TAP-Windows TUN subnet mode network/local/netmask = 10.81.234.0/10.81.234.15/255.255.255.0 [SUCCEEDED]
Thu May 27 10:00:53 2021 Notified TAP-Windows driver to set a DHCP IP/netmask of 10.81.234.15/255.255.255.0 on interface {57B12873-C0CA-44EC-9BFD-B91A6623C18C} [DHCP-serv: 10.81.234.254, lease-time: 31536000]
Thu May 27 10:00:53 2021 Successful ARP Flush on interface [12] {57B12873-C0CA-44EC-9BFD-B91A6623C18C}
Thu May 27 10:00:53 2021 do_ifconfig, tt->ipv6=0, tt->did_ifconfig_ipv6_setup=0
Thu May 27 10:00:53 2021 MANAGEMENT: >STATE:1622089853,ASSIGN_IP,,10.81.234.15,,,,
Thu May 27 10:00:57 2021 TEST ROUTES: 3/3 succeeded len=3 ret=1 a=0 u/d=up
Thu May 27 10:00:57 2021 MANAGEMENT: >STATE:1622089857,ADD_ROUTES,,,,,,
Thu May 27 10:00:57 2021 C:\WINDOWS\system32\route.exe ADD x.x.x.x MASK 255.255.255.255 192.168.1.1
Thu May 27 10:00:57 2021 Route addition via service succeeded
Thu May 27 10:00:57 2021 C:\WINDOWS\system32\route.exe ADD 192.168.0.0 MASK 255.255.255.0 10.81.234.5
Thu May 27 10:00:57 2021 Route addition via service succeeded
Thu May 27 10:00:57 2021 C:\WINDOWS\system32\route.exe ADD x.x.x.x MASK 255.255.255.255 192.168.1.1
Thu May 27 10:00:57 2021 ROUTE: route addition failed using service: The object already exists.   [status=5010 if_index=2]
Thu May 27 10:00:57 2021 Route addition via service failed
Thu May 27 10:00:57 2021 Initialization Sequence Completed
Thu May 27 10:00:57 2021 MANAGEMENT: >STATE:1622089857,CONNECTED,SUCCESS,10.81.234.15,x.x.x.x,8443,192.168.1.7,64876
Thu May 27 10:07:04 2021 read TCPv4_CLIENT: Connection timed out (WSAETIMEDOUT) (code=10060)
Thu May 27 10:07:04 2021 Connection reset, restarting [-1]
Thu May 27 10:07:04 2021 SIGUSR1[soft,connection-reset] received, process restarting
Thu May 27 10:07:04 2021 MANAGEMENT: >STATE:1622090224,RECONNECTING,connection-reset,,,,,
Thu May 27 10:07:04 2021 Restart pause, 5 second(s)
Thu May 27 10:07:09 2021 Socket Buffers: R=[65536->65536] S=[65536->65536]
Thu May 27 10:07:09 2021 Attempting to establish TCP connection with [AF_INET]x.x.x.x:8443 [nonblock]
Thu May 27 10:07:09 2021 MANAGEMENT: >STATE:1622090229,TCP_CONNECT,,,,,,
Thu May 27 10:07:10 2021 TCP connection established with [AF_INET]x.x.x.x:8443
Thu May 27 10:07:10 2021 TCPv4_CLIENT link local: [undef]
Thu May 27 10:07:10 2021 TCPv4_CLIENT link remote: [AF_INET]x.x.x.x:8443
Thu May 27 10:07:10 2021 MANAGEMENT: >STATE:1622090230,WAIT,,,,,,
Thu May 27 10:07:10 2021 MANAGEMENT: >STATE:1622090230,AUTH,,,,,,
Thu May 27 10:07:10 2021 TLS: Initial packet from [AF_INET]x.x.x.x:8443, sid=a0197821 895a7060
Thu May 27 10:07:11 2021 VERIFY OK: depth=1, C=IN, ST=Tamilnadu, L=Chennai, O=oriens global marketing private limited, OU=OU, CN=Sophos_CA_C1B0A69GQFWG8DB, emailAddress=ashok@oriensworld.in
Thu May 27 10:07:11 2021 VERIFY X509NAME OK: C=IN, ST=Tamilnadu, L=Chennai, O=oriens global marketing private limited, OU=OU, CN=SophosApplianceCertificate_C1B0A69GQFWG8DB, emailAddress=ashok@oriensworld.in
Thu May 27 10:07:11 2021 VERIFY OK: depth=0, C=IN, ST=Tamilnadu, L=Chennai, O=oriens global marketing private limited, OU=OU, CN=SophosApplianceCertificate_C1B0A69GQFWG8DB, emailAddress=ashok@oriensworld.in
Thu May 27 10:07:31 2021 read TCPv4_CLIENT: Connection timed out (WSAETIMEDOUT) (code=10060)
Thu May 27 10:07:31 2021 Connection reset, restarting [-1]
Thu May 27 10:07:31 2021 SIGUSR1[soft,connection-reset] received, process restarting
Thu May 27 10:07:31 2021 MANAGEMENT: >STATE:1622090251,RECONNECTING,connection-reset,,,,,
Thu May 27 10:07:31 2021 Restart pause, 5 second(s)
Thu May 27 10:07:36 2021 Socket Buffers: R=[65536->65536] S=[65536->65536]
Thu May 27 10:07:36 2021 Attempting to establish TCP connection with [AF_INET]10.11.28.18:8443 [nonblock]
Thu May 27 10:07:36 2021 MANAGEMENT: >STATE:1622090256,TCP_CONNECT,,,,,,
Thu May 27 10:07:46 2021 TCP: connect to [AF_INET]10.11.28.18:8443 failed, will try again in 5 seconds: The system tried to join a drive to a directory on a joined drive.
Thu May 27 10:07:46 2021 SIGUSR1[soft,init_instance] received, process restarting
Thu May 27 10:07:46 2021 MANAGEMENT: >STATE:1622090266,RECONNECTING,init_instance,,,,,
Thu May 27 10:07:46 2021 Restart pause, 5 second(s)
Thu May 27 10:07:51 2021 Socket Buffers: R=[65536->65536] S=[65536->65536]
Thu May 27 10:07:51 2021 Attempting to establish TCP connection with [AF_INET]192.168.0.150:8443 [nonblock]
Thu May 27 10:07:51 2021 MANAGEMENT: >STATE:1622090271,TCP_CONNECT,,,,,,
Thu May 27 10:08:01 2021 TCP: connect to [AF_INET]192.168.0.150:8443 failed, will try again in 5 seconds: The system tried to join a drive to a directory on a joined drive.
Thu May 27 10:08:01 2021 SIGUSR1[soft,init_instance] received, process restarting
Thu May 27 10:08:01 2021 MANAGEMENT: >STATE:1622090281,RECONNECTING,init_instance,,,,,
Thu May 27 10:08:01 2021 Restart pause, 5 second(s)
Thu May 27 10:08:06 2021 Socket Buffers: R=[65536->65536] S=[65536->65536]
Thu May 27 10:08:06 2021 Attempting to establish TCP connection with [AF_INET]10.255.0.1:8443 [nonblock]
Thu May 27 10:08:06 2021 MANAGEMENT: >STATE:1622090286,TCP_CONNECT,,,,,,
Thu May 27 10:08:16 2021 TCP: connect to [AF_INET]10.255.0.1:8443 failed, will try again in 5 seconds: The system tried to join a drive to a directory on a joined drive.
Thu May 27 10:08:16 2021 SIGUSR1[soft,init_instance] received, process restarting
Thu May 27 10:08:16 2021 MANAGEMENT: >STATE:1622090296,RECONNECTING,init_instance,,,,,
Thu May 27 10:08:16 2021 Restart pause, 5 second(s)
Thu May 27 10:08:21 2021 Socket Buffers: R=[65536->65536] S=[65536->65536]
Thu May 27 10:08:21 2021 Attempting to establish TCP connection with [AF_INET]x.x.x.x:8443 [nonblock]
Thu May 27 10:08:21 2021 MANAGEMENT: >STATE:1622090301,TCP_CONNECT,,,,,,
Thu May 27 10:08:22 2021 TCP connection established with [AF_INET]x.x.x.x:8443
Thu May 27 10:08:22 2021 TCPv4_CLIENT link local: [undef]
Thu May 27 10:08:22 2021 TCPv4_CLIENT link remote: [AF_INET]x.x.x.x:8443
Thu May 27 10:08:22 2021 MANAGEMENT: >STATE:1622090302,WAIT,,,,,,
Thu May 27 10:08:23 2021 MANAGEMENT: >STATE:1622090303,AUTH,,,,,,
Thu May 27 10:08:23 2021 TLS: Initial packet from [AF_INET]x.x.x.x:8443, sid=5d4f13e1 cb30fcec
Thu May 27 10:08:24 2021 VERIFY OK: depth=1, C=IN, ST=Tamilnadu, L=Chennai, O=oriens global marketing private limited, OU=OU, CN=Sophos_CA_C1B0A69GQFWG8DB, emailAddress=ashok@oriensworld.in
Thu May 27 10:08:24 2021 VERIFY X509NAME OK: C=IN, ST=Tamilnadu, L=Chennai, O=oriens global marketing private limited, OU=OU, CN=SophosApplianceCertificate_C1B0A69GQFWG8DB, emailAddress=ashok@oriensworld.in
Thu May 27 10:08:24 2021 VERIFY OK: depth=0, C=IN, ST=Tamilnadu, L=Chennai, O=oriens global marketing private limited, OU=OU, CN=SophosApplianceCertificate_C1B0A69GQFWG8DB, emailAddress=ashok@oriensworld.in
Thu May 27 10:08:25 2021 Data Channel Encrypt: Cipher 'AES-128-CBC' initialized with 128 bit key
Thu May 27 10:08:25 2021 Data Channel Encrypt: Using 256 bit message hash 'SHA256' for HMAC authentication
Thu May 27 10:08:25 2021 Data Channel Decrypt: Cipher 'AES-128-CBC' initialized with 128 bit key
Thu May 27 10:08:25 2021 Data Channel Decrypt: Using 256 bit message hash 'SHA256' for HMAC authentication
Thu May 27 10:08:25 2021 Control Channel: TLSv1.2, cipher TLSv1/SSLv3 DHE-RSA-AES256-GCM-SHA384, 2048 bit RSA
Thu May 27 10:08:25 2021 [SophosApplianceCertificate_C1B0A69GQFWG8DB] Peer Connection Initiated with [AF_INET]x.x.x.x:8443
Thu May 27 10:08:26 2021 MANAGEMENT: >STATE:1622090306,GET_CONFIG,,,,,,
Thu May 27 10:08:27 2021 SENT CONTROL [SophosApplianceCertificate_C1B0A69GQFWG8DB]: 'PUSH_REQUEST' (status=1)
Thu May 27 10:08:27 2021 PUSH: Received control message: 'PUSH_REPLY,route-gateway 10.81.234.5,sndbuf 0,rcvbuf 0,sndbuf 0,rcvbuf 0,ping 45,ping-restart 180,route 192.168.0.0 255.255.255.0,topology subnet,route remote_host 255.255.255.255 net_gateway,inactive 900 7680,ifconfig 10.81.234.23 255.255.255.0'
Thu May 27 10:08:27 2021 OPTIONS IMPORT: timers and/or timeouts modified
Thu May 27 10:08:27 2021 OPTIONS IMPORT: --sndbuf/--rcvbuf options modified
Thu May 27 10:08:27 2021 Socket Buffers: R=[65536->65536] S=[65536->65536]
Thu May 27 10:08:27 2021 OPTIONS IMPORT: --ifconfig/up options modified
Thu May 27 10:08:27 2021 OPTIONS IMPORT: route options modified
Thu May 27 10:08:27 2021 OPTIONS IMPORT: route-related options modified
Thu May 27 10:08:27 2021 Preserving previous TUN/TAP instance: Ethernet 5
Thu May 27 10:08:27 2021 NOTE: Pulled options changed on restart, will need to close and reopen TUN/TAP device.
Thu May 27 10:08:27 2021 C:\WINDOWS\system32\route.exe DELETE 192.168.0.0 MASK 255.255.255.0 10.81.234.5
Thu May 27 10:08:27 2021 Route deletion via service succeeded
Thu May 27 10:08:27 2021 C:\WINDOWS\system32\route.exe DELETE x.x.x.x MASK 255.255.255.255 192.168.1.1
Thu May 27 10:08:27 2021 Route deletion via service succeeded
Thu May 27 10:08:27 2021 Closing TUN/TAP interface
Thu May 27 10:08:28 2021 ROUTE_GATEWAY 192.168.1.1/255.255.255.0 I=2 HWADDR=34:cf:f6:de:b5:2a
Thu May 27 10:08:28 2021 open_tun, tt->ipv6=0
Thu May 27 10:08:28 2021 TAP-WIN32 device [Ethernet 5] opened: \\.\Global\{57B12873-C0CA-44EC-9BFD-B91A6623C18C}.tap
Thu May 27 10:08:28 2021 TAP-Windows Driver Version 9.21
Thu May 27 10:08:28 2021 Set TAP-Windows TUN subnet mode network/local/netmask = 10.81.234.0/10.81.234.23/255.255.255.0 [SUCCEEDED]
Thu May 27 10:08:28 2021 Notified TAP-Windows driver to set a DHCP IP/netmask of 10.81.234.23/255.255.255.0 on interface {57B12873-C0CA-44EC-9BFD-B91A6623C18C} [DHCP-serv: 10.81.234.254, lease-time: 31536000]
Thu May 27 10:08:28 2021 Successful ARP Flush on interface [12] {57B12873-C0CA-44EC-9BFD-B91A6623C18C}
Thu May 27 10:08:28 2021 do_ifconfig, tt->ipv6=0, tt->did_ifconfig_ipv6_setup=0
Thu May 27 10:08:28 2021 MANAGEMENT: >STATE:1622090308,ASSIGN_IP,,10.81.234.23,,,,
Thu May 27 10:08:32 2021 TEST ROUTES: 3/3 succeeded len=3 ret=1 a=0 u/d=up
Thu May 27 10:08:32 2021 MANAGEMENT: >STATE:1622090312,ADD_ROUTES,,,,,,
Thu May 27 10:08:32 2021 C:\WINDOWS\system32\route.exe ADD x.x.x.x MASK 255.255.255.255 192.168.1.1
Thu May 27 10:08:32 2021 Route addition via service succeeded
Thu May 27 10:08:32 2021 C:\WINDOWS\system32\route.exe ADD 192.168.0.0 MASK 255.255.255.0 10.81.234.5
Thu May 27 10:08:32 2021 Route addition via service succeeded
Thu May 27 10:08:32 2021 C:\WINDOWS\system32\route.exe ADD x.x.x.x MASK 255.255.255.255 192.168.1.1
Thu May 27 10:08:32 2021 ROUTE: route addition failed using service: The object already exists.   [status=5010 if_index=2]
Thu May 27 10:08:32 2021 Route addition via service failed
Thu May 27 10:08:32 2021 Initialization Sequence Completed
Thu May 27 10:08:32 2021 MANAGEMENT: >STATE:1622090312,CONNECTED,SUCCESS,10.81.234.23,x.x.x.x,8443,192.168.1.7,51052
Thu May 27 11:02:40 2021 read TCPv4_CLIENT: Connection timed out (WSAETIMEDOUT) (code=10060)
Thu May 27 11:02:40 2021 Connection reset, restarting [-1]
Thu May 27 11:02:40 2021 SIGUSR1[soft,connection-reset] received, process restarting
Thu May 27 11:02:40 2021 MANAGEMENT: >STATE:1622093560,RECONNECTING,connection-reset,,,,,
Thu May 27 11:02:40 2021 Restart pause, 5 second(s)
Thu May 27 11:02:45 2021 Socket Buffers: R=[65536->65536] S=[65536->65536]
Thu May 27 11:02:45 2021 Attempting to establish TCP connection with [AF_INET]x.x.x.x:8443 [nonblock]
Thu May 27 11:02:45 2021 MANAGEMENT: >STATE:1622093565,TCP_CONNECT,,,,,,
Thu May 27 11:02:46 2021 TCP connection established with [AF_INET]x.x.x.x:8443
Thu May 27 11:02:46 2021 TCPv4_CLIENT link local: [undef]
Thu May 27 11:02:46 2021 TCPv4_CLIENT link remote: [AF_INET]x.x.x.x:8443
Thu May 27 11:02:46 2021 MANAGEMENT: >STATE:1622093566,WAIT,,,,,,
Thu May 27 11:02:46 2021 MANAGEMENT: >STATE:1622093566,AUTH,,,,,,
Thu May 27 11:02:46 2021 TLS: Initial packet from [AF_INET]x.x.x.x:8443, sid=42b99071 d666ff73
Thu May 27 11:02:46 2021 VERIFY OK: depth=1, C=IN, ST=Tamilnadu, L=Chennai, O=oriens global marketing private limited, OU=OU, CN=Sophos_CA_C1B0A69GQFWG8DB, emailAddress=ashok@oriensworld.in
Thu May 27 11:02:46 2021 VERIFY X509NAME OK: C=IN, ST=Tamilnadu, L=Chennai, O=oriens global marketing private limited, OU=OU, CN=SophosApplianceCertificate_C1B0A69GQFWG8DB, emailAddress=ashok@oriensworld.in
Thu May 27 11:02:46 2021 VERIFY OK: depth=0, C=IN, ST=Tamilnadu, L=Chennai, O=oriens global marketing private limited, OU=OU, CN=SophosApplianceCertificate_C1B0A69GQFWG8DB, emailAddress=ashok@oriensworld.in
Thu May 27 11:02:48 2021 Data Channel Encrypt: Cipher 'AES-128-CBC' initialized with 128 bit key
Thu May 27 11:02:48 2021 Data Channel Encrypt: Using 256 bit message hash 'SHA256' for HMAC authentication
Thu May 27 11:02:48 2021 Data Channel Decrypt: Cipher 'AES-128-CBC' initialized with 128 bit key
Thu May 27 11:02:48 2021 Data Channel Decrypt: Using 256 bit message hash 'SHA256' for HMAC authentication
Thu May 27 11:02:48 2021 Control Channel: TLSv1.2, cipher TLSv1/SSLv3 DHE-RSA-AES256-GCM-SHA384, 2048 bit RSA
Thu May 27 11:02:48 2021 [SophosApplianceCertificate_C1B0A69GQFWG8DB] Peer Connection Initiated with [AF_INET]x.x.x.x:8443
Thu May 27 11:02:49 2021 MANAGEMENT: >STATE:1622093569,GET_CONFIG,,,,,,
Thu May 27 11:02:50 2021 SENT CONTROL [SophosApplianceCertificate_C1B0A69GQFWG8DB]: 'PUSH_REQUEST' (status=1)
Thu May 27 11:02:50 2021 PUSH: Received control message: 'PUSH_REPLY,route-gateway 10.81.234.5,sndbuf 0,rcvbuf 0,sndbuf 0,rcvbuf 0,ping 45,ping-restart 180,route 192.168.0.0 255.255.255.0,topology subnet,route remote_host 255.255.255.255 net_gateway,inactive 900 7680,ifconfig 10.81.234.15 255.255.255.0'
Thu May 27 11:02:50 2021 OPTIONS IMPORT: timers and/or timeouts modified
Thu May 27 11:02:50 2021 OPTIONS IMPORT: --sndbuf/--rcvbuf options modified
Thu May 27 11:02:50 2021 Socket Buffers: R=[65536->65536] S=[65536->65536]
Thu May 27 11:02:50 2021 OPTIONS IMPORT: --ifconfig/up options modified
Thu May 27 11:02:50 2021 OPTIONS IMPORT: route options modified
Thu May 27 11:02:50 2021 OPTIONS IMPORT: route-related options modified
Thu May 27 11:02:50 2021 Preserving previous TUN/TAP instance: Ethernet 5
Thu May 27 11:02:50 2021 NOTE: Pulled options changed on restart, will need to close and reopen TUN/TAP device.
Thu May 27 11:02:50 2021 C:\WINDOWS\system32\route.exe DELETE 192.168.0.0 MASK 255.255.255.0 10.81.234.5
Thu May 27 11:02:50 2021 Route deletion via service succeeded
Thu May 27 11:02:50 2021 C:\WINDOWS\system32\route.exe DELETE x.x.x.x MASK 255.255.255.255 192.168.1.1
Thu May 27 11:02:50 2021 Route deletion via service succeeded
Thu May 27 11:02:50 2021 Closing TUN/TAP interface
Thu May 27 11:02:51 2021 ROUTE_GATEWAY 192.168.1.1/255.255.255.0 I=2 HWADDR=34:cf:f6:de:b5:2a
Thu May 27 11:02:51 2021 open_tun, tt->ipv6=0
Thu May 27 11:02:51 2021 TAP-WIN32 device [Ethernet 5] opened: \\.\Global\{57B12873-C0CA-44EC-9BFD-B91A6623C18C}.tap
Thu May 27 11:02:51 2021 TAP-Windows Driver Version 9.21
Thu May 27 11:02:51 2021 Set TAP-Windows TUN subnet mode network/local/netmask = 10.81.234.0/10.81.234.15/255.255.255.0 [SUCCEEDED]
Thu May 27 11:02:51 2021 Notified TAP-Windows driver to set a DHCP IP/netmask of 10.81.234.15/255.255.255.0 on interface {57B12873-C0CA-44EC-9BFD-B91A6623C18C} [DHCP-serv: 10.81.234.254, lease-time: 31536000]
Thu May 27 11:02:51 2021 Successful ARP Flush on interface [12] {57B12873-C0CA-44EC-9BFD-B91A6623C18C}
Thu May 27 11:02:51 2021 do_ifconfig, tt->ipv6=0, tt->did_ifconfig_ipv6_setup=0
Thu May 27 11:02:51 2021 MANAGEMENT: >STATE:1622093571,ASSIGN_IP,,10.81.234.15,,,,
Thu May 27 11:02:55 2021 TEST ROUTES: 3/3 succeeded len=3 ret=1 a=0 u/d=up
Thu May 27 11:02:55 2021 MANAGEMENT: >STATE:1622093575,ADD_ROUTES,,,,,,
Thu May 27 11:02:55 2021 C:\WINDOWS\system32\route.exe ADD x.x.x.x MASK 255.255.255.255 192.168.1.1
Thu May 27 11:02:55 2021 Route addition via service succeeded
Thu May 27 11:02:55 2021 C:\WINDOWS\system32\route.exe ADD 192.168.0.0 MASK 255.255.255.0 10.81.234.5
Thu May 27 11:02:55 2021 Route addition via service succeeded
Thu May 27 11:02:55 2021 C:\WINDOWS\system32\route.exe ADD x.x.x.x MASK 255.255.255.255 192.168.1.1
Thu May 27 11:02:55 2021 ROUTE: route addition failed using service: The object already exists.   [status=5010 if_index=2]
Thu May 27 11:02:55 2021 Route addition via service failed
Thu May 27 11:02:55 2021 Initialization Sequence Completed
Thu May 27 11:02:55 2021 MANAGEMENT: >STATE:1622093575,CONNECTED,SUCCESS,10.81.234.15,x.x.x.x,8443,192.168.1.7,49709
Thu May 27 11:03:36 2021 read TCPv4_CLIENT: Connection timed out (WSAETIMEDOUT) (code=10060)
Thu May 27 11:03:36 2021 Connection reset, restarting [-1]
Thu May 27 11:03:36 2021 SIGUSR1[soft,connection-reset] received, process restarting
Thu May 27 11:03:36 2021 MANAGEMENT: >STATE:1622093616,RECONNECTING,connection-reset,,,,,
Thu May 27 11:03:36 2021 Restart pause, 5 second(s)
Thu May 27 11:03:41 2021 Socket Buffers: R=[65536->65536] S=[65536->65536]
Thu May 27 11:03:41 2021 Attempting to establish TCP connection with [AF_INET]x.x.x.x:8443 [nonblock]
Thu May 27 11:03:41 2021 MANAGEMENT: >STATE:1622093621,TCP_CONNECT,,,,,,
Thu May 27 11:03:42 2021 TCP connection established with [AF_INET]x.x.x.x:8443
Thu May 27 11:03:42 2021 TCPv4_CLIENT link local: [undef]
Thu May 27 11:03:42 2021 TCPv4_CLIENT link remote: [AF_INET]x.x.x.x:8443
Thu May 27 11:03:42 2021 MANAGEMENT: >STATE:1622093622,WAIT,,,,,,
Thu May 27 11:03:42 2021 MANAGEMENT: >STATE:1622093622,AUTH,,,,,,
Thu May 27 11:03:42 2021 TLS: Initial packet from [AF_INET]x.x.x.x:8443, sid=8c34681d 089e9902
Thu May 27 11:03:43 2021 VERIFY OK: depth=1, C=IN, ST=Tamilnadu, L=Chennai, O=oriens global marketing private limited, OU=OU, CN=Sophos_CA_C1B0A69GQFWG8DB, emailAddress=ashok@oriensworld.in
Thu May 27 11:03:43 2021 VERIFY X509NAME OK: C=IN, ST=Tamilnadu, L=Chennai, O=oriens global marketing private limited, OU=OU, CN=SophosApplianceCertificate_C1B0A69GQFWG8DB, emailAddress=ashok@oriensworld.in
Thu May 27 11:03:43 2021 VERIFY OK: depth=0, C=IN, ST=Tamilnadu, L=Chennai, O=oriens global marketing private limited, OU=OU, CN=SophosApplianceCertificate_C1B0A69GQFWG8DB, emailAddress=ashok@oriensworld.in
Thu May 27 11:03:44 2021 Data Channel Encrypt: Cipher 'AES-128-CBC' initialized with 128 bit key
Thu May 27 11:03:44 2021 Data Channel Encrypt: Using 256 bit message hash 'SHA256' for HMAC authentication
Thu May 27 11:03:44 2021 Data Channel Decrypt: Cipher 'AES-128-CBC' initialized with 128 bit key
Thu May 27 11:03:44 2021 Data Channel Decrypt: Using 256 bit message hash 'SHA256' for HMAC authentication
Thu May 27 11:03:44 2021 Control Channel: TLSv1.2, cipher TLSv1/SSLv3 DHE-RSA-AES256-GCM-SHA384, 2048 bit RSA
Thu May 27 11:03:44 2021 [SophosApplianceCertificate_C1B0A69GQFWG8DB] Peer Connection Initiated with [AF_INET]x.x.x.x:8443
Thu May 27 11:03:45 2021 MANAGEMENT: >STATE:1622093625,GET_CONFIG,,,,,,
Thu May 27 11:03:46 2021 SENT CONTROL [SophosApplianceCertificate_C1B0A69GQFWG8DB]: 'PUSH_REQUEST' (status=1)
Thu May 27 11:03:47 2021 PUSH: Received control message: 'PUSH_REPLY,route-gateway 10.81.234.5,sndbuf 0,rcvbuf 0,sndbuf 0,rcvbuf 0,ping 45,ping-restart 180,route 192.168.0.0 255.255.255.0,topology subnet,route remote_host 255.255.255.255 net_gateway,inactive 900 7680,ifconfig 10.81.234.14 255.255.255.0'
Thu May 27 11:03:47 2021 OPTIONS IMPORT: timers and/or timeouts modified
Thu May 27 11:03:47 2021 OPTIONS IMPORT: --sndbuf/--rcvbuf options modified
Thu May 27 11:03:47 2021 Socket Buffers: R=[65536->65536] S=[65536->65536]
Thu May 27 11:03:47 2021 OPTIONS IMPORT: --ifconfig/up options modified
Thu May 27 11:03:47 2021 OPTIONS IMPORT: route options modified
Thu May 27 11:03:47 2021 OPTIONS IMPORT: route-related options modified
Thu May 27 11:03:47 2021 Preserving previous TUN/TAP instance: Ethernet 5
Thu May 27 11:03:47 2021 NOTE: Pulled options changed on restart, will need to close and reopen TUN/TAP device.
Thu May 27 11:03:47 2021 C:\WINDOWS\system32\route.exe DELETE 192.168.0.0 MASK 255.255.255.0 10.81.234.5
Thu May 27 11:03:47 2021 Route deletion via service succeeded
Thu May 27 11:03:47 2021 C:\WINDOWS\system32\route.exe DELETE x.x.x.x MASK 255.255.255.255 192.168.1.1
Thu May 27 11:03:47 2021 Route deletion via service succeeded
Thu May 27 11:03:47 2021 Closing TUN/TAP interface
Thu May 27 11:03:48 2021 ROUTE_GATEWAY 192.168.1.1/255.255.255.0 I=2 HWADDR=34:cf:f6:de:b5:2a
Thu May 27 11:03:48 2021 open_tun, tt->ipv6=0
Thu May 27 11:03:48 2021 TAP-WIN32 device [Ethernet 5] opened: \\.\Global\{57B12873-C0CA-44EC-9BFD-B91A6623C18C}.tap
Thu May 27 11:03:48 2021 TAP-Windows Driver Version 9.21
Thu May 27 11:03:48 2021 Set TAP-Windows TUN subnet mode network/local/netmask = 10.81.234.0/10.81.234.14/255.255.255.0 [SUCCEEDED]
Thu May 27 11:03:48 2021 Notified TAP-Windows driver to set a DHCP IP/netmask of 10.81.234.14/255.255.255.0 on interface {57B12873-C0CA-44EC-9BFD-B91A6623C18C} [DHCP-serv: 10.81.234.254, lease-time: 31536000]
Thu May 27 11:03:48 2021 Successful ARP Flush on interface [12] {57B12873-C0CA-44EC-9BFD-B91A6623C18C}
Thu May 27 11:03:48 2021 do_ifconfig, tt->ipv6=0, tt->did_ifconfig_ipv6_setup=0
Thu May 27 11:03:48 2021 MANAGEMENT: >STATE:1622093628,ASSIGN_IP,,10.81.234.14,,,,
Thu May 27 11:03:52 2021 TEST ROUTES: 3/3 succeeded len=3 ret=1 a=0 u/d=up
Thu May 27 11:03:52 2021 MANAGEMENT: >STATE:1622093632,ADD_ROUTES,,,,,,
Thu May 27 11:03:52 2021 C:\WINDOWS\system32\route.exe ADD x.x.x.x MASK 255.255.255.255 192.168.1.1
Thu May 27 11:03:52 2021 Route addition via service succeeded
Thu May 27 11:03:52 2021 C:\WINDOWS\system32\route.exe ADD 192.168.0.0 MASK 255.255.255.0 10.81.234.5
Thu May 27 11:03:52 2021 Route addition via service succeeded
Thu May 27 11:03:52 2021 C:\WINDOWS\system32\route.exe ADD x.x.x.x MASK 255.255.255.255 192.168.1.1
Thu May 27 11:03:52 2021 ROUTE: route addition failed using service: The object already exists.   [status=5010 if_index=2]
Thu May 27 11:03:52 2021 Route addition via service failed
Thu May 27 11:03:52 2021 Initialization Sequence Completed
Thu May 27 11:03:52 2021 MANAGEMENT: >STATE:1622093632,CONNECTED,SUCCESS,10.81.234.14,x.x.x.x,8443,192.168.1.7,62330

0 oriens global over 4 years ago in reply to oriens global

again user disconnected while working
Cancel
Vote Up 0 Vote Down

Cancel
0 FormerMember over 4 years ago in reply to oriens global

I'd suggest opening a support case to get it investigated further. Also, please share the case ID in PM.
Cancel
Vote Up 0 Vote Down

Cancel

Reply

0 FormerMember over 4 years ago in reply to oriens global

I'd suggest opening a support case to get it investigated further. Also, please share the case ID in PM.
Cancel
Vote Up 0 Vote Down

Cancel

Children

No Data
