DNS over IPsec client

Which version do you use? Is the IP, you are using, also included in the IPsec site to site connection (SA)?

I use the newest.

No the ip is Not included, so i Need the nat.

On the old UTM it worked with Masq.

If you change the NAT from outbound interface to ANY, does it NAT the traffic?

The Traffic capture log in webadmin should indicate, if a NAT + Firewall hit or not. Work torwards the results there, if you find the non matching rule there.

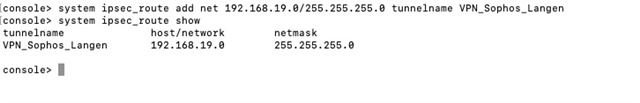

Please ensure that you've added an IPsec route in CLI.

console> system ipsec_route add net 192.168.19.0/255.255.255.0 tunnelname IPsecTunnel
console>
console> system ipsec_route show
tunnelname host/network netmask
IPsecTunnel 192.168.19.0 255.255.255.0

NAT and firewall rule configuration may look like below.

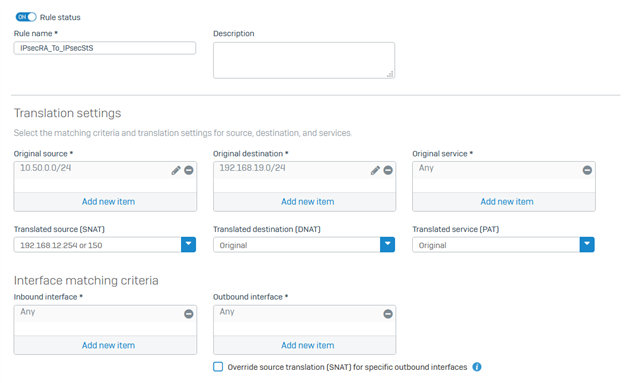

NAT rule:

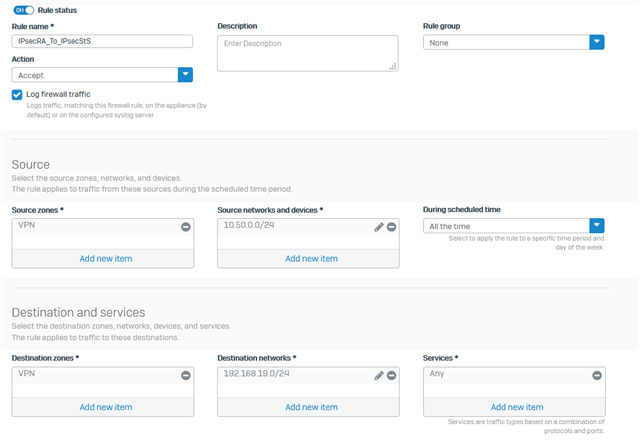

Firewall rule:

Hallo

you can See exact the Same Rules from upon.

i should add per cli a Route too?

i added with cli but it doesnt work. the nat rule workes in the capture log but i cant reach or ping it

Just to be sure, Firewall Rule 14 and NAT Rule 4 are those exact Rules shown by your screenshots?

Yes, they are Firewall Rule 13 and NAT Rule 4 like the pictures from me.

Seems like the route is not applied yet. Whats the difference between the time frame of the commands and your current log viewer? Because the outbound interface should be IPsec0. Thats an indication, the route is not applied, could be a old connection. You could flush the table or wait until the connection disconnects and retry.

Can somebody help me with TeamViewer or somerhing else

Please open a Support Case for Remote assistance.

Now its working after a reboot of the XG135.

Thanks
The Problem was the route over cli

Now its working after a reboot of the XG135.

Thanks
The Problem was the route over cli
