Route Group of Devices Out 2nd WAN

Douglas Drury

Hi All,

I have a network of about 10 Laptops/Desktop with 3 IP Phones that connect to a remote phone system.  I'm trying to setup a policy that has the 3 IP homes in it and can send there traffic out of the 2nd WAN port thus leaving the other devices to use the 1st WAN port.

Normally I would use a voice VLAN but the IP phones they have do not support Voice VLAN.

I've been trying to set this up but I'm not having much success. Could somebody point me in the right direction of what I should do such as a KB page?

My policy

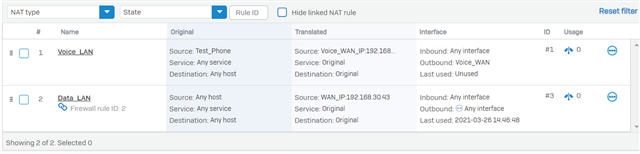

My NAT

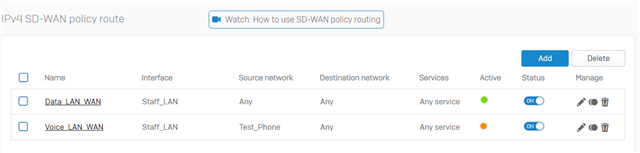

SD WAN Policy



This thread was automatically locked due to age.
Parents
  • 0

    Hello there,

    Thank you for contacting the Sophos Community.

    In the SD_WAN rule, it looks like your DATA LAN rule is taking precedence over the Test_Phone IPs.

    I would recommend you to remove the DATA_LAN_WAN rule and only leave the Voice_LAN.

    Take a look at this RR and the video within.

    Regards,

Reply
  • 0

    Hello there,

    Thank you for contacting the Sophos Community.

    In the SD_WAN rule, it looks like your DATA LAN rule is taking precedence over the Test_Phone IPs.

    I would recommend you to remove the DATA_LAN_WAN rule and only leave the Voice_LAN.

    Take a look at this RR and the video within.

    Regards,
