Routing between two internal networks

Question

Hi there,
 I have two internal LAN networks on two ports. (Ports 1 & 4)

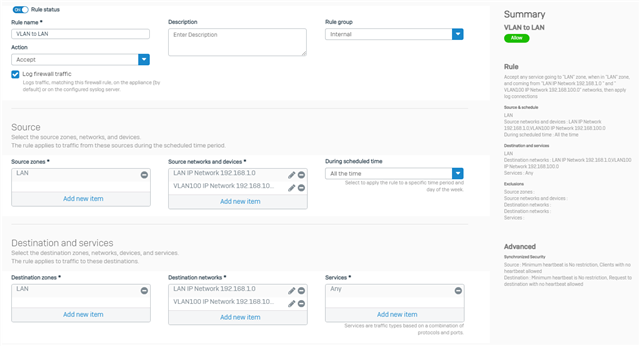

I have an internal LAN-LAN rule with all filtering/scanning disabled. Logs show all traffic to the 192.168.100.0 network is allowed.
 From PCs on the 192.168.1.0 network I can ping 192.168.100.250 but not machines in the 192.168.100.0 network.
 Would greatly appreciate any help with with this.
 Thanks

rfcat_vk · Answer

The rule would be something like this
 source lan network1/24 and network4/24 destination lan network1/24 network4/24 any
 ian

emmosophos · Answer

Hello there,
 Thank you for contacting the Sophos Community.
 If you do a drop-packet Capture on the console of the XG (Press 5>4 when SSH into the XG), do you see any packets being dropped? console > drop-packet-capture host '192.168.100.x' (substitute the X for the IP of the computer network you&rsquo;re trying to Ping)
 Additionally, if you don't really need the bridge I would recommend you to get rid off it, as I only see Port1 being used, if you need it make sure routing is enabled in the bridge.
 Also if you have any SD_WAN policy, make sure the precedence is set to:
 static, sdwan_policyroute VPN
 You can check by running this command in the console:
 console> system route_precedence show

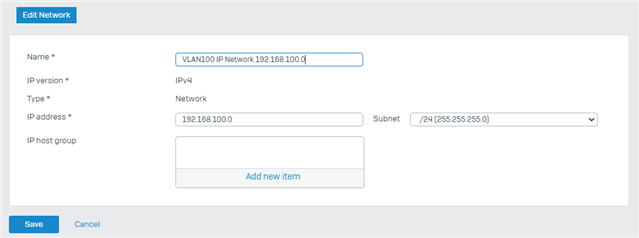

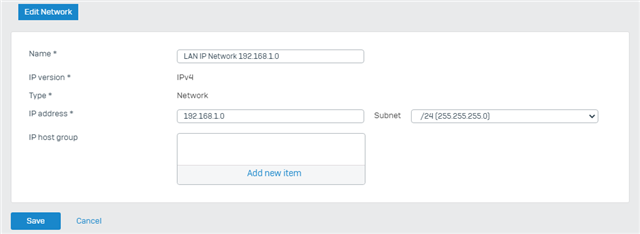

 Also as rfcat_vk mentioned, make sure the Source Networks and Destination Networks are /24 ranges
 Regards,
