Good Evening,

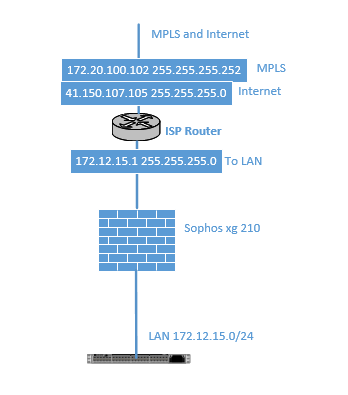

I have a Sophos XG 210 firewall on my network. ISP has a single router both for Internet and MPLS as below.
- There is only one cable from router to firewall carrying both MPLS and internet traffic.
- All routing to branches done on the ISP router.
- TO LAN cable from the router was connected directly to the switch before introduction of the firewall.
Below are configs on ISP router:
interface GigabitEthernet0/0.1104
description POT_INTERNET
encapsulation dot1Q 1104
ip address 41.150.107.105 255.255.255.0
ip nat outside
ip virtual-reassembly in
!
interface GigabitEthernet0/0.3663
description POT_MPLS
encapsulation dot1Q 3663
ip address 172.20.100.102 255.255.255.252
ip nat inside
ip virtual-reassembly in
!
interface GigabitEthernet0/1
description IMA_LAN
ip address 172.12.15.1 255.255.255.0
ip nat inside
ip virtual-reassembly in
duplex auto
speed auto
QUESTION:
I need to configure the firewall on port 3. How should i do it?(What IPs do I use?). Port 1 on the firewall goes to LAN.
Thank You in advance.
