IPsec remote access VPN not passing traffic

Question

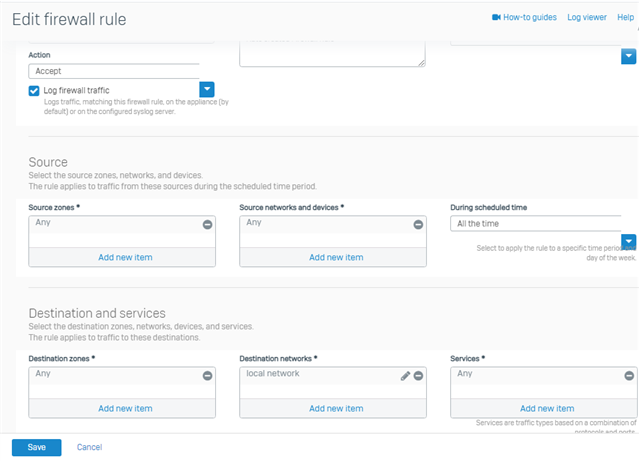

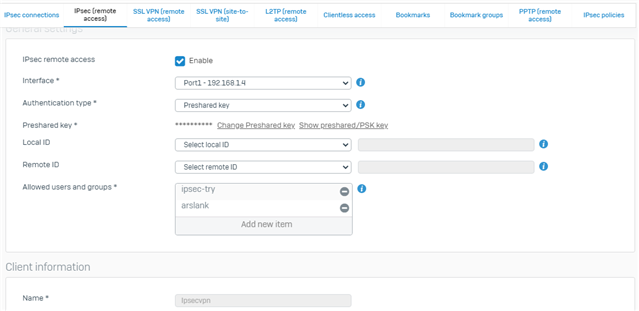

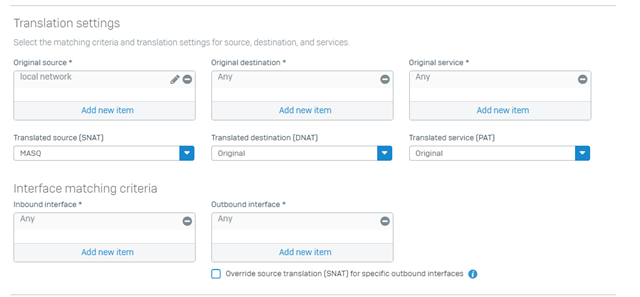

Got stuck in very uncommon issue. Im using XG Xtream SFOS 18.0.4 MR-4.I`ve tried to create IPsec for remote user and it does connects successfully but doesnt pass any traffic over it. I`ve tried to access internal devices after connecting with IPsec vpn but it seems like its blocked. Traffic is showing as allowed in logs. Can someone help me in figuring out what I'm missing here.

This thread was automatically locked due to age.

emmosophos · Accepted Answer

Hello Arslan,
 Thank you for contacting the Sophos Community!
 It seems like the subnet you&rsquo;re trying to access from the IPSec tunnel is overlapping with the network you are using for the IPSec clients. So the return traffic isn&rsquo;t being sent out the IPsec.

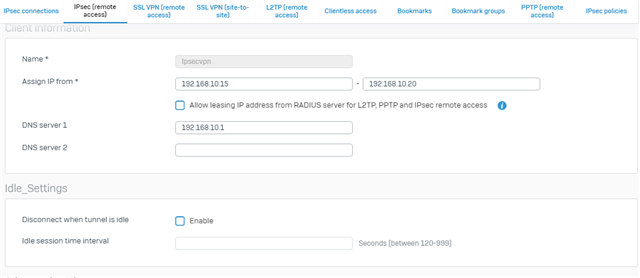

 Try changing the "Assign IP from" to a different subnet than your internal resources.
 Regards,
