Hello,
When i reboot the XG for an firmware update or something else, the wan port comes up. But 10 minutes later the gateway with vlan is coming up.
Capturing data gives the following output:
Port2.300, OUT: IP 0.0.0.0.68 > 255.255.255.255.67: BOOTP/DHCP, Request from MACID, length 280
Port2.300, OUT: IP 0.0.0.0.68 > 255.255.255.255.67: BOOTP/DHCP, Request from MACID, length 280
Port2.300, OUT: IP 0.0.0.0.68 > 255.255.255.255.67: BOOTP/DHCP, Request from MACID, length 280
Port2.300, OUT: ARP, Request who-has 128.0.0.1 tell 169.254.234.5, length 28
Port2.300, OUT: ARP, Request who-has 128.0.0.1 tell 169.254.234.5, length 28
Port2.300, OUT: ARP, Request who-has 128.0.0.1 tell 169.254.234.5, length 28
Port2.300, OUT: ARP, Request who-has 128.0.0.1 tell 169.254.234.5, length 28
Port2.300, OUT: ARP, Request who-has 128.0.0.1 tell 169.254.234.5, length 28
Port2.300, OUT: IP 0.0.0.0.68 > 255.255.255.255.67: BOOTP/DHCP, Request from MACID, length 280
Port2.300, OUT: ARP, Request who-has 128.0.0.1 tell 169.254.234.5, length 28
Port2.300, OUT: ARP, Request who-has 128.0.0.1 tell 169.254.234.5, length 28
Port2.300, OUT: IP 0.0.0.0.68 > 255.255.255.255.67: BOOTP/DHCP, Request from MACID, length 280
Port2.300, OUT: ARP, Request who-has 128.0.0.1 tell 169.254.234.5, length 28
Port2.300, OUT: ARP, Request who-has 128.0.0.1 tell 169.254.234.5, length 28
Port2.300, OUT: IP 0.0.0.0.68 > 255.255.255.255.67: BOOTP/DHCP, Request from MACID, length 280

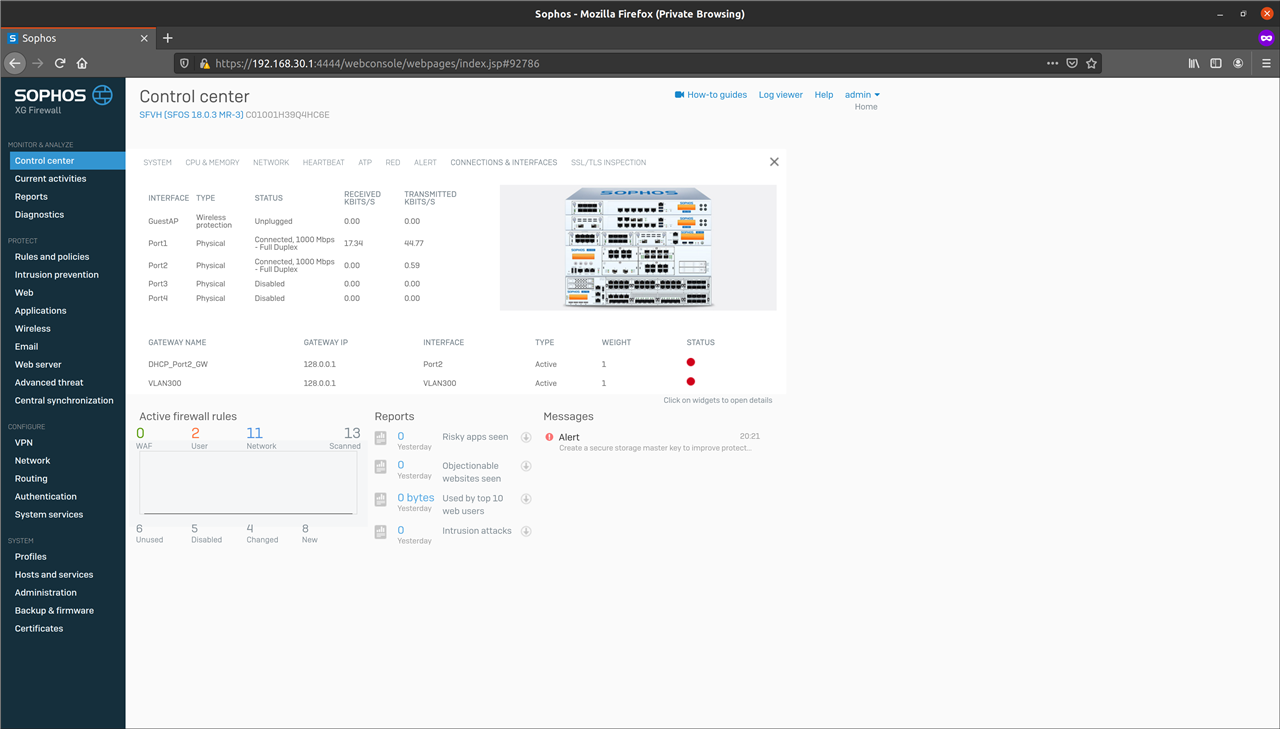

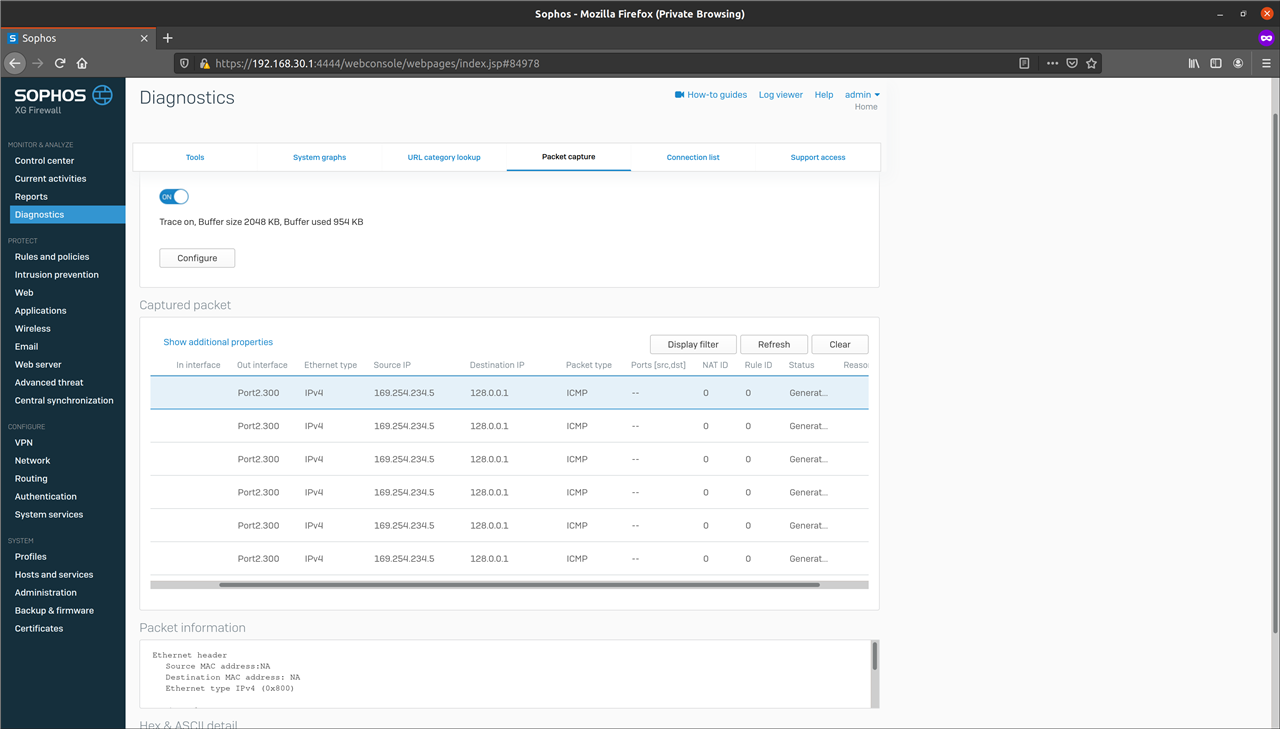

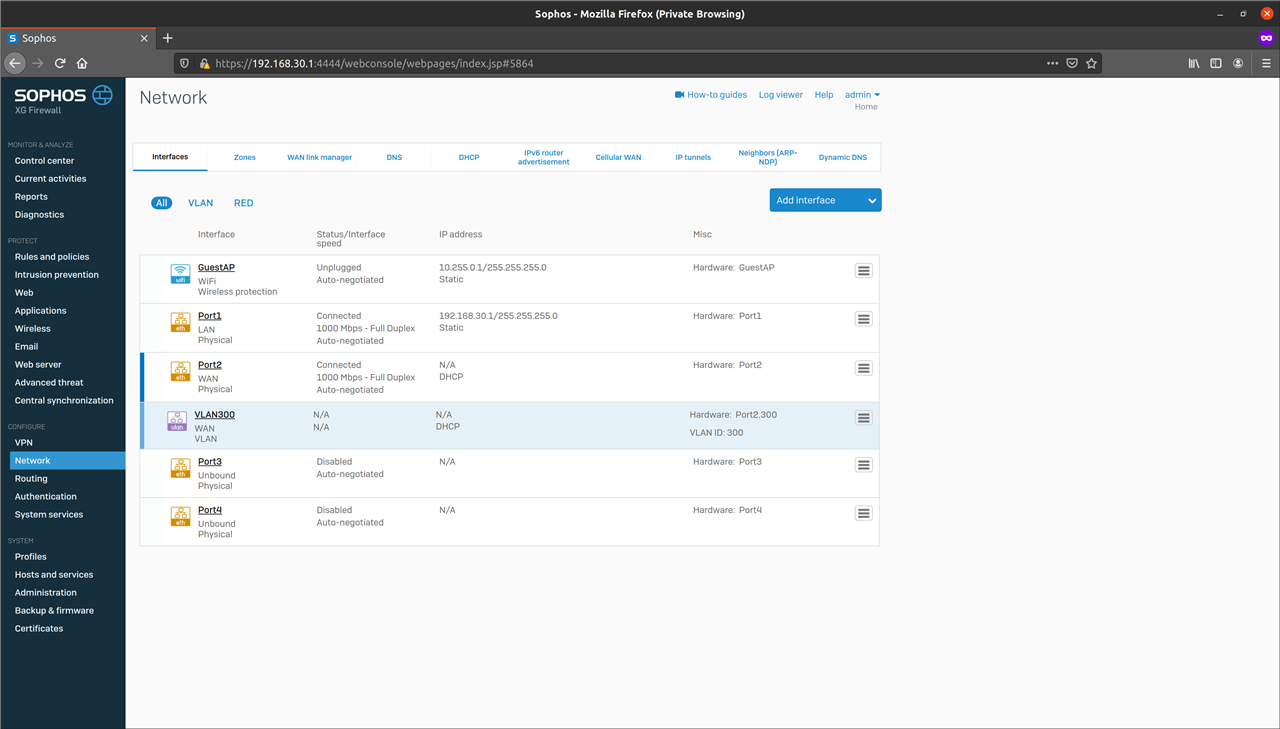

Attached some screenshots.
Connecting other router is directly connected. Before the XG Wan there is an media converter fiber to Ethernet.
Any suggestions?
Update: yesterday 13-10-2020 21:15 appliance started successfully. At 21:20 Interface Port is down. No further logging in the System log.
In the firewall log there is an message at 2:30 about the receiving a wan ip address. After that it took 30 minutes to get the vpn up and running.
