Connecting to RDP of a VM over Clientless access

I'm running a couple of VM on my ESXi that is connected to the network and the Internet over my XG 135w.

The VMs have two network adapters. One is for the Internet (with DHCP and is set to Range 10.27.27.xxx) and one should be for the RDP connection for clientless access. The IP address of this adapter is static and set to Range 192.168.210.xxx.

The problem is, when I want to connect to the RDP with clientless access, a popup comes at the "Starting new session" part saying "Unable to connect to host".

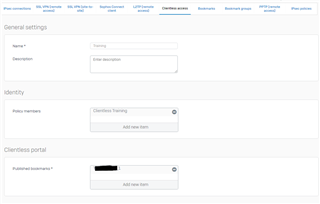

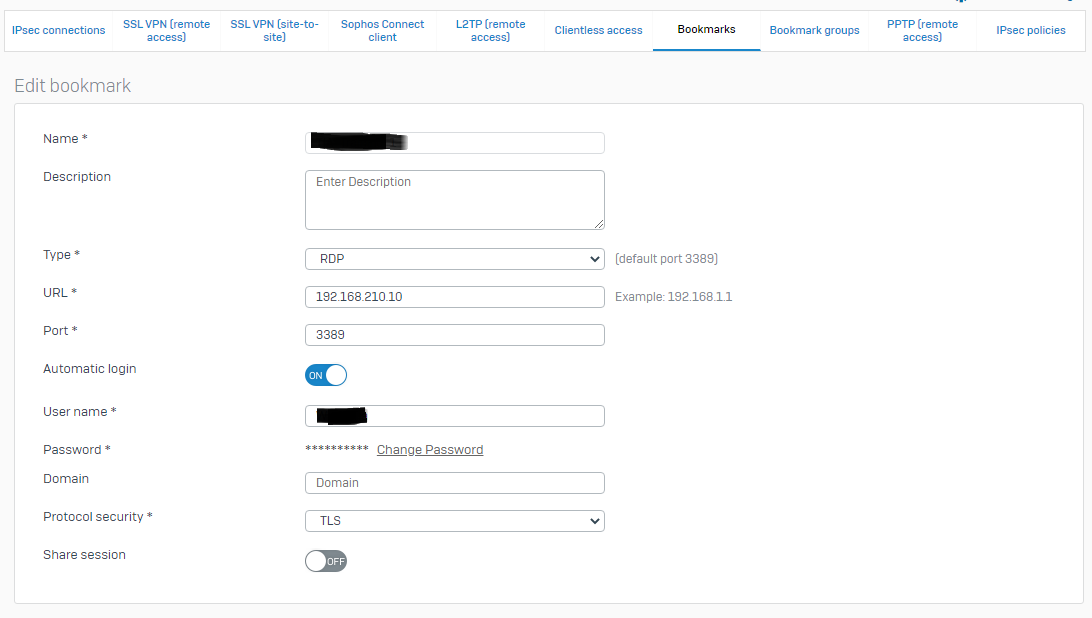

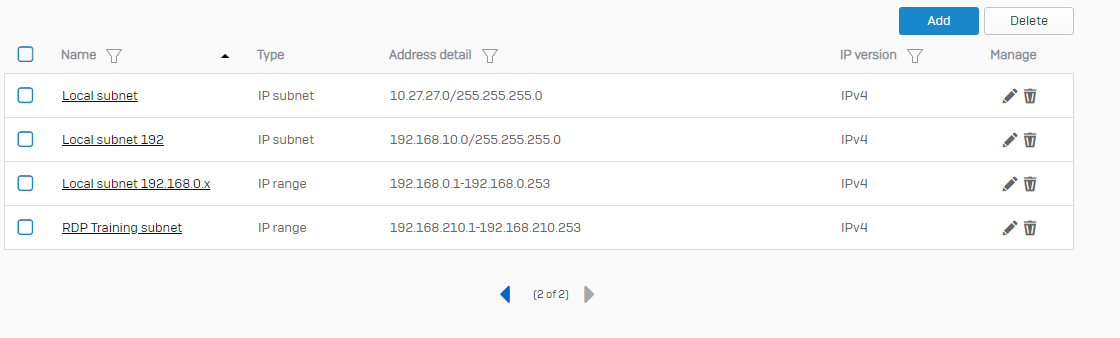

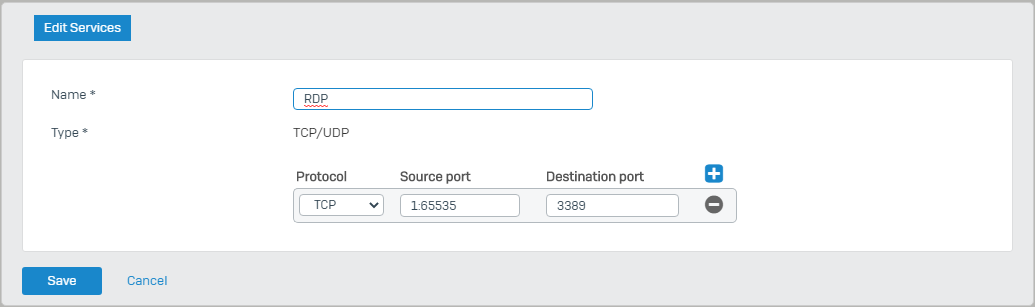

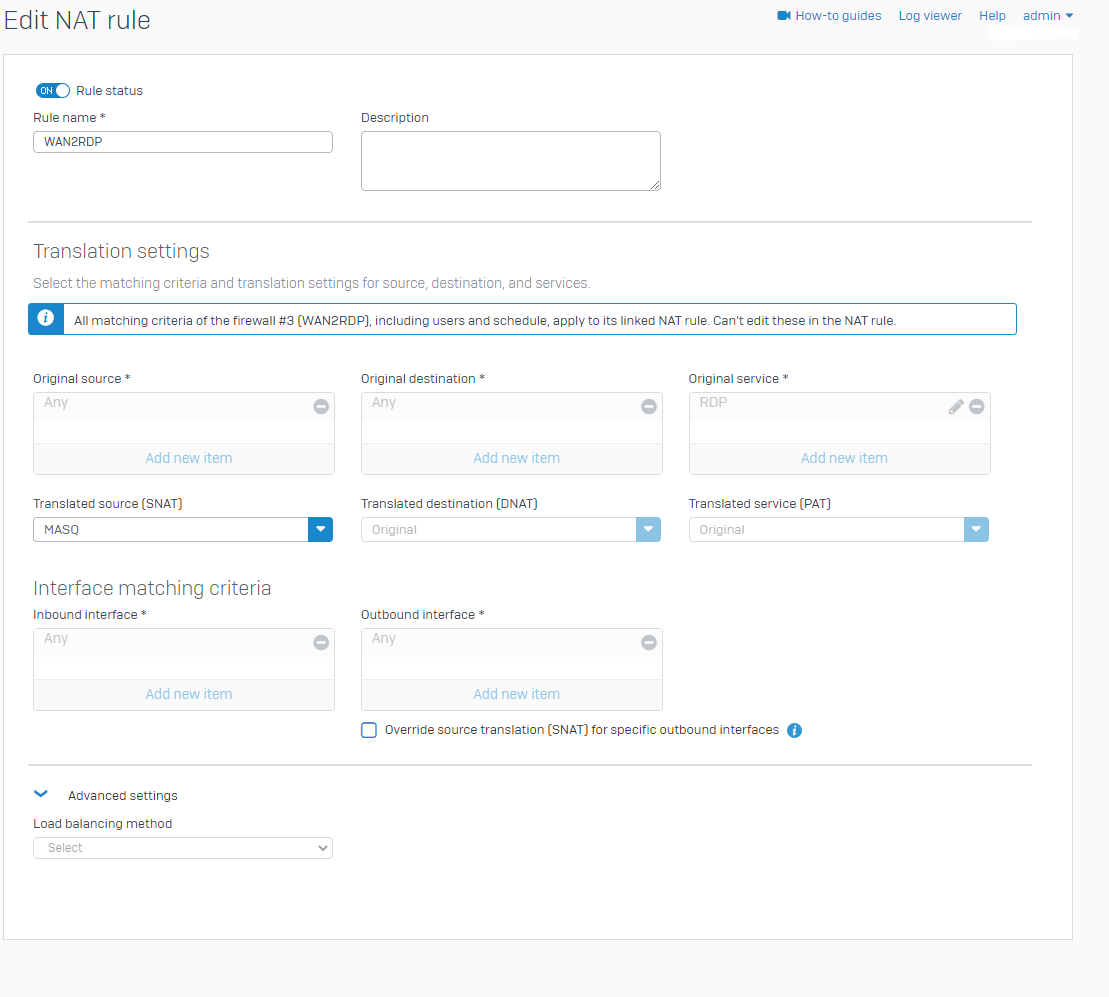

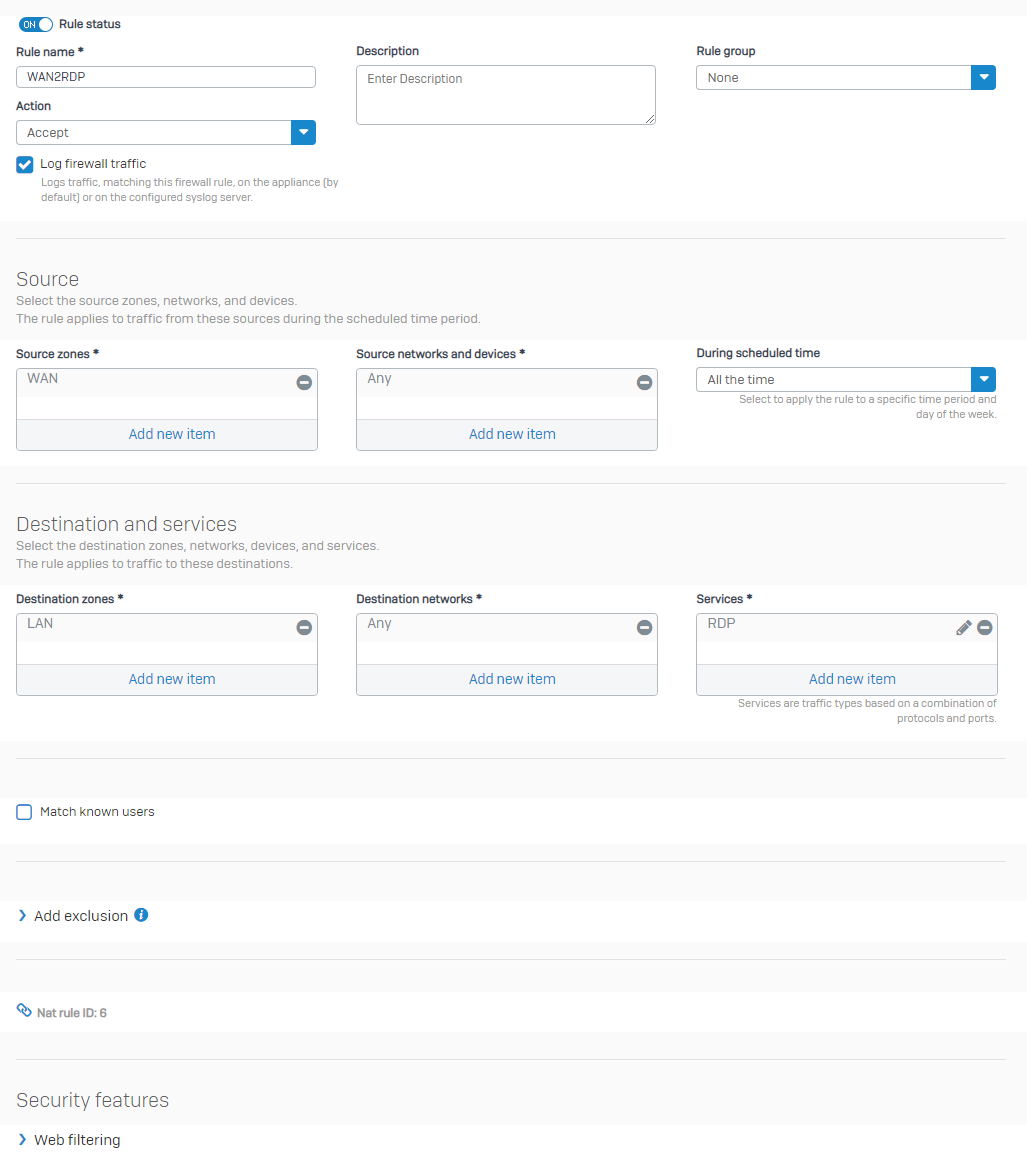

I've set the rules as shown on the pictures:

The 3389 port is forwarded in the router.

The thing is, if I set the IP address of the Bookmark to the address if the DHCP adapter in the VM, everythign works fine, I can loggin with the clientless access.

What am I missing?

This thread was automatically locked due to age.

0 FormerMember over 5 years ago

Hi Shteki

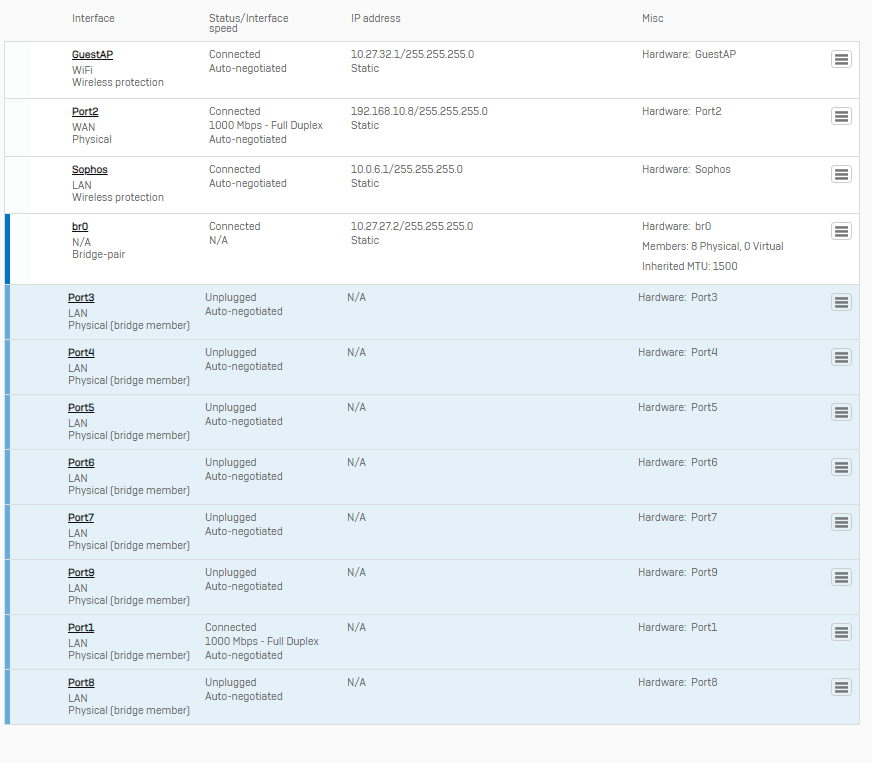

Did you configure both networks on the firewall? Could you please provide the output of "ifconfig" command or a screenshot of the network interfaces from the firewall?

Thanks,
Cancel
Vote Up 0 Vote Down

Cancel
0 Shteki over 5 years ago in reply to FormerMember

Dear H_Patel,

thank you for the reply. I tried configuring them by adding the 192.. network address to a phisical port Port4 and then trying to bridge the Port with the LAN Port, but it only lets me to bridge it with Port2 (WAN), not with br0 (LAN).

What would be the best way for this?
Cancel
Vote Up 0 Vote Down

Cancel
0 Shteki over 4 years ago in reply to FormerMember

Any new recommendations here?
Cancel
Vote Up 0 Vote Down

Cancel
0 FormerMember over 4 years ago in reply to Shteki

Hi Shteki,

I would suggest you check the packet flow with the traceroute command and packet capture. Check if there are any packet loops within your VMs.

Thanks,
