Hi,
i'm new at Sophos XG and i'm not able to get Inter-Vlan routing working. I've read through the threads in this forum and tried all - but with no success...
Using SFOS 18.0.2 MR-2 on NRG Systems IPU662 System.

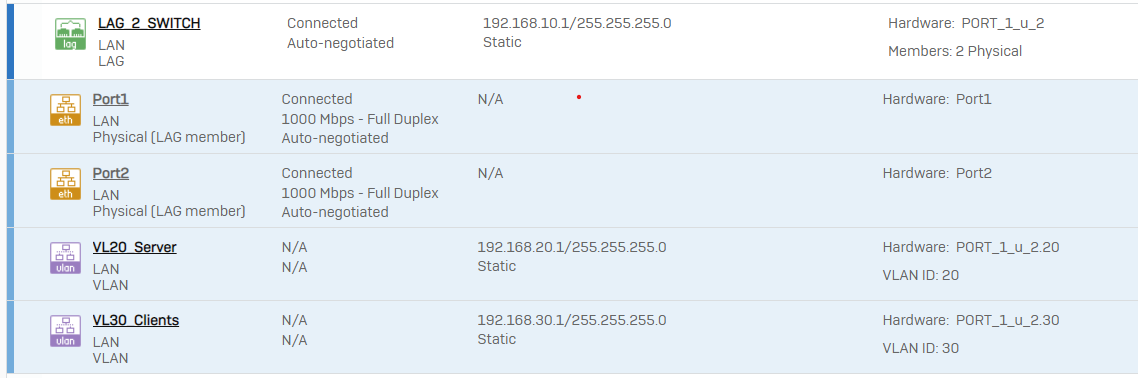

Network Interface looks like:

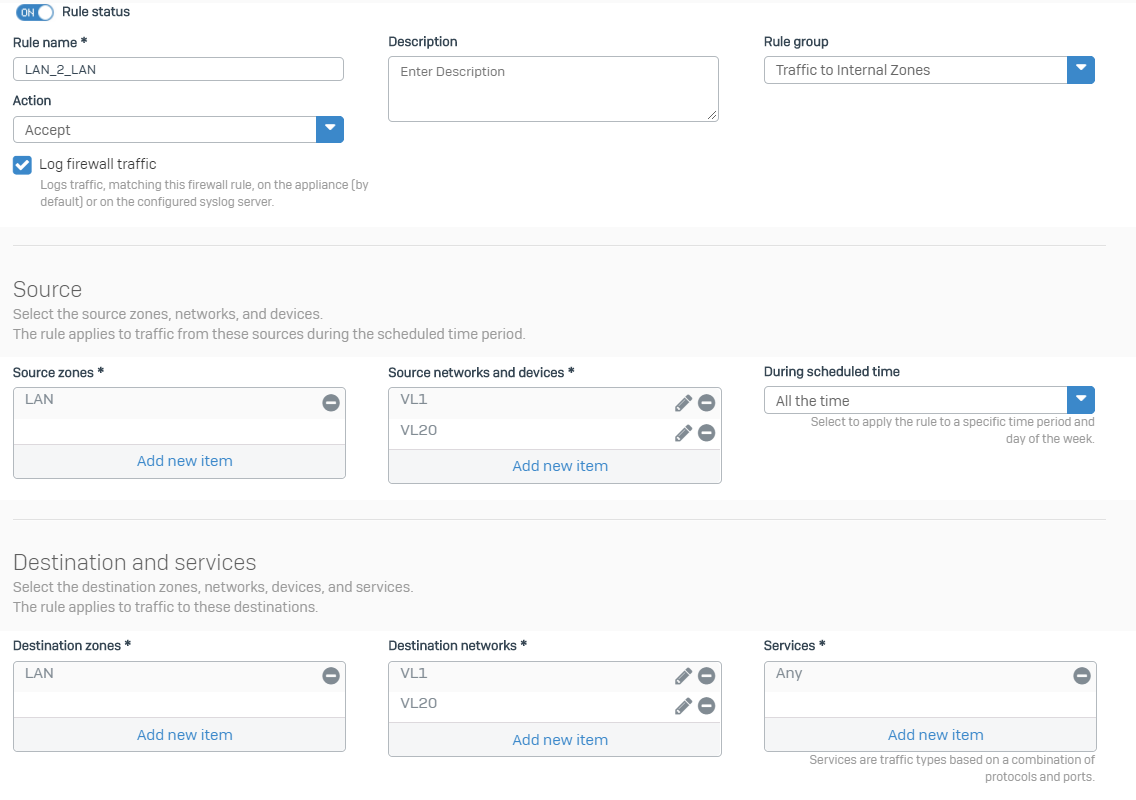

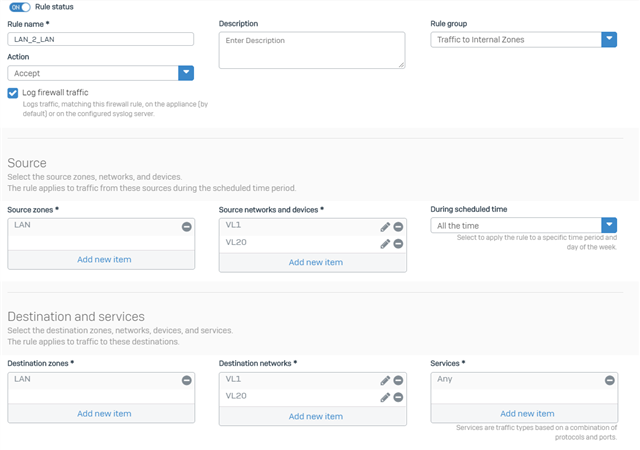

I made a LAN_2_LAN Rule:
- 2 network objects: 192.168.10.0 (named it VL1) and 192.168.20.0 (named it VL20) both as destination and source with service any in Zone LAN.
The rule itself seems to work (the source / dest. IP adresses from the end devices are others, but its from default VLAN (1) to VLAN 20.

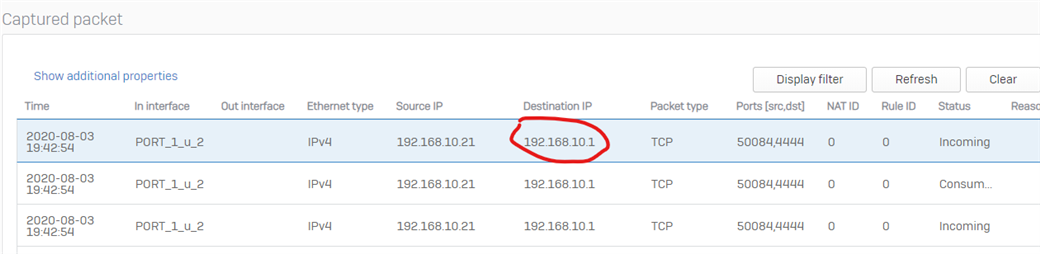

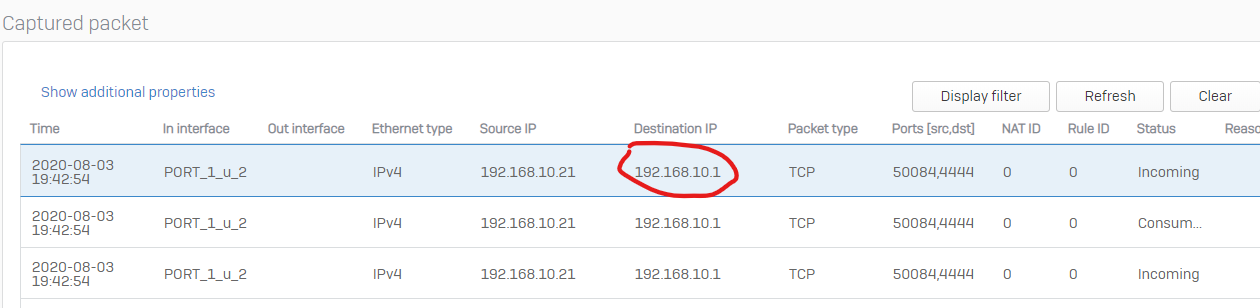

I think it stucks here:
I tried all possible ping variants - and i think problem is vlan routing on Sophos XG -->
==========================================
Sophos:
==========================================
From interface: default LAN (LACP) - .10.1
==========================================
ping works to:
Sophos default: .10.1
PC in VL1: .10.100
doesn't work to:
Sophos VLAN 20: .20.1
Switch: .10.254
Laptop in VL20: .20.100
==========================================
Interface: VLAN 20 - .20.1
==========================================
ping works to:
Sophos VLAN 20: .20.1
Laptop in VL20: .20.100
doesn't work to:
Sophos default: .10.1
Switch: .10.254
PC in VL1: .10.100
==========================================
PC: .10.100
==========================================
ping works to:
Sophos default: .10.1
Sophos VLAN 20: .20.1
doesn't work to:
Laptop in VL20: .20.100
Switch: .10.254
==========================================
Laptop: .20.100
==========================================
ping works to:
Sophos VLAN 20: .20.1
Sophos default: .10.1
doesn't work:
PC in VL1: .10.100
Switch: .10.254
==========================================
Switch: .10.254
==========================================
ping works to:
Sophos default: .10.1
Sophos VLAN 20: .20.1
PC in VL1: .10.100
doesn't work to:
Laptop in VL20: .20.100
==========================================
- Sophos as DHCP server is working - clients getting the right IP address
- PC and Laptop in Same VLAN (e.g. VL20) can ping together
Any help and suggestions are welcome!
Thank you,
Helmut
