Use Alias IP for LAN Network

Hi WaqqasToor

Thank you for reaching out to the Community!

You have to create a SNAT rule for your PortE4 network.

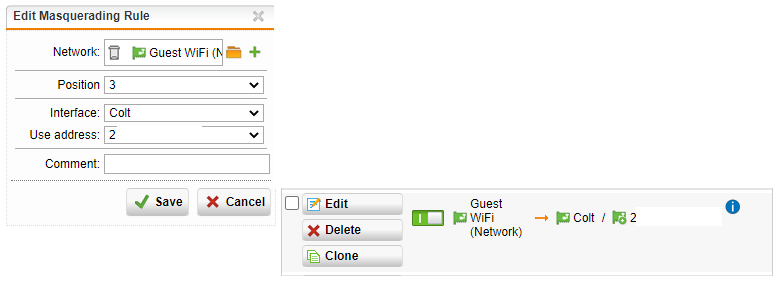

Navigate to Rule and policies > NAT > Add NAT rule > add PortE4 network as Original Source > Under Translated source (SNAT) add alias IP.

Check out the following video for more detail: Sophos XG Firewall (v18): NAT Enhancements.

Thanks,

Hi H_Patel

I tried you solution using PortE4 as  Original Source. It didn't work. However I than tried using the IP Range from that network and with that it worked.

Thanks

Hi WaqqasToor

Thank you for the update. Please review my first response where I suggested you add PortE4 network.

 Thanks,
