Sophos XG 106w - 18.0.1 MR-1-Build396 - VPN Traffic Shaping does not work properly

First of all I would like to apologize for my bad English.

I am currently testing the traffic shaping of my Sophos XG Firewall and unfortunately I have to realize that the traffic shaping only works in one direction. Is it possible that it still has bugs?

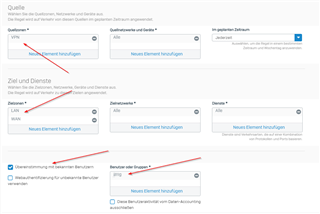

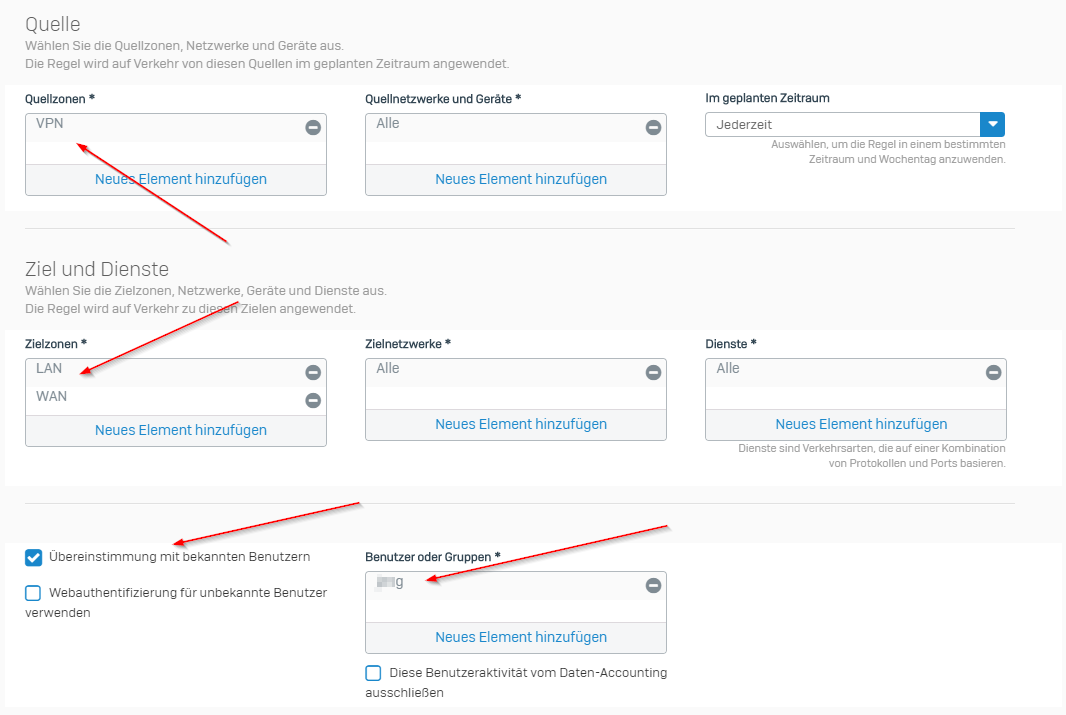

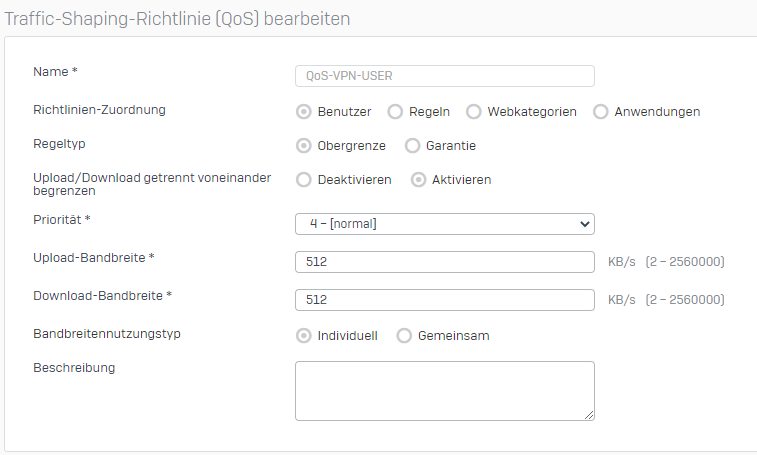

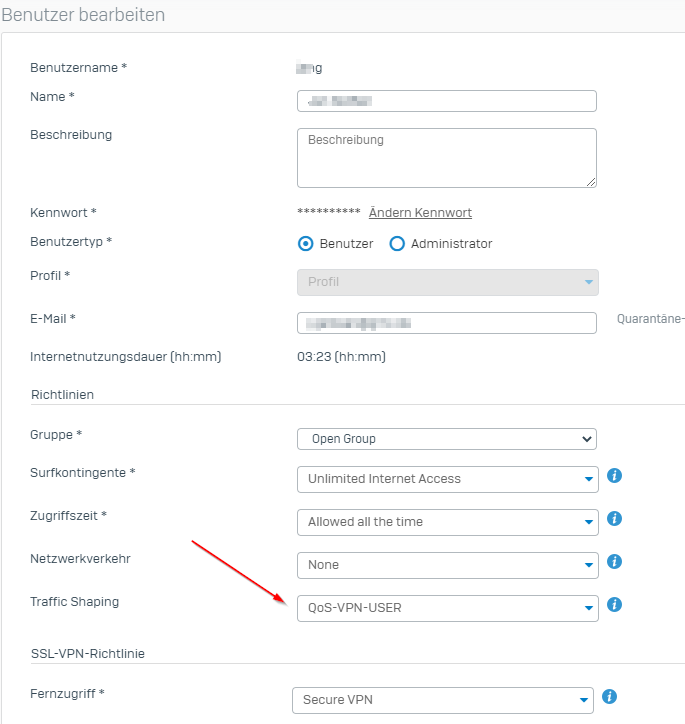

Here is my configuration:

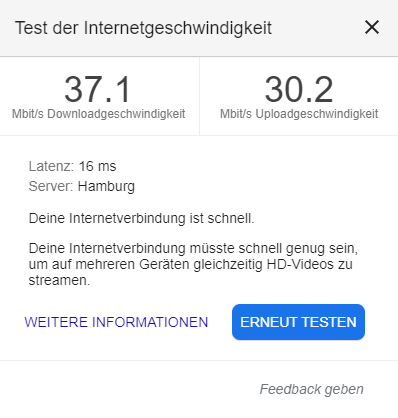

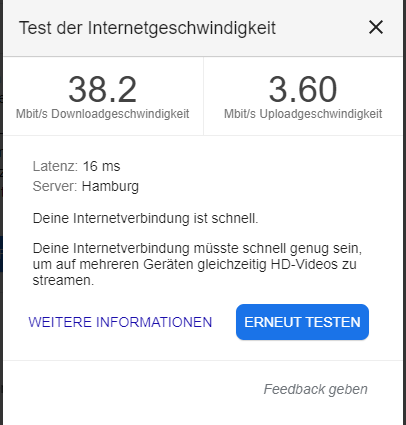

If I do a speed test now, the Traffic Shaping only works during upload.

If I deactivate the Traffic Shaping then both values are about the same. This means that the Traffic Shaping still has a bug?

I have already restarted the firewall.
I have already created a new Traffic Shaping policy.
I have already disabled user authentication -> same bug on rule.

This thread was automatically locked due to age.

Parents

0 Peter Lustig1 over 5 years ago

Added:
I have a 100 mbit internet connection.

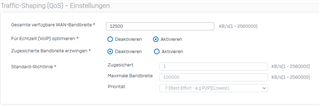

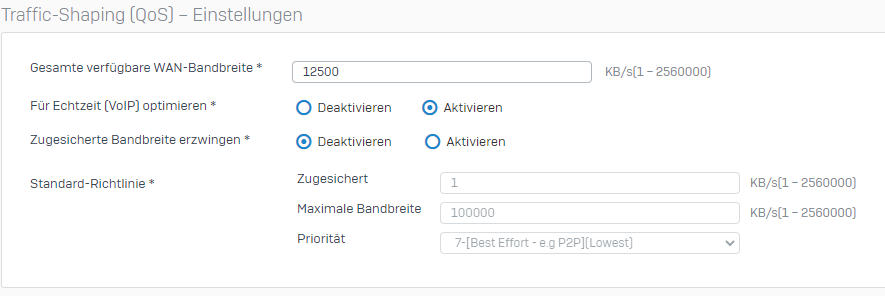

And these settings:
Cancel
Vote Up 0 Vote Down

Cancel
0 LuCar Toni over 5 years ago in reply to Peter Lustig1

Speedtest are usually hard to compare.

Because Speedtests are build to workaround QoS techniques.

If you use a download, does it work? For example download this: http://ipv4.download.thinkbroadband.com/1GB.zip
Cancel
Vote Up 0 Vote Down

Cancel
0 Peter Lustig1 over 5 years ago in reply to LuCar Toni

LuCar Toni said:

Speedtest are usually hard to compare.

Because Speedtests are build to workaround QoS techniques.

If you use a download, does it work? For example download this: http://ipv4.download.thinkbroadband.com/1GB.zip

Hello, LuCar Toni,

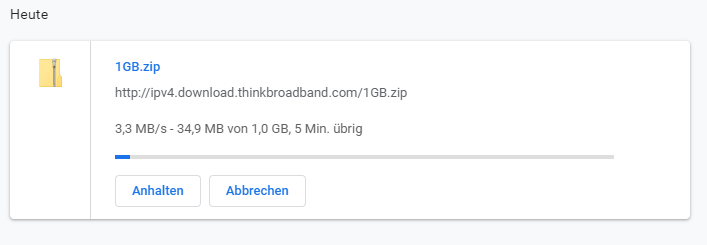

i have also tried Traffic Shaping with a download. Same mistake. For illustration I have shown the speedtest.

3.5 MB/s is my entire DSL upload.
Cancel
Vote Up 0 Vote Down

Cancel

Reply

0 Peter Lustig1 over 5 years ago in reply to LuCar Toni

LuCar Toni said:

Speedtest are usually hard to compare.

Because Speedtests are build to workaround QoS techniques.

If you use a download, does it work? For example download this: http://ipv4.download.thinkbroadband.com/1GB.zip

Hello, LuCar Toni,
i have also tried Traffic Shaping with a download. Same mistake. For illustration I have shown the speedtest.

3.5 MB/s is my entire DSL upload.
