SSL VPN problem: no access to internal network

Udo Eber

I have set up SFOS 18.0.1 MR-1 Build 396 and want to connect remotely with a client to internal network via OpenVPN. Internet Router is an AVM Fritz!Box and XG Firewall uses AVM Fritz!Box as gateway. The OpenVPN Windows 10 client connects with XG Firewall and can ping to both network interface addresses of the XG Firewall but nothing else. No other IP addresses within local network or any network services.

 The connection log in the OpenVPN client software shows at the end that a route is set from VPN Pool SSL network 192.168.11.0/25 with gateway 192.168.11.1 to internal network 192.168.9.0/24:

Mon Jul 13 13:51:31 2020 C:\WINDOWS\system32\route.exe ADD 192.168.9.0 MASK 255.255.255.0 192.168.11.1
Mon Jul 13 13:51:31 2020 Route addition via service succeeded

I assume that additional firewall rules and NAT rules have to be added?

I set up the SSL VPN connection according to the knowledge base article 122769. I also checked other forum posts and videos regarding SSL VPN client connections.

Any help is greatly appreciated to gain access to internal network from VPN Pool (SSL) network!

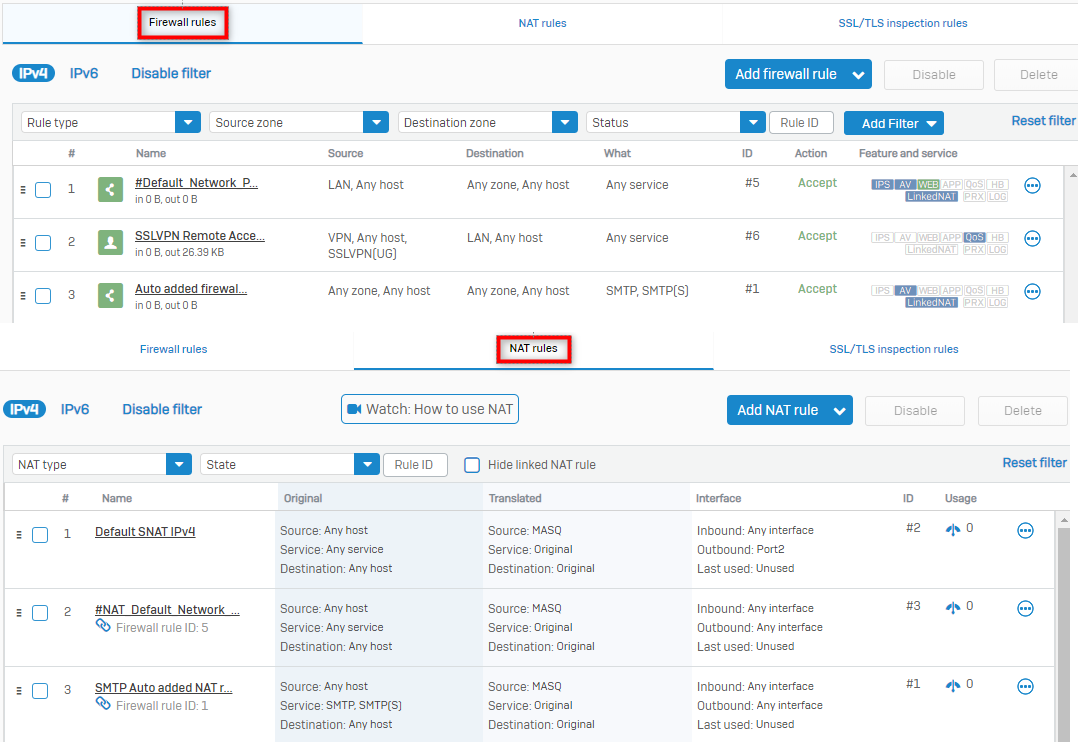

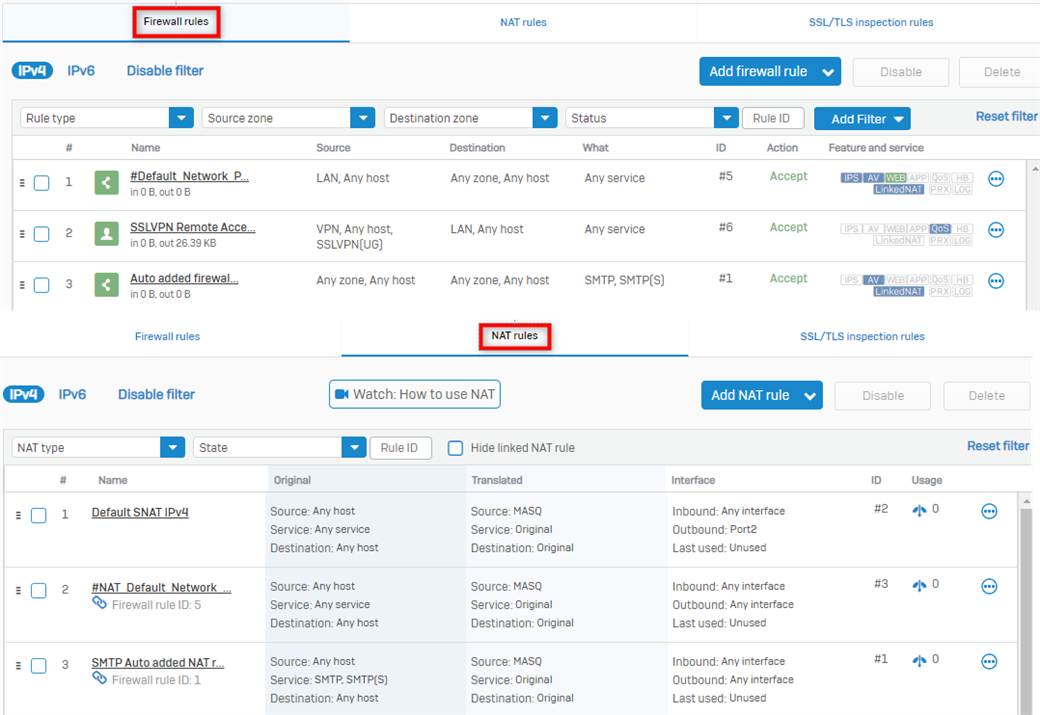

Firewall and NAT rules



VPN Connection Log

Mon Jul 13 13:51:23 2020 OpenVPN 2.4.9 x86_64-w64-mingw32 [SSL (OpenSSL)] [LZO] [LZ4] [PKCS11] [AEAD] built on Apr 16 2020
Mon Jul 13 13:51:23 2020 Windows version 6.2 (Windows 8 or greater) 64bit
Mon Jul 13 13:51:23 2020 library versions: OpenSSL 1.1.1f 31 Mar 2020, LZO 2.10
Mon Jul 13 13:51:23 2020 MANAGEMENT: TCP Socket listening on [AF_INET]127.0.0.1:25341
Mon Jul 13 13:51:23 2020 Need hold release from management interface, waiting...
Mon Jul 13 13:51:23 2020 MANAGEMENT: Client connected from [AF_INET]127.0.0.1:25341
Mon Jul 13 13:51:23 2020 MANAGEMENT: CMD 'state on'
Mon Jul 13 13:51:23 2020 MANAGEMENT: CMD 'log all on'
Mon Jul 13 13:51:23 2020 MANAGEMENT: CMD 'echo all on'
Mon Jul 13 13:51:23 2020 MANAGEMENT: CMD 'bytecount 5'
Mon Jul 13 13:51:23 2020 MANAGEMENT: CMD 'hold off'
Mon Jul 13 13:51:23 2020 MANAGEMENT: CMD 'hold release'
Mon Jul 13 13:51:23 2020 MANAGEMENT: >STATE:1594641083,RESOLVE,,,,,,
Mon Jul 13 13:51:24 2020 TCP/UDP: Preserving recently used remote address: [AF_INET][public ip address]:8443
Mon Jul 13 13:51:24 2020 Socket Buffers: R=[65536->65536] S=[65536->65536]
Mon Jul 13 13:51:24 2020 UDP link local: (not bound)
Mon Jul 13 13:51:24 2020 UDP link remote: [AF_INET][public ip address]:8443
Mon Jul 13 13:51:24 2020 MANAGEMENT: >STATE:1594641084,WAIT,,,,,,
Mon Jul 13 13:51:24 2020 MANAGEMENT: >STATE:1594641084,AUTH,,,,,,
Mon Jul 13 13:51:24 2020 TLS: Initial packet from [AF_INET][public ip address]:8443, sid=11c03903 e58558d8
Mon Jul 13 13:51:24 2020 VERIFY OK: depth=1, C=DE, ST=[state], L=[city], O=[company], OU=OU, CN=Sophos_CA_C01001YMMGFPQ0C, emailAddress=[email]
Mon Jul 13 13:51:24 2020 VERIFY X509NAME OK: C=DE, ST=[state], L=[city], O=[company], OU=OU, CN=SophosApplianceCertificate_C01001YMMGFPQ0C, emailAddress=[email]
Mon Jul 13 13:51:24 2020 VERIFY OK: depth=0, C=DE, ST=[state], L=[city], O=[company], OU=OU, CN=SophosApplianceCertificate_C01001YMMGFPQ0C, emailAddress=[email]
Mon Jul 13 13:51:25 2020 Control Channel: TLSv1, cipher SSLv3 DHE-RSA-AES256-SHA, 2048 bit RSA
Mon Jul 13 13:51:25 2020 [SophosApplianceCertificate_C01001YMMGFPQ0C] Peer Connection Initiated with [AF_INET][public ip address]:8443
Mon Jul 13 13:51:26 2020 MANAGEMENT: >STATE:1594641086,GET_CONFIG,,,,,,
Mon Jul 13 13:51:26 2020 SENT CONTROL [SophosApplianceCertificate_C01001YMMGFPQ0C]: 'PUSH_REQUEST' (status=1)
Mon Jul 13 13:51:27 2020 PUSH: Received control message: 'PUSH_REPLY,route-gateway 192.168.11.1,ping 45,ping-restart 180,route 192.168.9.0 255.255.255.0,route 192.168.11.0 255.255.255.128,topology subnet,route remote_host 255.255.255.255 net_gateway,inactive 900 7680,dhcp-option DNS 192.168.9.2,dhcp-option DOMAIN [domain],ifconfig 192.168.11.2 255.255.255.128'
Mon Jul 13 13:51:27 2020 OPTIONS IMPORT: timers and/or timeouts modified
Mon Jul 13 13:51:27 2020 OPTIONS IMPORT: --ifconfig/up options modified
Mon Jul 13 13:51:27 2020 OPTIONS IMPORT: route options modified
Mon Jul 13 13:51:27 2020 OPTIONS IMPORT: route-related options modified
Mon Jul 13 13:51:27 2020 OPTIONS IMPORT: --ip-win32 and/or --dhcp-option options modified
Mon Jul 13 13:51:27 2020 Outgoing Data Channel: Cipher 'AES-256-CBC' initialized with 256 bit key
Mon Jul 13 13:51:27 2020 Outgoing Data Channel: Using 512 bit message hash 'SHA512' for HMAC authentication
Mon Jul 13 13:51:27 2020 Incoming Data Channel: Cipher 'AES-256-CBC' initialized with 256 bit key
Mon Jul 13 13:51:27 2020 Incoming Data Channel: Using 512 bit message hash 'SHA512' for HMAC authentication
Mon Jul 13 13:51:27 2020 interactive service msg_channel=608
Mon Jul 13 13:51:27 2020 ROUTE_GATEWAY 192.168.1.1/255.255.255.0 I=17 HWADDR=50:7b:9d:58:72:a3
Mon Jul 13 13:51:27 2020 open_tun
Mon Jul 13 13:51:27 2020 TAP-WIN32 device [OpenVPN] opened: \\.\Global\{F3D0D5AF-3FB6-4A43-AE4B-29A0D4432B11}.tap
Mon Jul 13 13:51:27 2020 TAP-Windows Driver Version 9.24
Mon Jul 13 13:51:27 2020 Set TAP-Windows TUN subnet mode network/local/netmask = 192.168.11.0/192.168.11.2/255.255.255.128 [SUCCEEDED]
Mon Jul 13 13:51:27 2020 Notified TAP-Windows driver to set a DHCP IP/netmask of 192.168.11.2/255.255.255.128 on interface {F3D0D5AF-3FB6-4A43-AE4B-29A0D4432B11} [DHCP-serv: 192.168.11.126, lease-time: 31536000]
Mon Jul 13 13:51:27 2020 Successful ARP Flush on interface [21] {F3D0D5AF-3FB6-4A43-AE4B-29A0D4432B11}
Mon Jul 13 13:51:27 2020 MANAGEMENT: >STATE:1594641087,ASSIGN_IP,,192.168.11.2,,,,
Mon Jul 13 13:51:31 2020 TEST ROUTES: 4/4 succeeded len=4 ret=1 a=0 u/d=up
Mon Jul 13 13:51:31 2020 MANAGEMENT: >STATE:1594641091,ADD_ROUTES,,,,,,
Mon Jul 13 13:51:31 2020 C:\WINDOWS\system32\route.exe ADD [public ip address] MASK 255.255.255.255 192.168.1.1
Mon Jul 13 13:51:31 2020 Route addition via service succeeded
Mon Jul 13 13:51:31 2020 C:\WINDOWS\system32\route.exe ADD 192.168.9.0 MASK 255.255.255.0 192.168.11.1
Mon Jul 13 13:51:31 2020 Route addition via service succeeded
Mon Jul 13 13:51:31 2020 C:\WINDOWS\system32\route.exe ADD 192.168.11.0 MASK 255.255.255.128 192.168.11.1
Mon Jul 13 13:51:31 2020 Route addition via service succeeded
Mon Jul 13 13:51:31 2020 C:\WINDOWS\system32\route.exe ADD [public ip address] MASK 255.255.255.255 192.168.1.1
Mon Jul 13 13:51:31 2020 ROUTE: route addition failed using service: The object already exists. [status=5010 if_index=17]
Mon Jul 13 13:51:31 2020 Route addition via service failed
Mon Jul 13 13:51:31 2020 Initialization Sequence Completed
Mon Jul 13 13:51:31 2020 MANAGEMENT: >STATE:1594641091,CONNECTED,SUCCESS,192.168.11.2,[public ip address],8443,,
