Gateway xxx Went Down

I get an email message 2-3 times a day (mostly overnight) to say that my ADSL connection has gone down, usually followed by an email a minute later to say it is back up.

This is my backup gateway connection, and is not causing me any problems by it briefly dropping connection

Is there a way to increase the timeout before a gateway down notification is sent to e.g. 5 mins. This would greatly reduce email traffic, and help to spot when there is genuine issue with the backup gateway.

Thanks for your help in advance.

Model Number	Firmware version
XG210	SFOS 17.5.12 MR-12.HF062020.1

This thread was automatically locked due to age.

Parents

0 Emile Belcourt over 5 years ago

Hello Bill,

I'd modify what your XG is using to do the monitoring under the WAN Link Manager under Network. Edit the backup interface and set somethign stable and public as your testing target, it could be the next hop is a bit fruity with responding to the default pings.

Emile
Cancel
Vote Up 0 Vote Down

Cancel
0 Bill Addison over 5 years ago in reply to Emile Belcourt

Hi Emile,

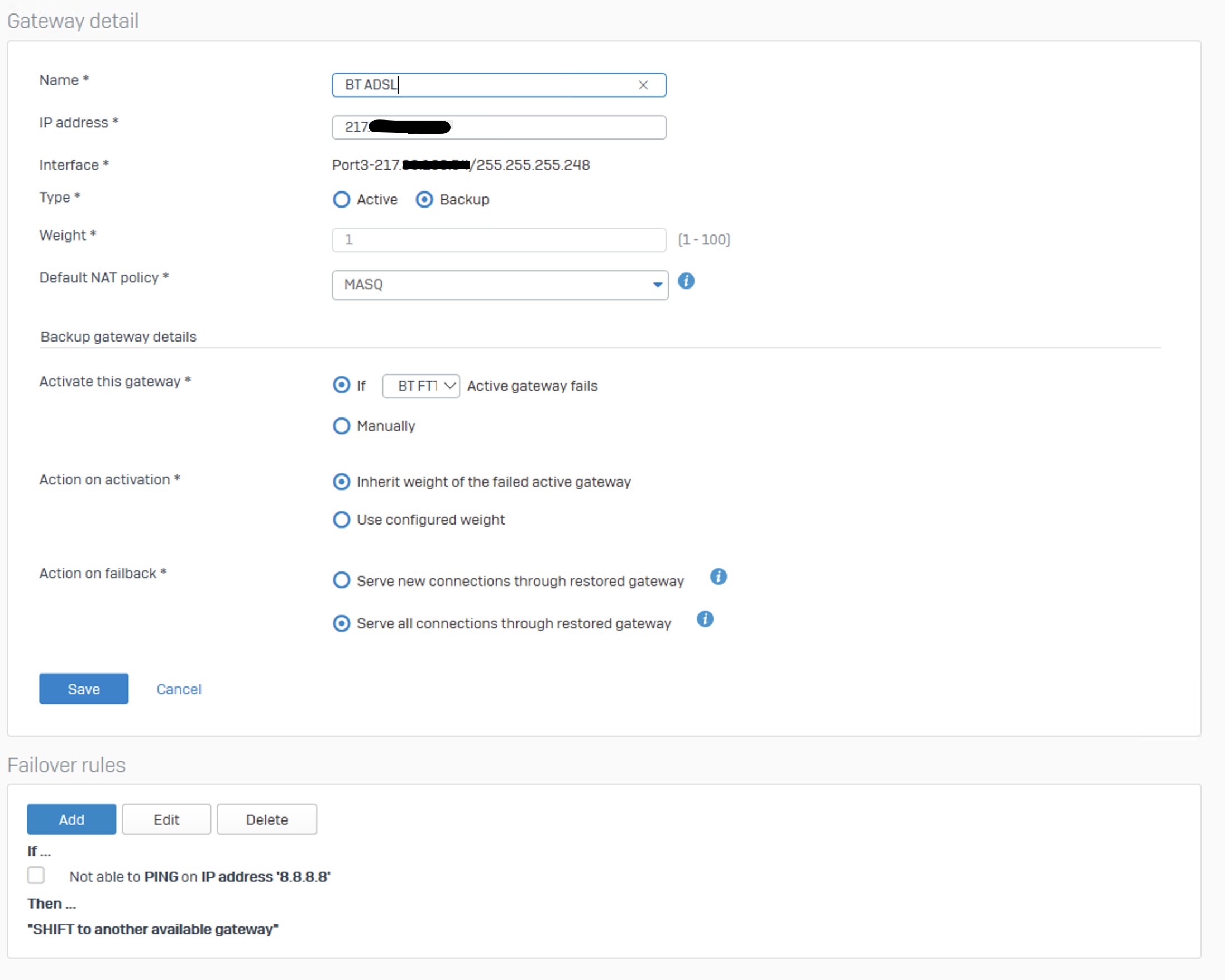

Thanks for your reply, this is what I have set at the moment, what would you suggest instead?

Bill
Cancel
Vote Up 0 Vote Down

Cancel
0 Emile Belcourt over 5 years ago in reply to Bill Addison

Hi Bill,

I'd recommend switching from ping to TCP on port 53 (DNSSEC port) to google. I've noticed Google has a habit of ignoring pings these days but at least with a TCP port 53 request you have the resiliency of it being a legitimate initial request and that it is TCP in case one of the SYN/SYN-ACK/ACK packets are lost :)

Emile
Cancel
Vote Up 0 Vote Down

Cancel

Reply

0 Emile Belcourt over 5 years ago in reply to Bill Addison

Hi Bill,

I'd recommend switching from ping to TCP on port 53 (DNSSEC port) to google. I've noticed Google has a habit of ignoring pings these days but at least with a TCP port 53 request you have the resiliency of it being a legitimate initial request and that it is TCP in case one of the SYN/SYN-ACK/ACK packets are lost :)

Emile
