SSL-VPN connected but no LOCAL RESOURCES

Hi racquel agbayani

Thank you for reaching out to the Community!

I would advise you to check this KB Article: Sophos XG Firewall: How to troubleshoot SSL VPN remote access connectivity and data transfer issues.

Check if you have your local resources/network added to the permitted network under the SSL VPN profile.

Follow the "Verify the permitted network resources" section from the KB Article.

Thanks,

ive followed the steps and still no luck  :(

Have you enabled default gateway for SSL VPN profile?

If not can you check whether routes for your LAN network are added to client machine(from where you are connecting VPN) after connecting VPN.

[ open Command prompt and run command : route print ]

If route is present then in XG firewall, try enabling Rewrite source address as MASQ in VPN_TO_LAN firewall rule.

If above steps does not help then verify whether you are able to PING/reach the local machine from XG firewall or not.

yeah tried  enabled and disabled gateway ssl vpn profile same result.

the MASQ havent tried it before   i cant seem to find this one

pinging the local subnet from port B is successfull

BTW i am using version 18

THANK YOU

For V18, try to create NAT rule with source VPN zone and SSL VPN IP range and destination as you LAN network.

Translated source: MASQ and Translated destination : Original

Ensure that this rule is on top of other NAT rule

BTW sir my sop machine is nat'ed   still doesnt work after masq

Kindly connect the SSL VPN, Initiate PING to and LAN machine IP address and perform the packet capture for that IP address as per below article:

https://community.sophos.com/kb/en-us/123189

here sir,

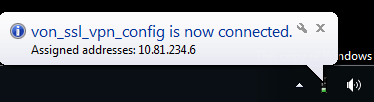

this is from my vpn client

this is from my vpn client
