WAN LOAD BALACING XG 330

Hi,

i get 2 WAN Links from 2 ISP connected to my XG 330

I Want to load balance them, each one get  50% of trafic

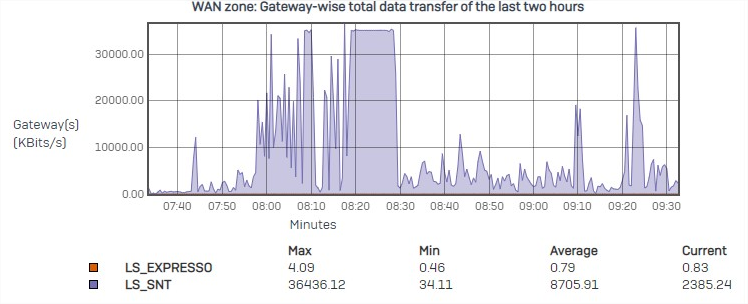

As you can see from this screenshot, only one link (the blue named LS_SNT) is  manage trafic toward internet with 30.000Kbts/s

and the other LS_EXPRESSO just 4.09 Kbts/s

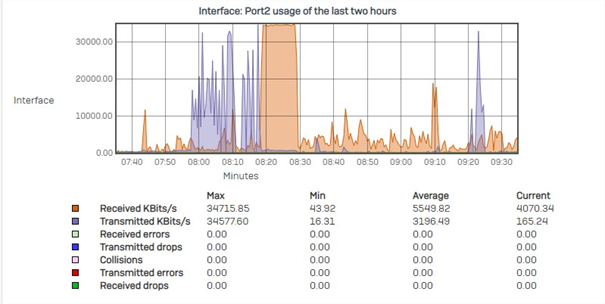

here the port connected to LS_SNT can Transmit to and receive from internet packets

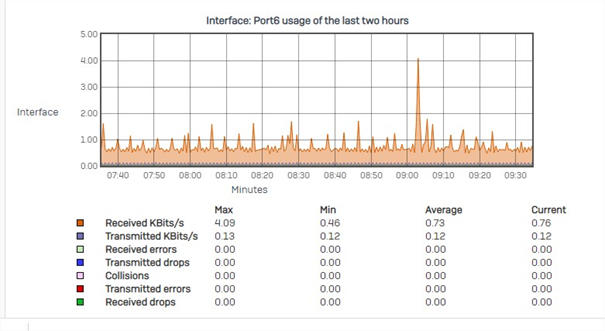

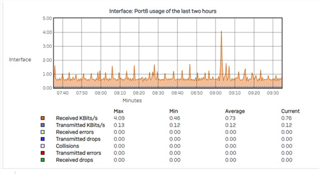

here the port connected to LS_EXPRESSO can not Transmit to and receive from internet packets

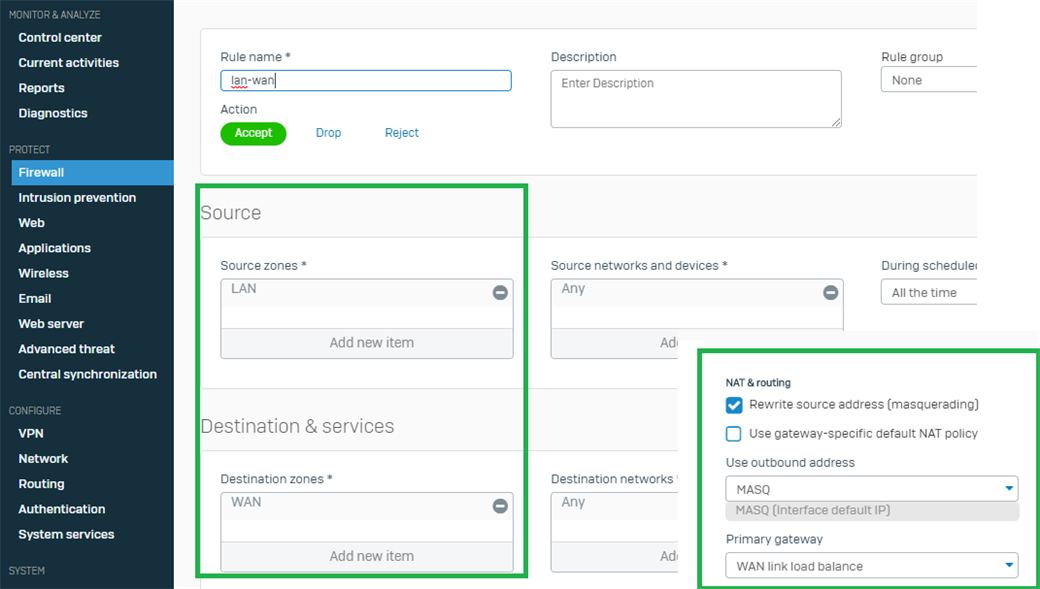

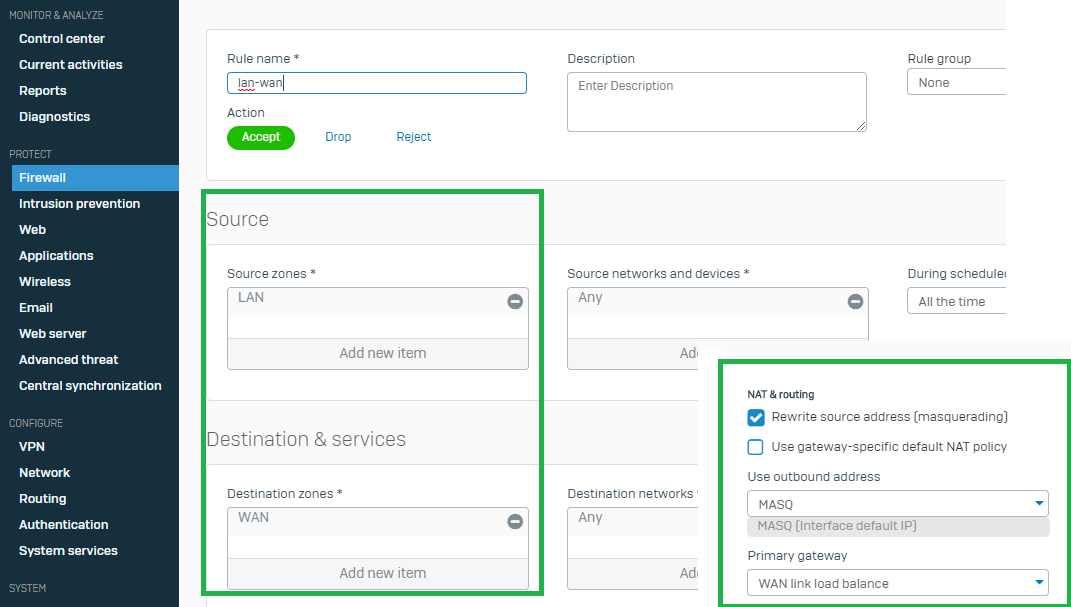

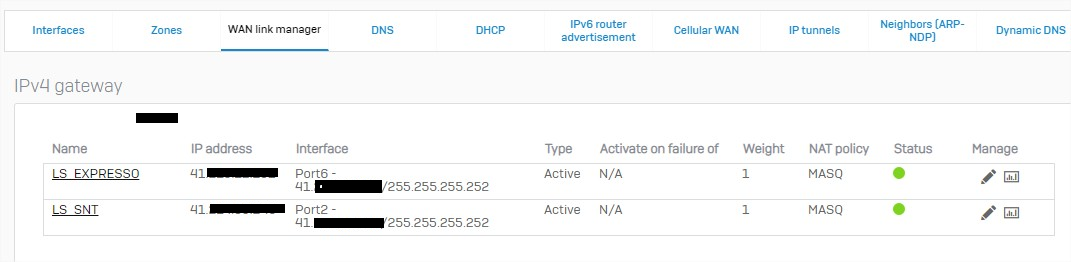

and here the load balacind configuration from WAN link Manager

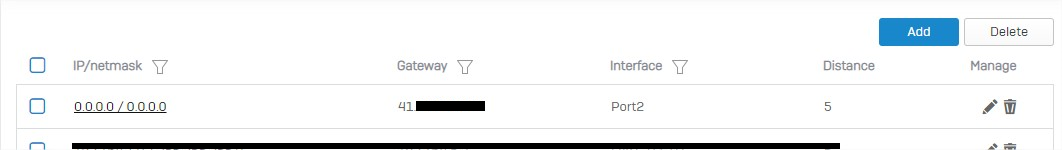

here one route set by another guy before me

according to me this is why i the 2nd link get less trafic

and i should remove this and let weight to 1 for each of them



if someone can help me to give me the correct configuration



NB: that the LS_EXPRESSO throughput is little greater than the LS_SNT
