Simple WAN Rule in V18

Wolfgang Ritter2

Hi

Does someone have a easy way how to use a ANY - WAN rule in version 18.

I have XG135 - RED Bridge which works correctly. I get all IP-addresses from the Windows Server DHCP.

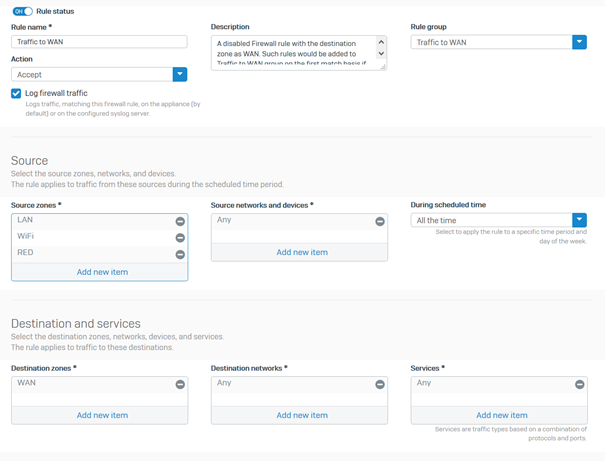

The rule is:

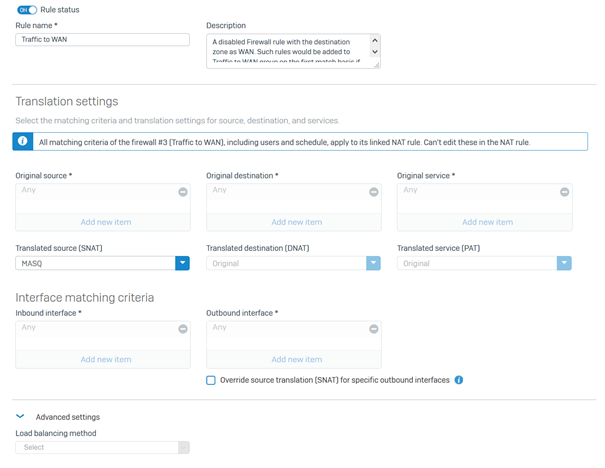

I have also a NAT:

But with this configuration i get no internet connection. What is wrong or missing?

Thanks

Wolfgang



This thread was automatically locked due to age.
  • FormerMember
    +2 FormerMember

    Hi Wolfgang,

    Your firewall and NAT rules look correct.

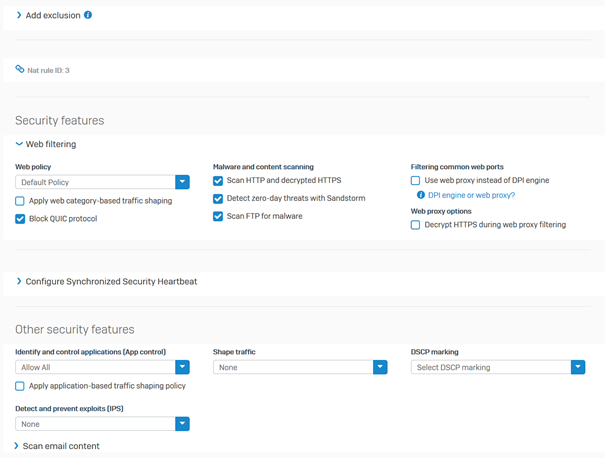

    I would suggest to firstly turn off the Security Features (Web Proxy, IPS, APP control etc) and test if the traffic could go through the correct firewall rule and NAT rule.

    When you have turned off the Security Features, you can check the Log Viewer for the firewall rule and NAT rule number for the testing traffic.

    Example -

  • 0 in reply to FormerMember

    It really helped.

    I had a LAN-RED RED-LAN Rule which blocked the Internet traffic. Found it after your tip.

    Thanks
