Static Routing between 3 networks..

Question

Hi,

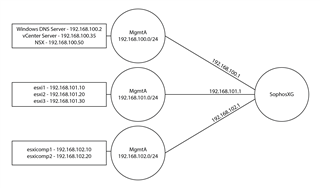

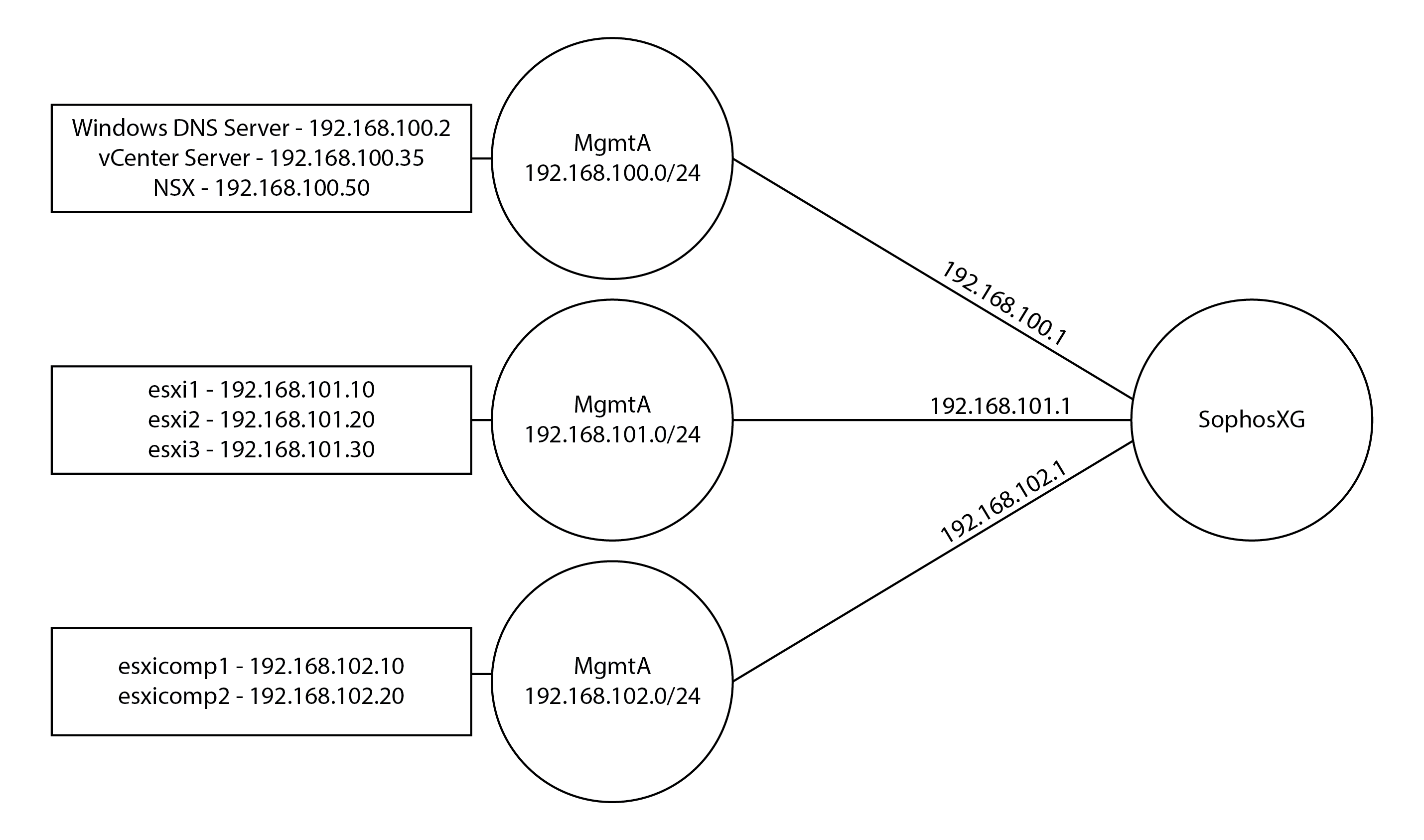

 I have 3 networks
 MgmtA - 192.168.100.0/24
 MgmtB - 192.168.101.0/24
 MgmtC - 192.168.102.0/24

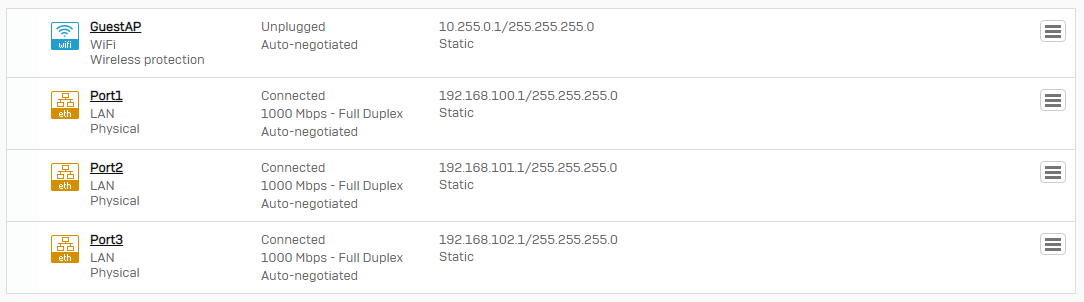

 Port Configuration

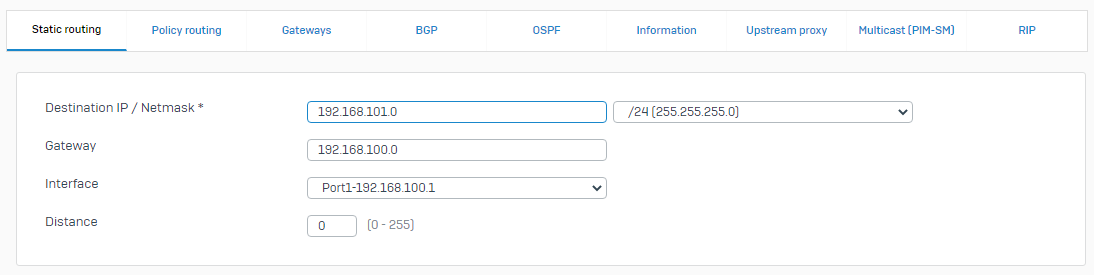

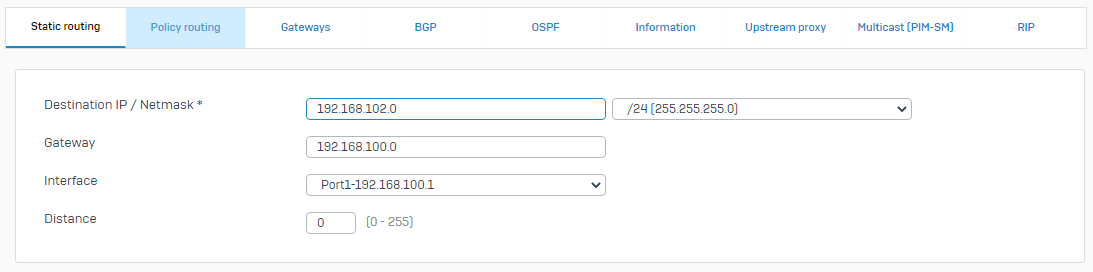

 Have configured Static Routes

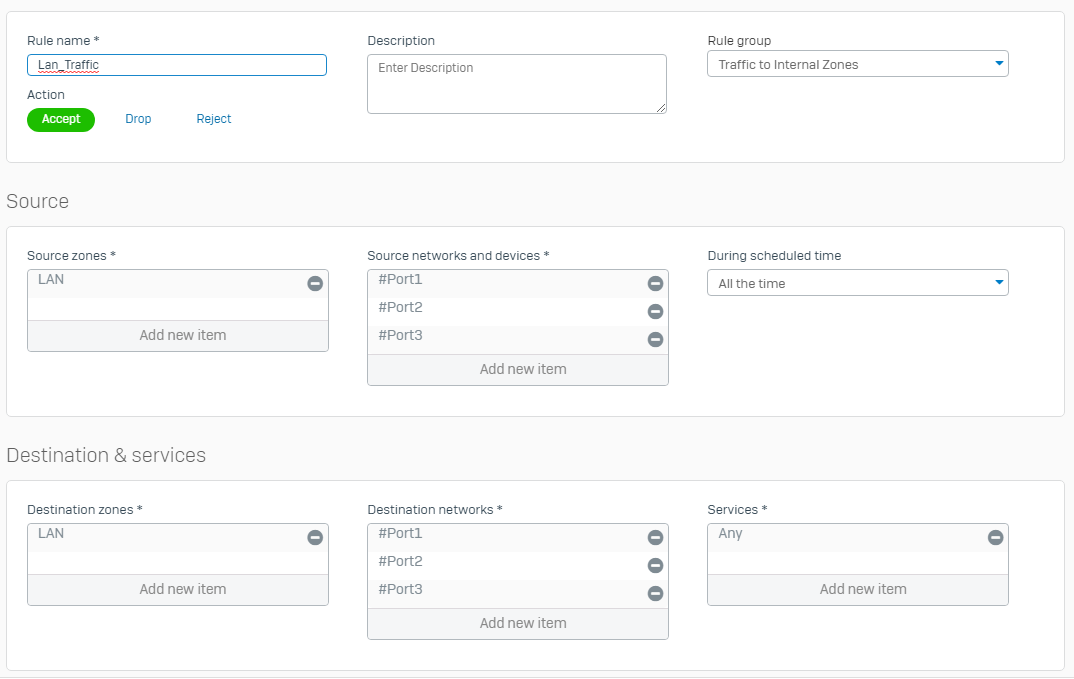

 And have setup firewall policy Lan Traffic

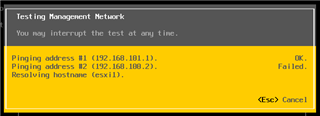

 And can ping from 192.168.100.0/24 to 192.168.101.0/24 but not the other way around.

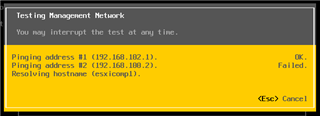

 And cannot ping from 192.168.100.0/24 to 192.168.102.0/24 neither the other way around.

DNS Server in 192.168.100.0/24
 esxi1 in 192.168.101.0/24
 esxicomp1 in 192.168.102.0/24

Any thoughts what I'm missing.
 Thanks.

huud · Accepted Answer

JasP said:
 You don't need static routes for networks that are directly connected to any device doing routing (not just an XG). The router 'knows' where these networks are and will automatically route the traffic.

 Thanks JasP for clarifying what I wasn't aware of, appreciate that.

huud · Answer

I resolved this problem by NOT creating any static route, and instead just creating gateways for each network, and creating LAN Traffic rule.
 All devices can now ping each other.
