How to Make DNS NAT - im trying and all fail :(

Hi Folks

Im trying to do a DNS NAT. In short, Ive got cheap IPCam which doesnt allow to comunicate directly with its own mobile app, it does it via some server.

So ive checked, where Mobile app is making a requests. Ive found that its: 123.56.159.92. Cam is on separeted Vlan droped to go outsite. Lan Ip is 10.0.100.100

So my goal is to make scenerio when if app is trying to request public server then NAT should translate it to local Ip(cam).

Im using my own DNS server at home (adGuard) FW policy is set.

This is only my experiment.

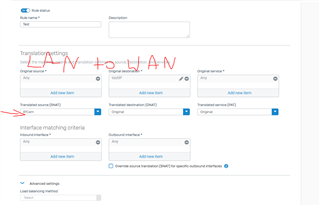

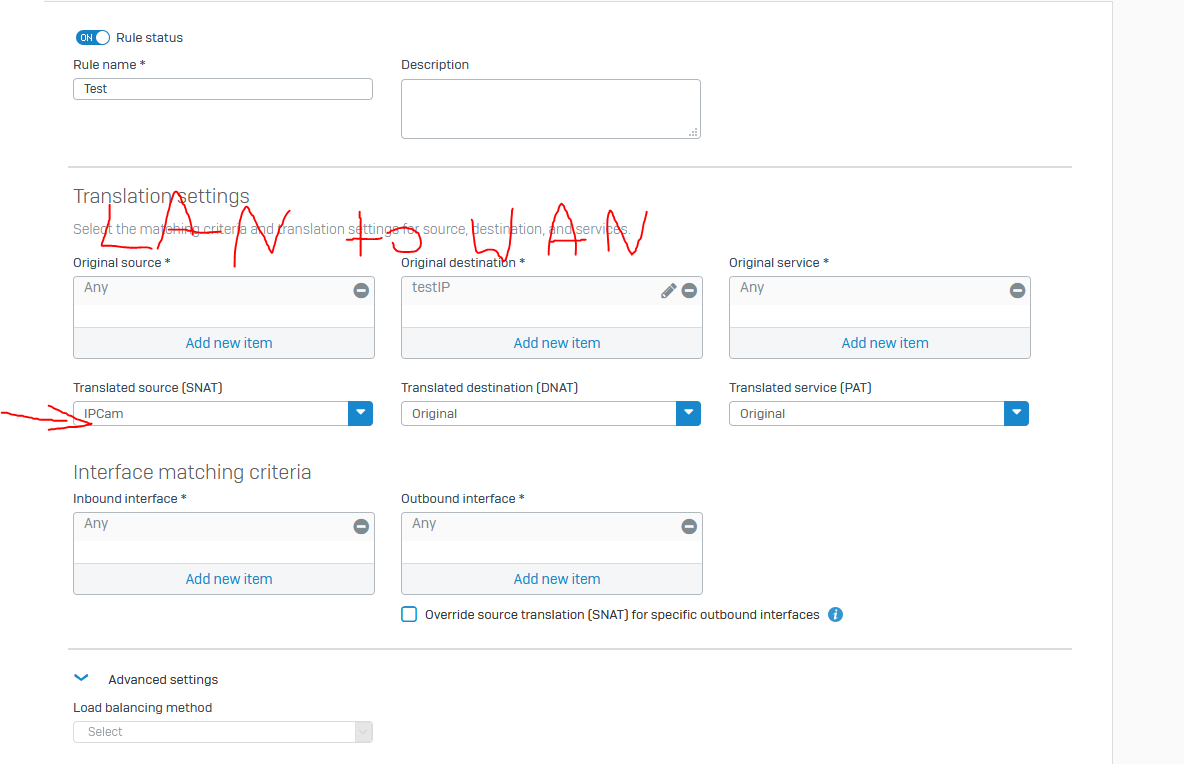

I dont know if im understand the gui implementatin but ive tryied sth like this

Can you please advice sth ? how to achive it in NAT GUI ?

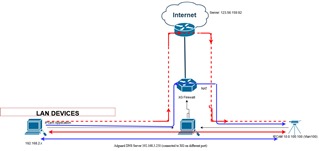

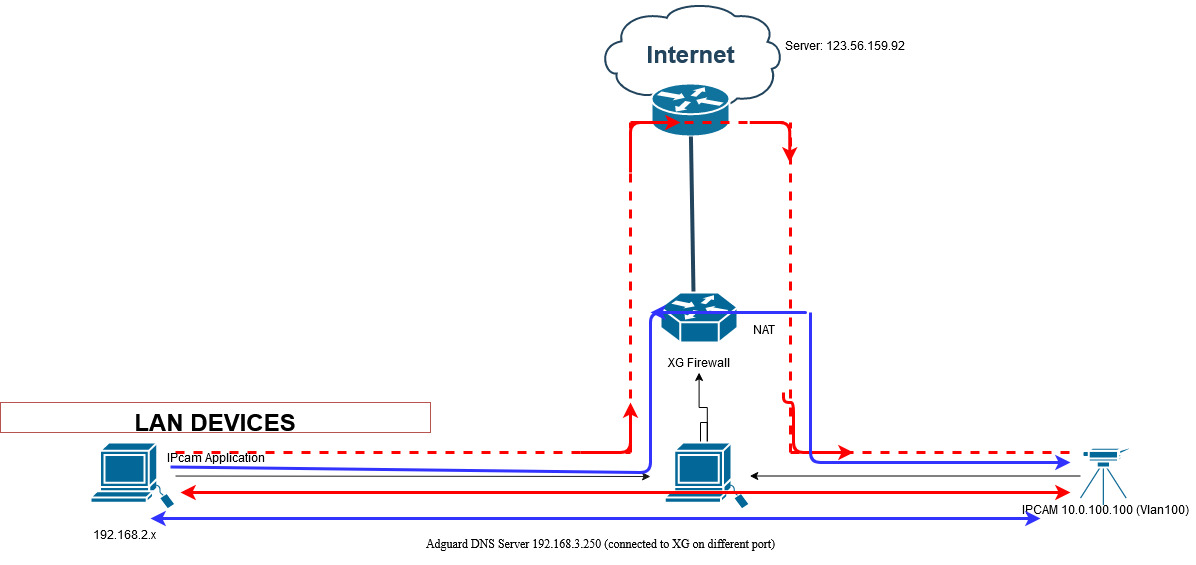

So this is how it works

RED color is how it works right now
BLUE is how i want to be.

I hope this diagram will help, im not good at it :D

This thread was automatically locked due to age.

0 LuCar Toni over 5 years ago

If you would draw a picture for us, maybe we can help you.

Do something like: Client - XG - Server (Internet)

What should happen with the traffic? Because i cannot follow your request.
Cancel
Vote Up 0 Vote Down

Cancel
0 Regex over 5 years ago in reply to LuCar Toni

updated
Cancel
Vote Up 0 Vote Down

Cancel
0 LuCar Toni over 5 years ago in reply to Regex

I am not sure, if this will really work. Did it work with your old solution and NAT? Because this looks like breaking the routing completely.
Cancel
Vote Up 0 Vote Down

Cancel
0 Regex over 5 years ago in reply to LuCar Toni

its just an attempt to see if its going to work. Why im even asking about NAT for particular scenario ? Well i was trying to setup a DNS NAT but no luck at all so maybe i didint understand sth as Sophos implemented on GUI ;)
Cancel
Vote Up 0 Vote Down

Cancel
0 rfcat_vk over 5 years ago in reply to LuCar Toni

Hi LuCar Toni,

what he is trying to do is have all DNS requests that appear on the XG internal interfaces are redirected to his own internal DNS.

Ian
Cancel
Vote Up 0 Vote Down

Cancel
0 Regex over 5 years ago in reply to rfcat_vk

Sure thats tru, but for that scenario ive created a separated topic ;)

In this case im trying to achive if ipcamAPP which is requesting to public ip -> this request NAT to local IP of an IPCam

So i wrote on diagram

IPCAM ->NAT -> LOCALIP CAM. To see if i can bypass public ip server of IPcam vendor. I hope this is explained correctly ^^

Im refering to this yt video:
https://www.youtube.com/watch?v=tohFRoJbsIM

so if this would work with DNS why it shouldnt with some other services ;)
Cancel
Vote Up 0 Vote Down

Cancel
0 Casual_User over 5 years ago in reply to rfcat_vk

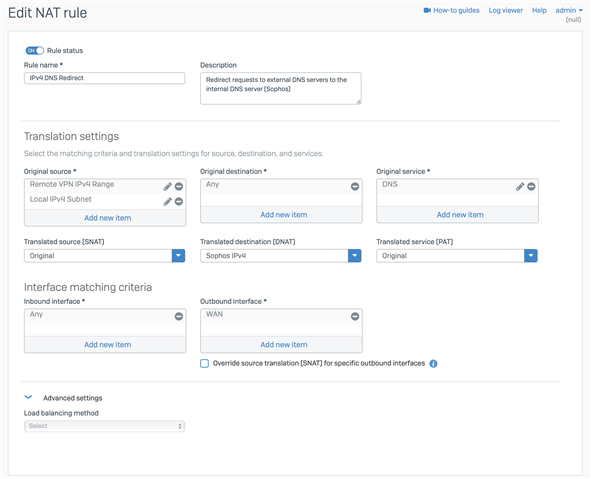

I use the following DNAT to redirect all internal DNS traffic to the XG Firewall which is set up as a DNS server. It works very well. To prevent DNS access to the WAN, my other NAT & firewall rules do not permit any DNS access to the WAN. That way only the DNS servers I specify are used.

In the sample below, you can simply change the Translated destination (DNAT) to the IP you want to act as your DNS server.
Cancel
Vote Up 0 Vote Down

Cancel
0 Regex over 5 years ago in reply to Casual_User

I'll check it right away ! If im good remember i have been doing it like you have and it didint work, ill check again
Cancel
Vote Up 0 Vote Down

Cancel
0 Regex over 5 years ago in reply to Casual_User

So now my rules looks this:

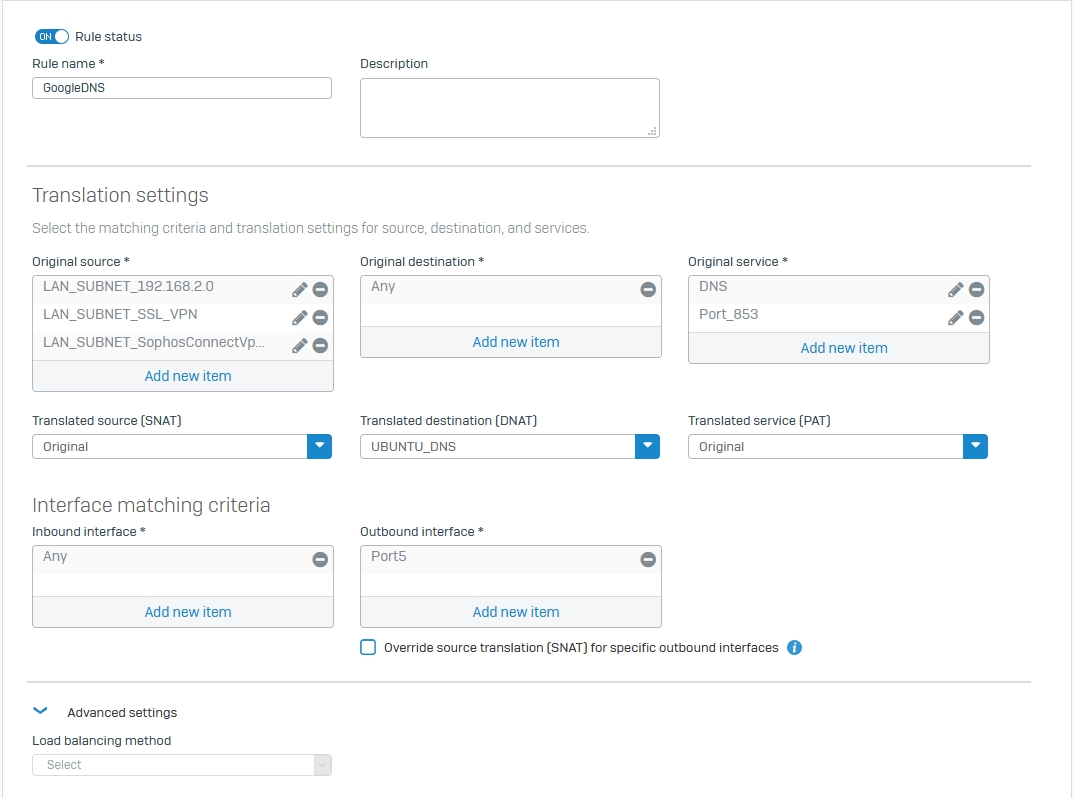

NAT:

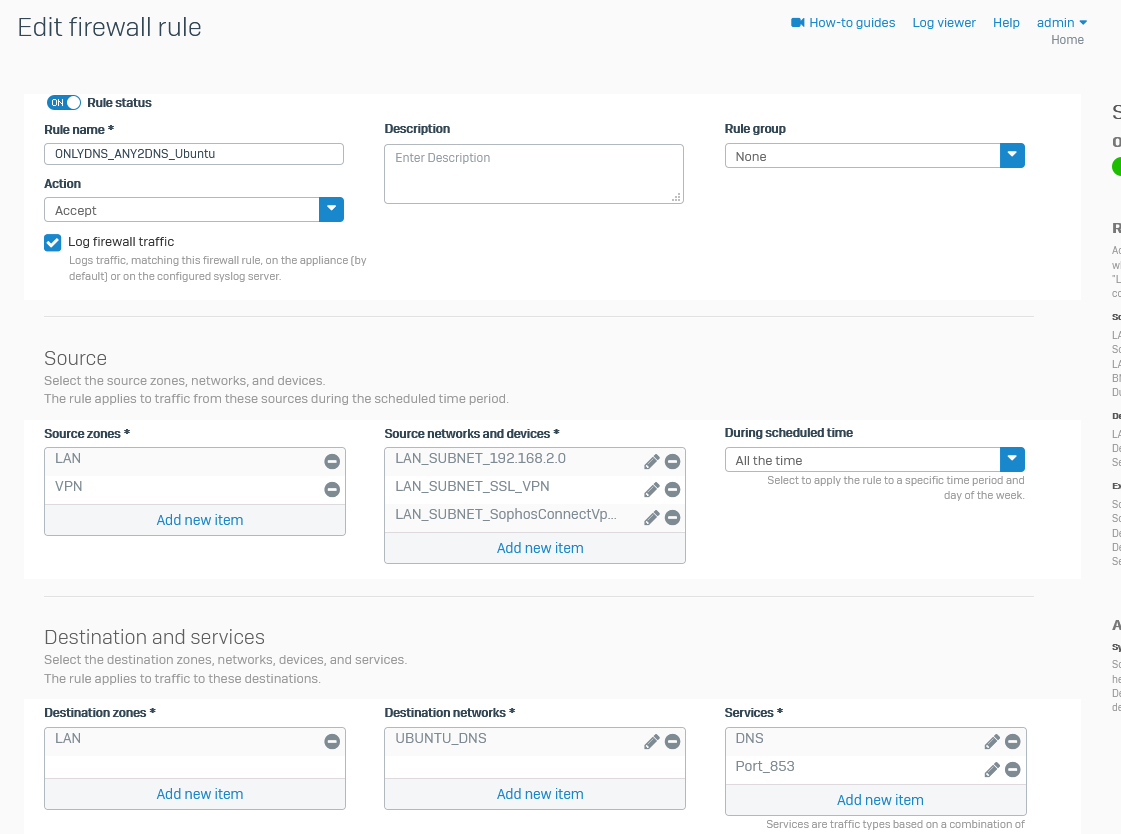

FW rule accessing local DNS:

Im using DoH and DNSoverTLS
Cancel
Vote Up 0 Vote Down

Cancel
0 Regex over 5 years ago in reply to Casual_User

So i did some testing like:

i have set a static DNS ips on a laptop and im trying to reach some web pages - unfortunately "cant find page"

as i understand the requests should be translated to my local dns so i shloud be able to browser internet, but im not ;)

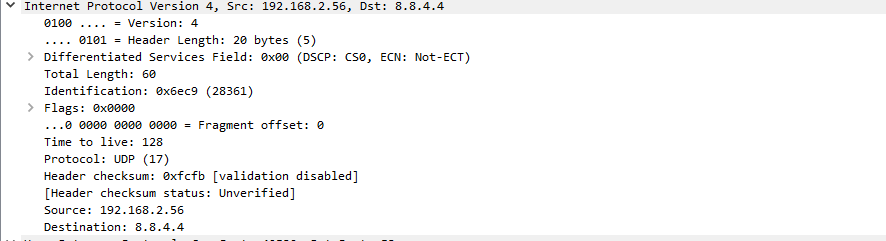

Wireshark results of an query

maybe there is sth messed-up in NAT rule. I wanna admit that MY DNS server isnt in the same LAN - its on the separeted interface plugged to XG, different subnet ;)
