XG internet traffic is blocked - FW rule 0

Hi Guys.

I am a fresh user of XG FW Home.

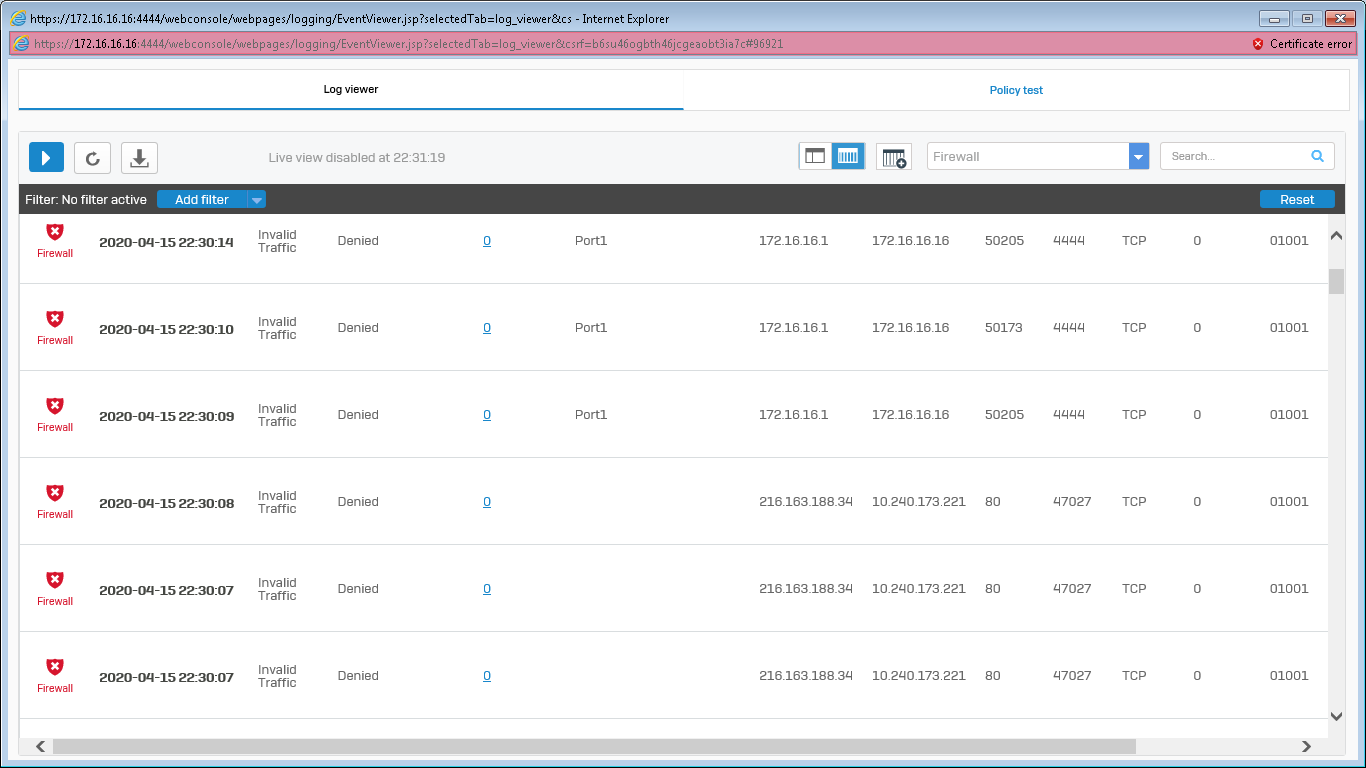

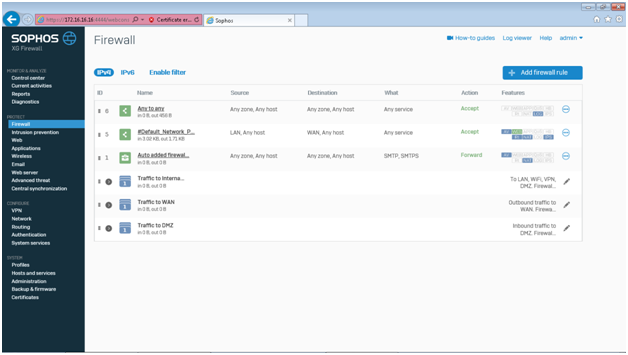

I've been working on the XG configuration for several days and eventually got stuck on Firewall Rule 0 that blocks Internet traffic.

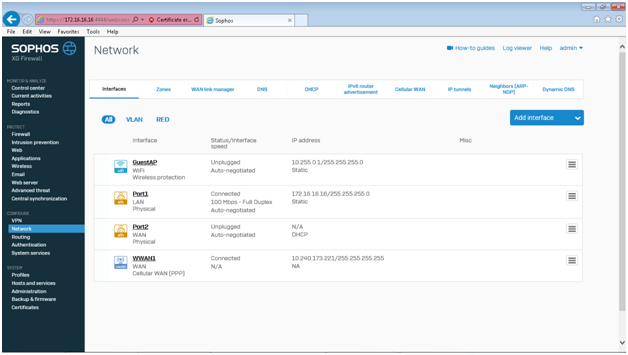

I have configured the USB modem as the primary WAN. I can ping 8.8.8.8, but the traffic is blocked. What did I missed?

Details below. Please support.

This thread was automatically locked due to age.

Parents

0 Zbigniew Domaradzki over 5 years ago

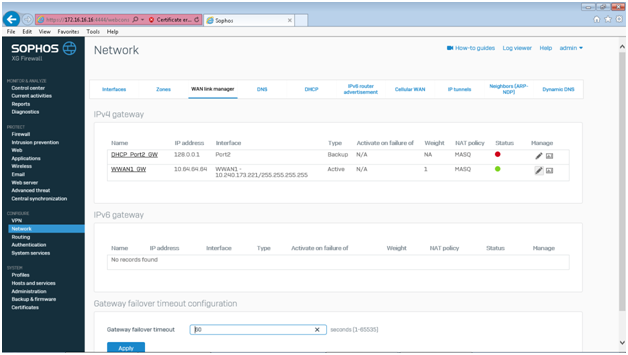

FW think that internet connection is on Port2 WAN. How to change it to WWAN?
Cancel
Vote Up 0 Vote Down

Cancel
0 rfcat_vk over 5 years ago in reply to Zbigniew Domaradzki

Hi,

you can ignore Rule 0 issues as well there's a bug in the rule so you need to create Source LAN, WAN, WWAN, DMZ, WIFI, VPN -> any -> destination LAN, WAN, WIFI, WWAN, VPN, DMZ -> any --> drop.

In your NAT rule you change the destination to WWAN.

Ian

XG115W - v19.5.1 mr-1 - Home

If a post solves your question please use the 'Verify Answer' button.
Cancel
Vote Up 0 Vote Down

Cancel

Reply

0 rfcat_vk over 5 years ago in reply to Zbigniew Domaradzki

Hi,

you can ignore Rule 0 issues as well there's a bug in the rule so you need to create Source LAN, WAN, WWAN, DMZ, WIFI, VPN -> any -> destination LAN, WAN, WIFI, WWAN, VPN, DMZ -> any --> drop.

In your NAT rule you change the destination to WWAN.

Ian

XG115W - v19.5.1 mr-1 - Home

If a post solves your question please use the 'Verify Answer' button.
