XG routing not working a vlan interface

Amr Kabary

Hi all ,

i have 2 vlans in my network on a cisco  switch vlan 1 and vlan 2, each assigned on access ports on the switch

i am doing router on a stick model , link between switch and XG is trunk (trunk port on cisco)

on XG , there is a physical lan interface for vlan 1 192.168.1.254 , then a vlan interface on it in vlan 4  192.168.4.254

now ican ping both interfaces from vlan 1
XG can ping vlan 4
but no routing between vlan 1 and 4

rule is allow any any on xg

trace route from vlan 1 to vlan 4 , the xg routes vlan 4 traffic to the wan interface

can any one help ??



This thread was automatically locked due to age.
Parents Reply
  • 0 in reply to Amr Kabary

    Hi

    can you generate the PING and check the packet request on XG ?

    You may check the traffic or packet request via below CLI command:

    console > tcpdump 'host X.X.X.X.

    where X.X.X.X is the destination machine IP

    Please share the result here.

    Also collect below command output.

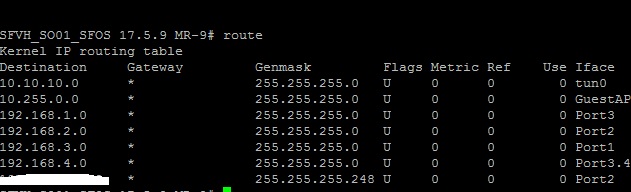

    console> sy dia utilities netconf route list
