Problems with VLAN guest WiFi (Unifi)

AdminofClouds over 5 years ago

Hello all,

I'm having issues getting guest Wifi working on a VLAN. Let me post my setup below.

Two Unifi AC LR AP's

Guest WiFi tagged with VLAN 200

Zyxel GS1920-v2

3 ports on VLAN 200, trunked, tagged, fixed

Sophos XG 115

Traffic is allowed from AP's to interface setup with VLAN 200

VLAN interface is allowed out through WAN.

In this current setup, my laptop and phones can get a DHCP lease on the guest VLAN 200 network. But after getting the lease, they can't ping ANYTHING.

I'm baffled, since the lease works, that at least shows the VLAN is somewhat working and tagging correctly. So I think the issue is with the firewall. Have

I missed anything?

This thread was automatically locked due to age.

0 rfcat_vk over 5 years ago

Hi,

please post a copy of your firewall rule.

Ian
Cancel
Vote Up 0 Vote Down

Cancel
0 AdminofClouds over 5 years ago in reply to rfcat_vk

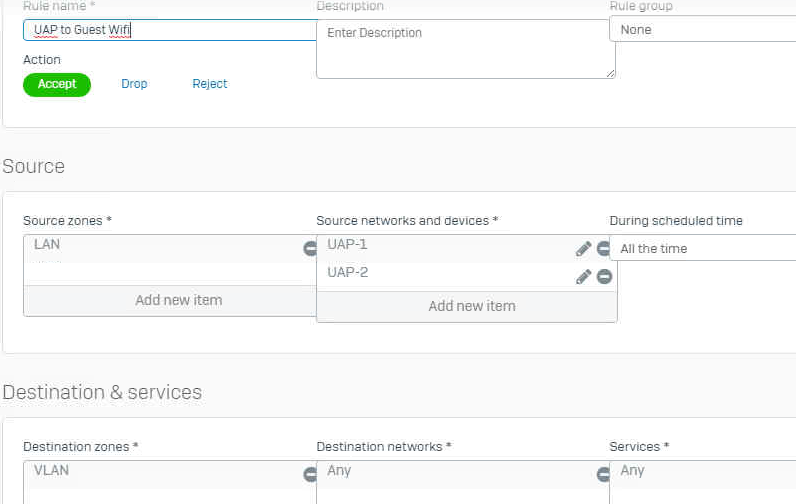

Here you go, LAN AP's to VLAN

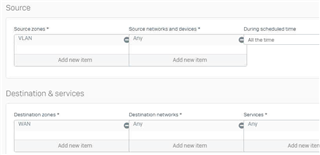

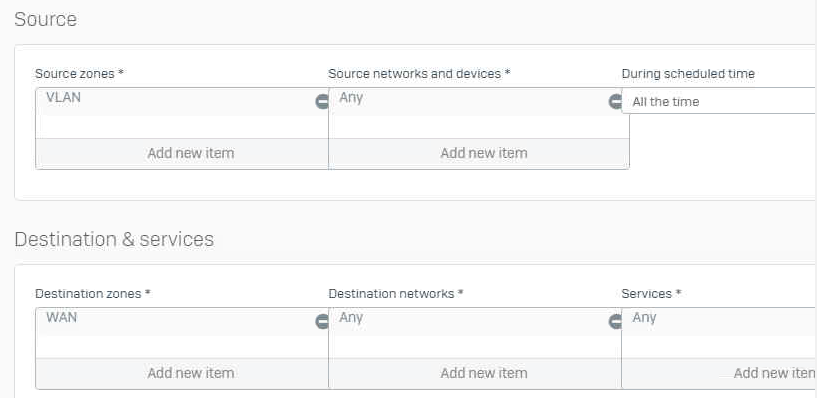

And here's the VLAN to WAN rule

And finally the VLAN interface
Cancel
Vote Up 0 Vote Down

Cancel
0 rfcat_vk over 5 years ago in reply to AdminofClouds

Hi,

you have nothing setup to allow traffic out of the XG.

I don't understand your LAN to VLAN rule, what are you trying to achieve?

Ian
Cancel
Vote Up 0 Vote Down

Cancel
0 AdminofClouds over 5 years ago in reply to rfcat_vk

Nothing allowing out? The firewall VLAN interface, port4.200 is in the VLAN I setup. Which is also in the rules I showed you. Unless I'm misunderstanding something.

There shouldn't be anything else to allow, since the Wifi device and firewall would be in the same zone because of the VLAN interface. The frames are being tagged as they exit the switch ports and reach the firewall.

The LAN to VLAN rule allows the AP's to talk to the firewall.
Cancel
Vote Up 0 Vote Down

Cancel
0 rfcat_vk over 5 years ago in reply to AdminofClouds

Hi,

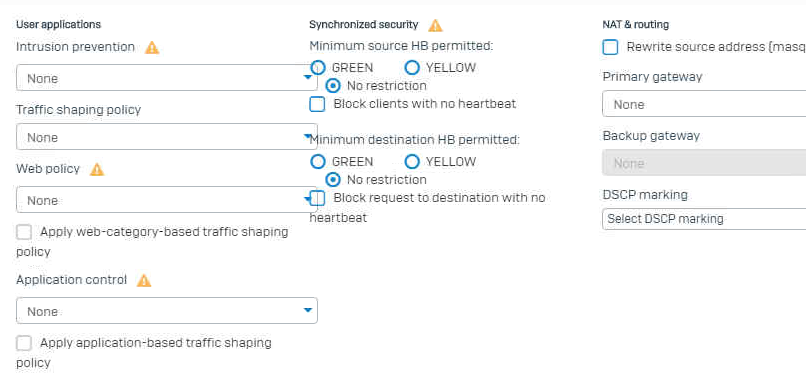

you will need to provide a masq as part of your allow out rule.

ian

You seem to be doing this the hard way. Why do you want the wifi on a VLAN when you are connecting the VLAN to the LAN with a general firewall rule, what about local wifi users?
Cancel
Vote Up 0 Vote Down

Cancel
0 AdminofClouds over 5 years ago in reply to rfcat_vk

Okay I see where I missed that now. I'll be sure to add the masq to the rule. The purpose of the VLAN and to separate the guest WiFi traffic from the normal corporate traffic.

There's some sensitive traffic that the guests shouldn't have access to. Thus why I was allowing only the AP's to communicate with VLAN zone. Thanks for your help so far.
