Hi Guys,
we have currently the strange behavior.
DHCP Request are not being answered by the XG from a RED location.
VIA tcpdump we can see the requests on the right interface
XG210_WP03_SFOS 17.5.8 MR-8# tcpdump -ni reds1
tcpdump: Starting Packet Dump
15:33:07.981735 reds1, IN: IP 0.0.0.0.68 > 255.255.255.255.67: BOOTP/DHCP, Request from XXXXXXX:62:97, length 300
15:33:12.981487 reds1, IN: IP 0.0.0.0.68 > 255.255.255.255.67: BOOTP/DHCP, Request from XXXXXXX:62:97, length 300
15:33:17.722272 reds1, IN: IP 0.0.0.0.68 > 255.255.255.255.67: BOOTP/DHCP, Request from XXXXXXX:62:97, length 300
15:33:26.464993 reds1, IN: IP 0.0.0.0.68 > 255.255.255.255.67: BOOTP/DHCP, Request from XXXXXXX:62:97, length 300
15:33:43.337091 reds1, IN: IP 0.0.0.0.68 > 255.255.255.255.67: BOOTP/DHCP, Request from XXXXXXX:62:97, length 300

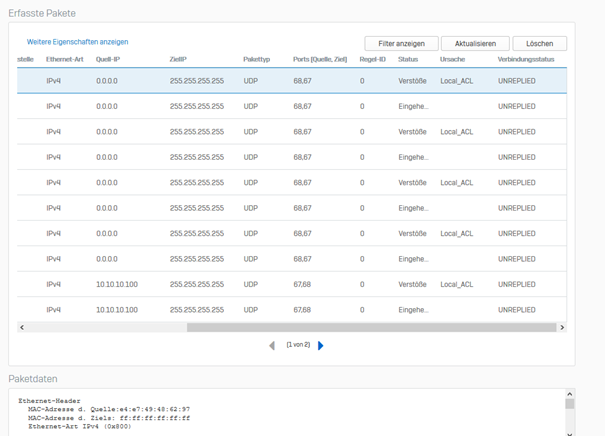

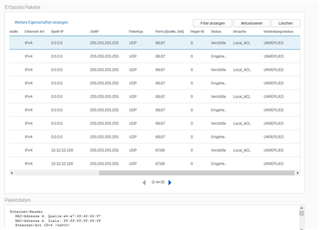

In the Packet Capture i can see that the Traffic is dropped by LOCAL ACL.
When we give the Client behind the red a static IP - it work

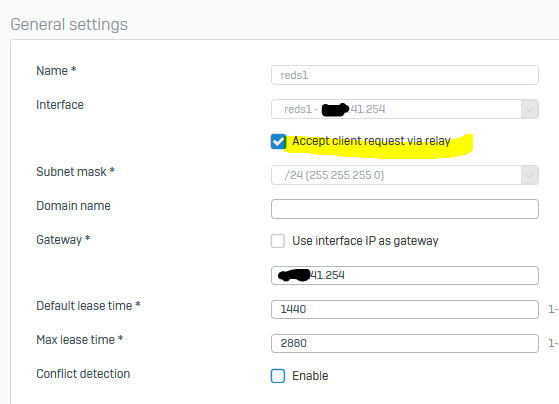

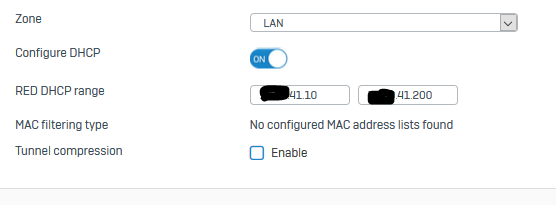

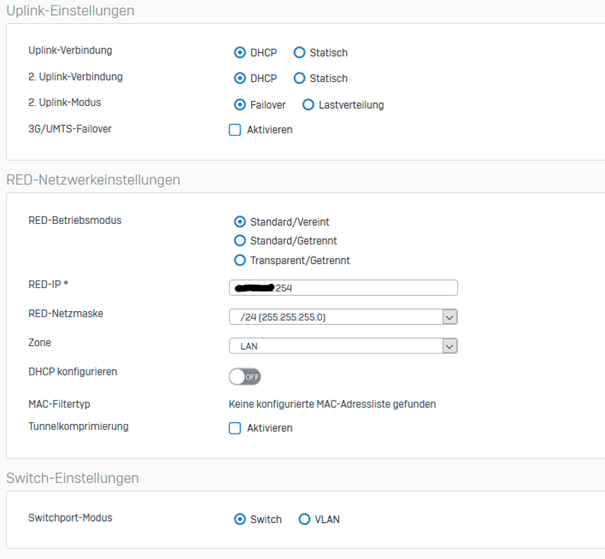

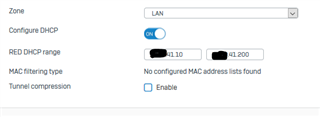

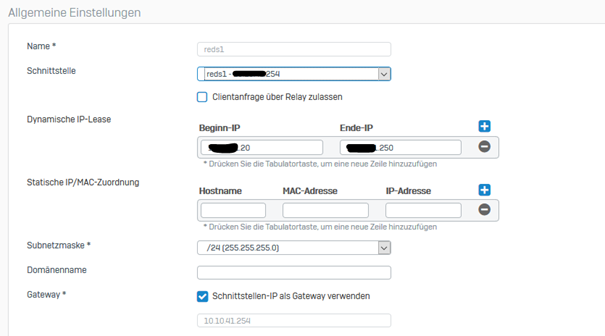

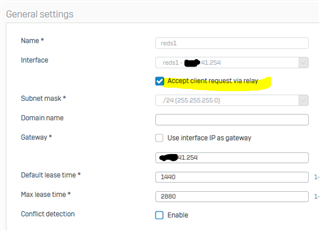

Attached are the RED & DHCP Settings
XG has 17.5.8 and RED firmware 2.0.018

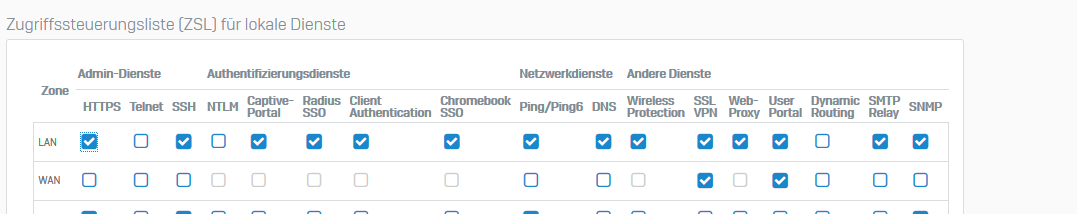

Attached also the Device Access:
Does anyone know how to fix that or why are these Requests dropped ?
I am grateful for every tip!
Kind Regards,
Max
