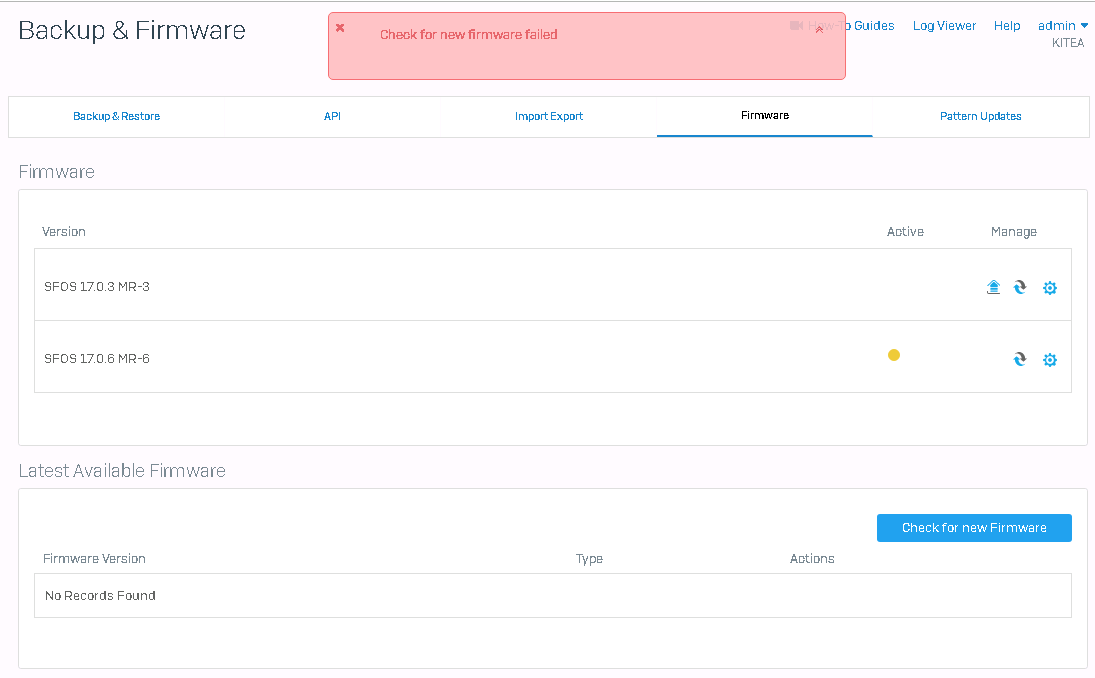

Check for new update failed

Hi,

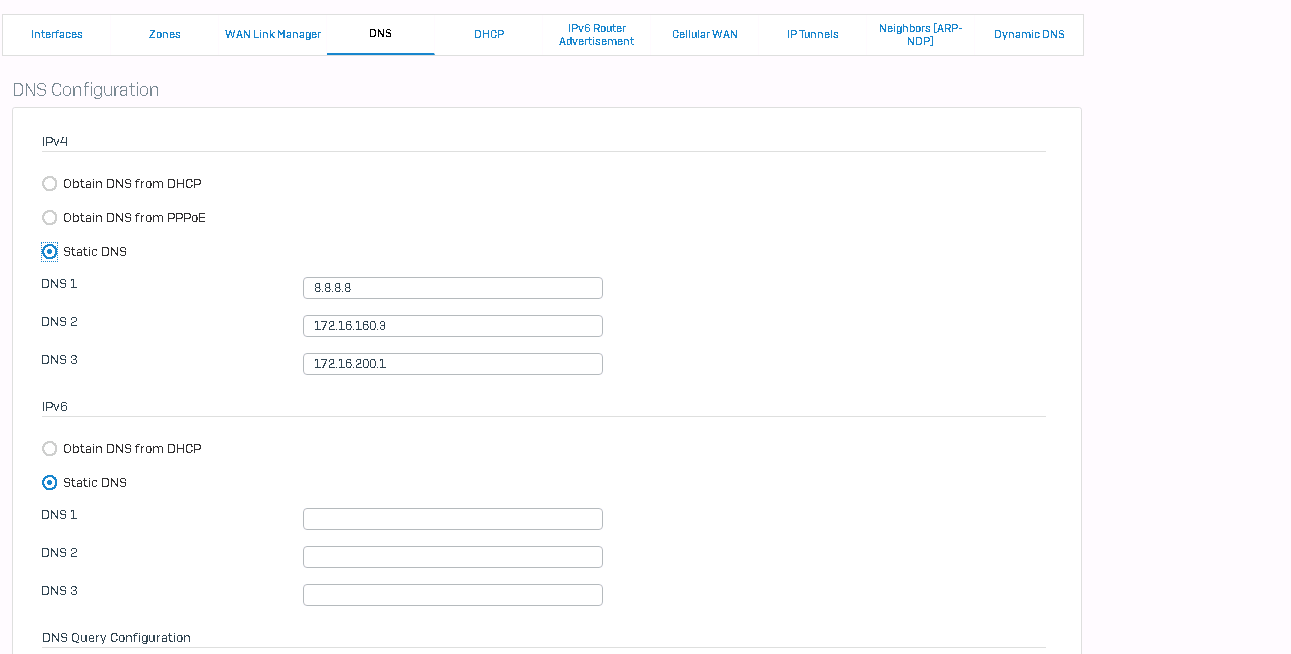

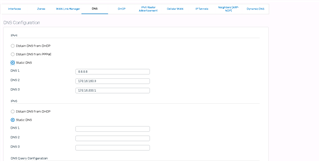

I think you mean port 3 is a Wan not a LAN? Please check your DNS settings to ensure the gateway WAN is providing the DNS entries not your MPLS.

Ian

Yes Port3 is wan connected to internet router

Did you check your DNS settings and what does the router do?

Ian

Hi,

what devices are configured with 172.16.x.x addresses?

Can you reach the 8.8.8.8 server from within your LAN or even the WAN interface?

What functions does your router provide?

Ian

the devices configured with 172.16.x.x addresses are my local dns servers, they could resolve internet domains.

i can reach 8.8.8.8 from any computer in my Lan network.

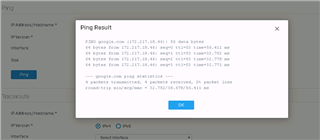

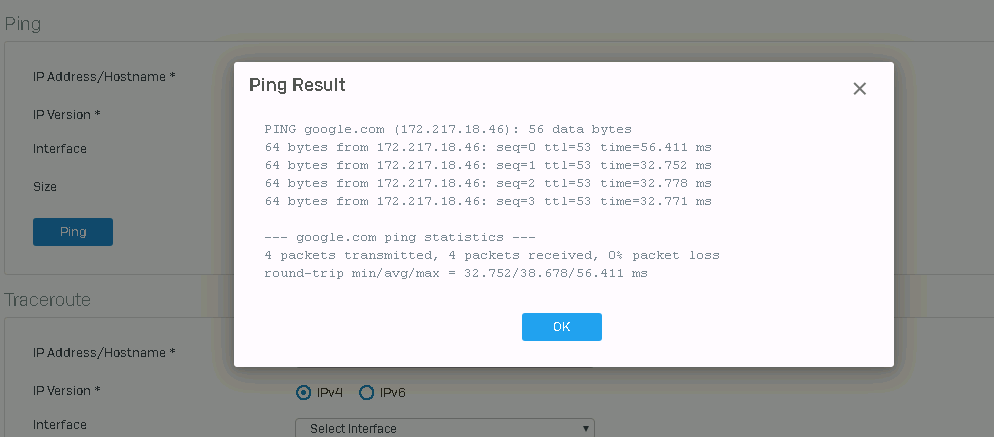

when i tried the ping diagnostic tool in my firewall i got this result:

 port1 (LAN) couldn't reach 8.8.8.8

port2 (MPLS) couldn't reach 8.8.8.8

port3 (INTERNET) could reach 8.8.8.8 and the ping works well

i check the u2d.log file and i found something wired at this line : DEBUG     Jun 05 23:29:31 [14111]: Added new server : Host - 172.16.200.230, Port - 8443

XG105_XN02_SFOS 17.0.6 MR-6# cat u2d.log
DEBUG     Jun 05 23:29:31 [14111]: --serial = C1403A74HWXP4F0
DEBUG     Jun 05 23:29:31 [14111]: --deviceid = bc40d2944a51354ea4eb12af1644ca27fded
DEBUG     Jun 05 23:29:31 [14111]: --fwversion = 17.0.6.181
DEBUG     Jun 05 23:29:31 [14111]: --productcode = CN
DEBUG     Jun 05 23:29:31 [14111]: --model = XG105
DEBUG     Jun 05 23:29:31 [14111]: --vendor = XN02
DEBUG     Jun 05 23:29:31 [14111]: --sfmversion = SFMV_VM02_17.0.0.99
DEBUG     Jun 05 23:29:31 [14111]: Added new server : Host - 172.16.200.230, Port - 8443
DEBUG     Jun 05 23:29:31 [14111]: Final query string is :
?&serialkey=C1403A74HWXP4F0&deviceid=bc40d2944a51354ea4eb12af1644ca27fded&fwversion=17.0.6.181&productcode=CN&appmodel=XG105&appvendor=XN02&useragent=SF&oem=&sfmversion=SFMV_VM02_17.0.0.99
DEBUG     Jun 05 23:29:46 [14111]: Response code : 0
DEBUG     Jun 05 23:29:46 [14111]: Response body :

DEBUG     Jun 05 23:29:46 [14111]: Response length : 0
ERROR     Jun 05 23:29:46 [14111]: Response not parsed successfully.
ERROR     Jun 05 23:29:46 [14111]: FATAL : Error in parsing response, exiting.
XG105_XN02_SFOS 17.0.6 MR-6#

When you do a tracers from a PC to sophos.community.com what does the report show?

Ian

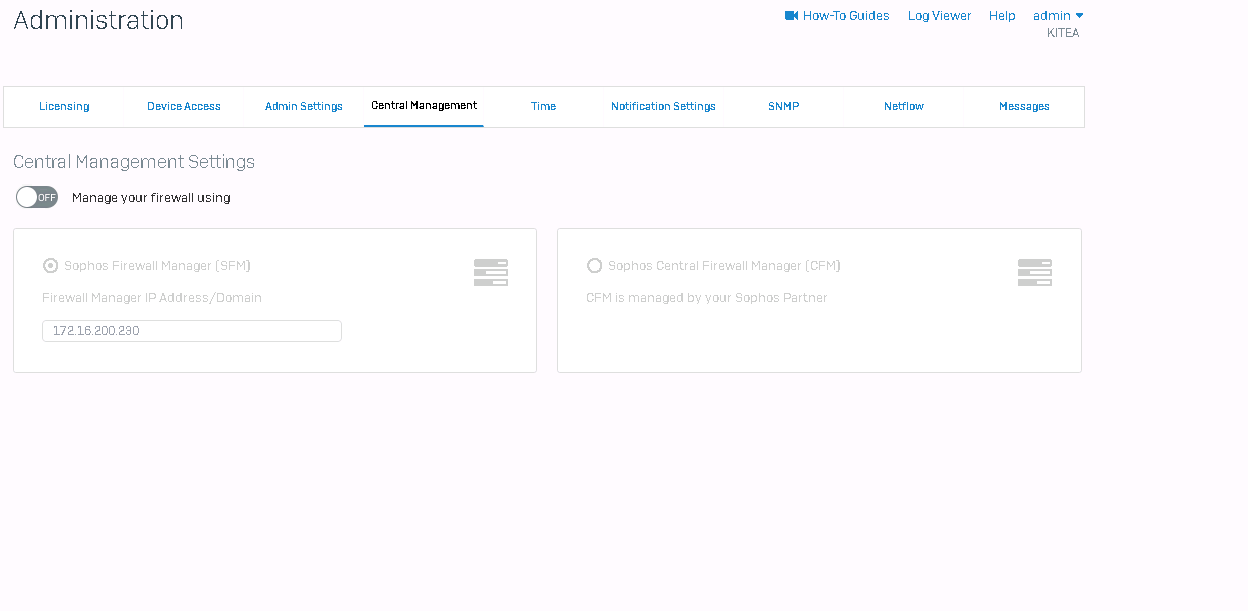

The ex-sysadmin configure a Central Management server.

i think the firewall trying to reach the Central Management who not exist any more.

Sounds like you have solved the issue?

Ian

Yep fixed, Thank you so much :D

Just disable Central Management settings

Yep fixed, Thank you so much :D

Just disable Central Management settings
