Can't route only one subnet. Help please.

Hello guys, I have a big problem here, I need to route the network 192.168.127.0 through gateway 192.168.127.1, and, for all others networks its ok and the XG routes everything ok, but, for this network my LAN can't reach an server in 192.168.127.0/24 subnet.

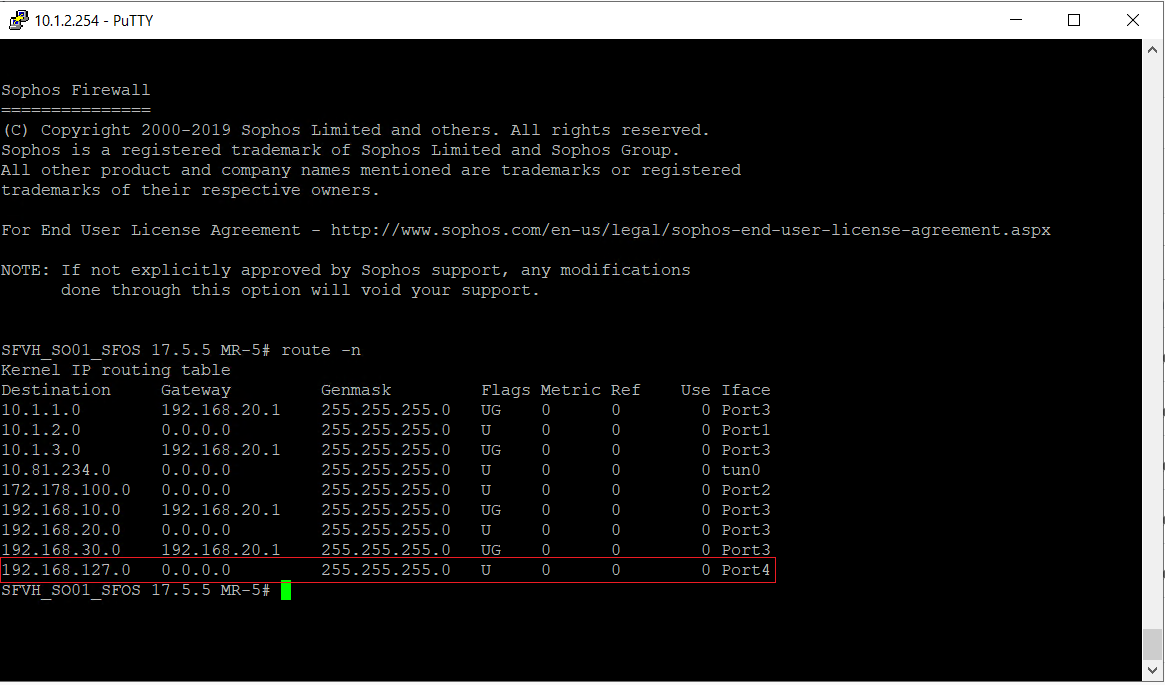

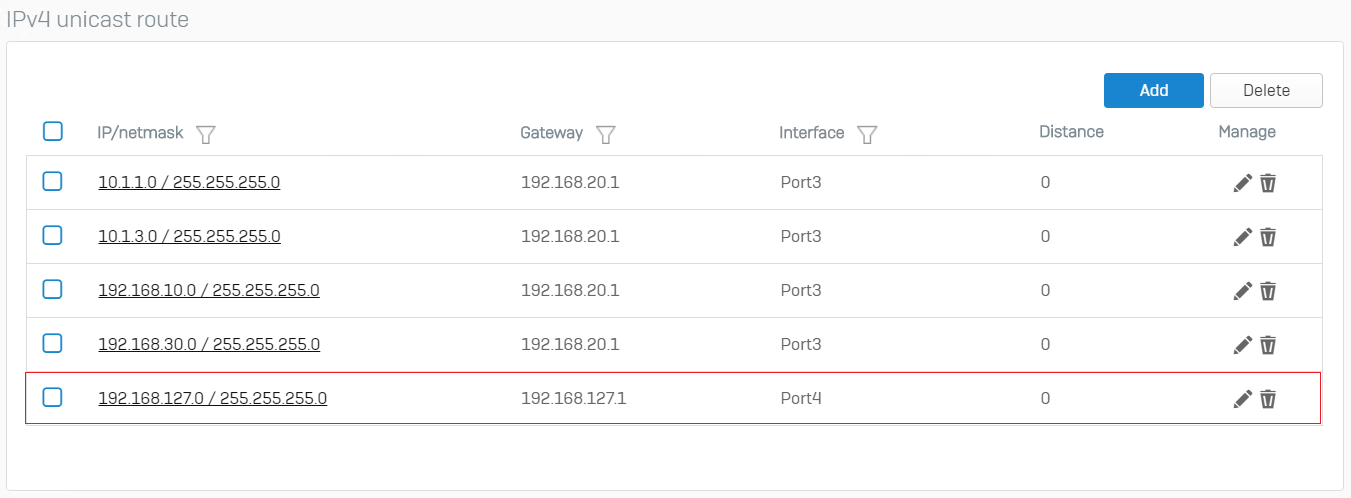

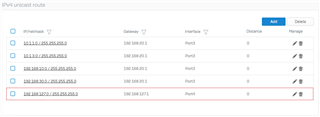

Below the Unicast routing table for my firewall, and then the kernel routing table (where the gateway for 192.168.1270 subnet is missing)

What I need to do to add the correct gateway for 192.168.127.0/24 subnet.
It driving me nuts.

This thread was automatically locked due to age.

Parents

0 rfcat_vk over 6 years ago

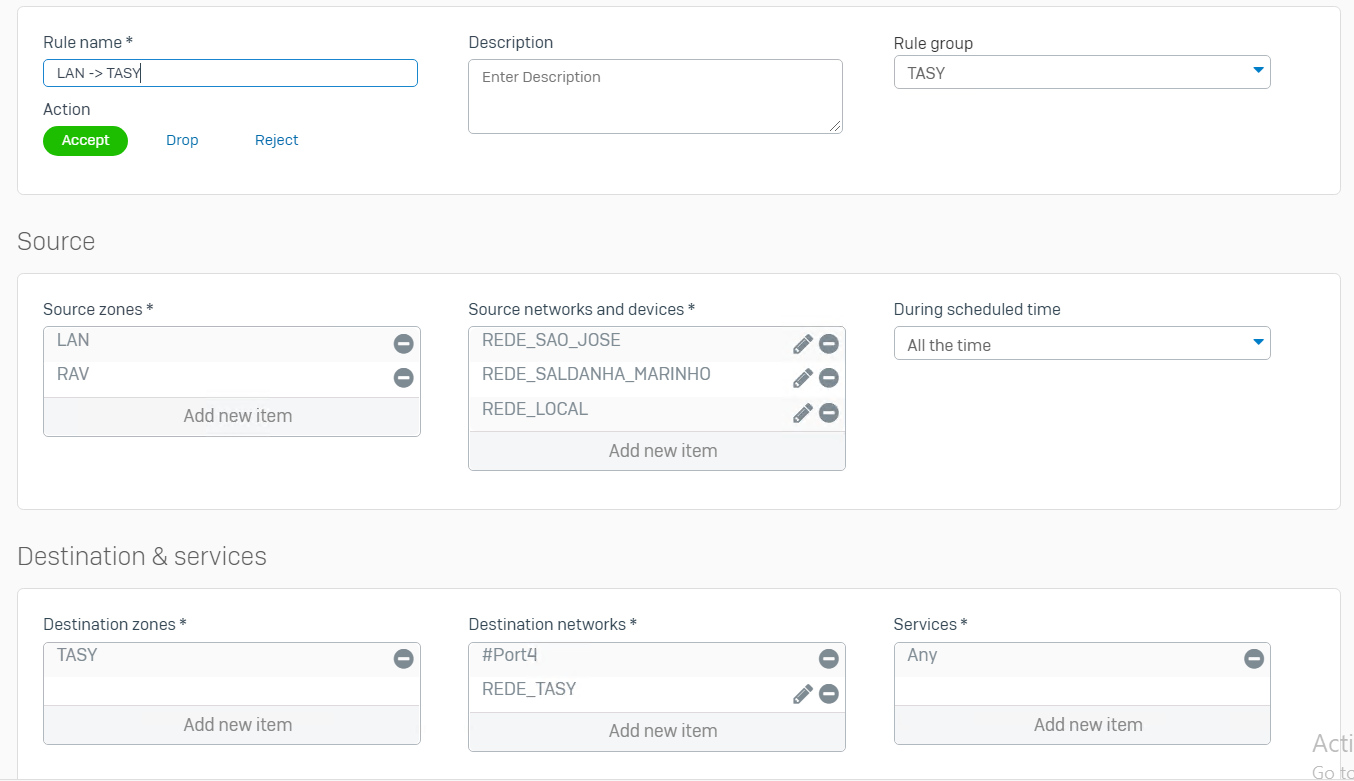

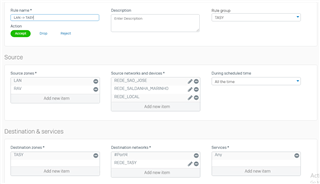

Do you have a firewall rule between the two LAN segments, if no please create one.

Ian
Cancel
Vote Up 0 Vote Down

Cancel
0 Cristiano Lima over 6 years ago in reply to rfcat_vk

Yes, I have the rules for the subnets communications.
And, when I test the Policy it returns ACCEPT, but, I still cannot ping the server in 192.168.127.0 subnet.
Cancel
Vote Up 0 Vote Down

Cancel
0 rfcat_vk over 6 years ago in reply to Cristiano Lima

Hi,

if you run a tracert where does the traffic go?

Ian
Cancel
Vote Up 0 Vote Down

Cancel
0 Cristiano Lima over 6 years ago in reply to rfcat_vk

Stop on the LAN interface with one jump.
Cancel
Vote Up 0 Vote Down

Cancel
0 rfcat_vk over 6 years ago in reply to Cristiano Lima

That would imply your rule is not setup correctly.

Ian
Cancel
Vote Up 0 Vote Down

Cancel
0 Cristiano Lima over 6 years ago in reply to rfcat_vk

Thank you Ian. I really appreciate your help, just because of your comments, I decided to review all the rules of my firewall.
And guess what is the problem? I just forget to enable the NAT option and select the NAT Rule.

My mistake.

Thanks again
Cancel
Vote Up 0 Vote Down

Cancel

Reply

0 Cristiano Lima over 6 years ago in reply to rfcat_vk

Thank you Ian. I really appreciate your help, just because of your comments, I decided to review all the rules of my firewall.
And guess what is the problem? I just forget to enable the NAT option and select the NAT Rule.

My mistake.

Thanks again
